Part name How to do Descriptive Picture
Auger Motor
Fan
1. Disconnect the FAN-AUGER-ASSY Connector.
2. Hold the Hook on the bottom of the FANAUGER-
ASSY and lift it up to make it free from the
Locking Tab.
3. While lifting it up, take the FAN-AUGERASSY out
of the Ice Maker Compartment.
4. Disassembly and Assembly

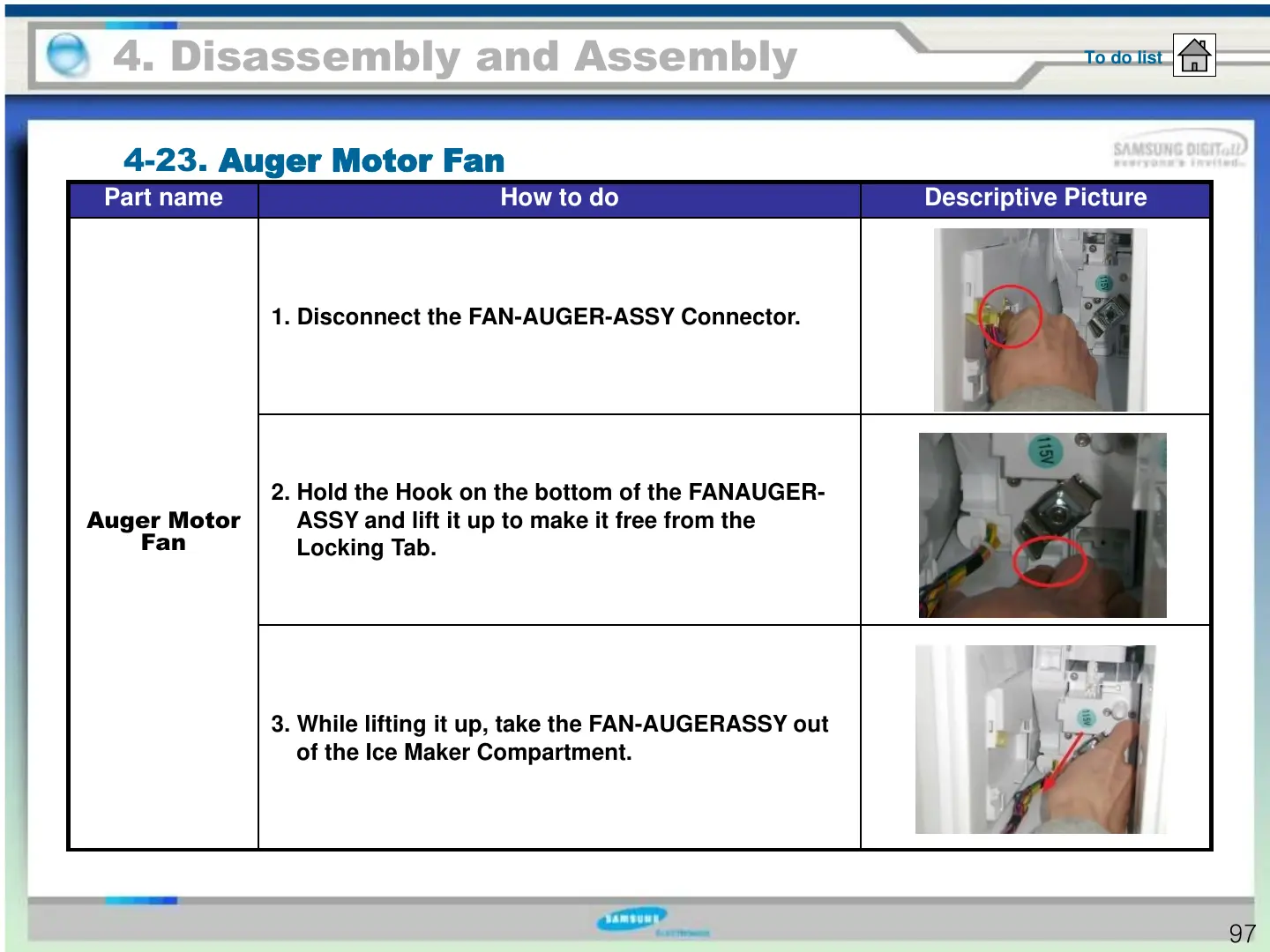

4-23. Auger Motor Fan
To do list
97
