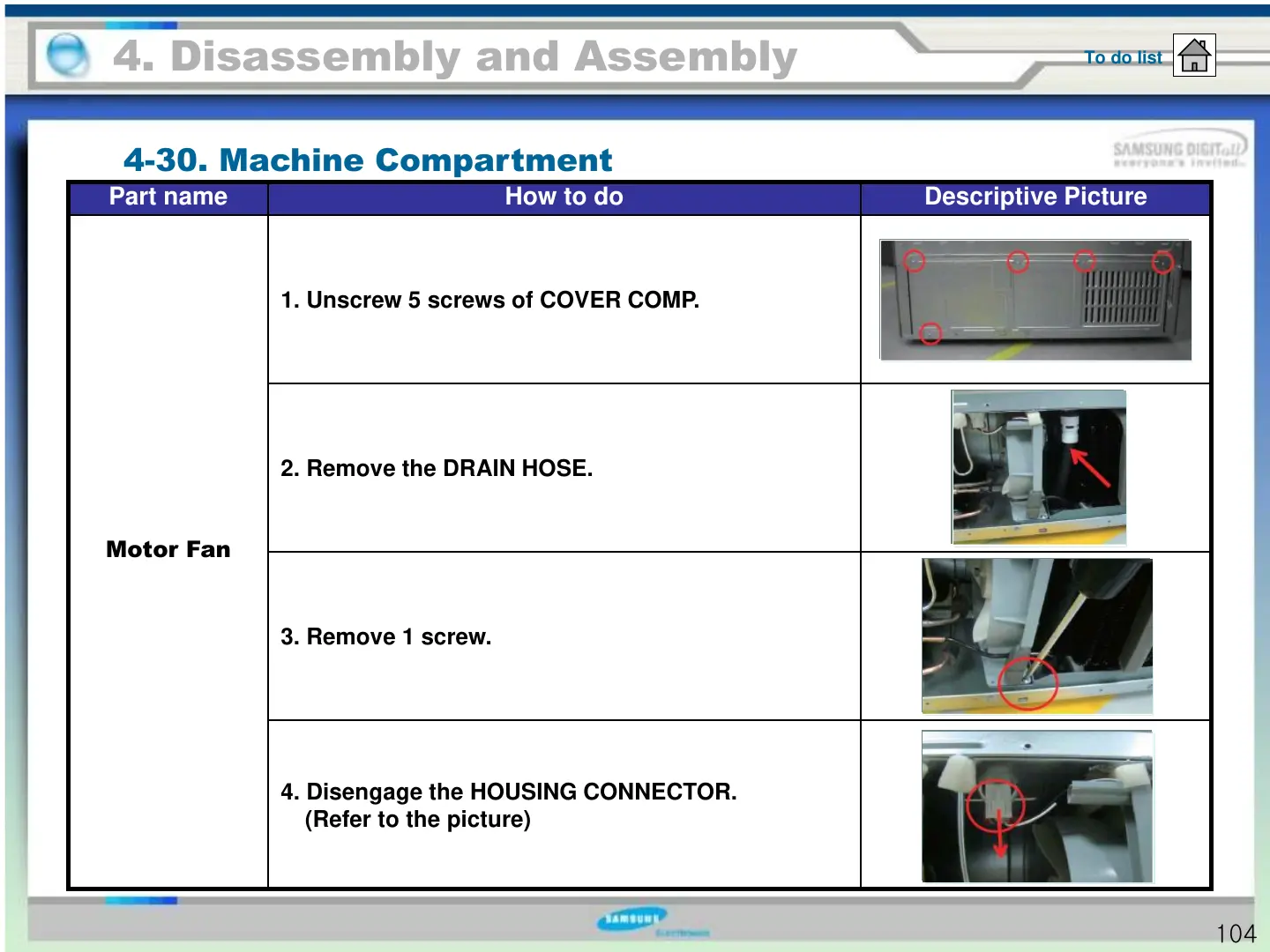

Samsung MKV190CL2B/E01 - Machine Compartment

Part name How to do Descriptive Picture
Motor Fan
1. Unscrew 5 screws of COVER COMP.
2. Remove the DRAIN HOSE.
3. Remove 1 screw.
4. Disengage the HOUSING CONNECTOR.
(Refer to the picture)
4. Disassembly and Assembly
4-30. Machine Compartment
To do list
104
