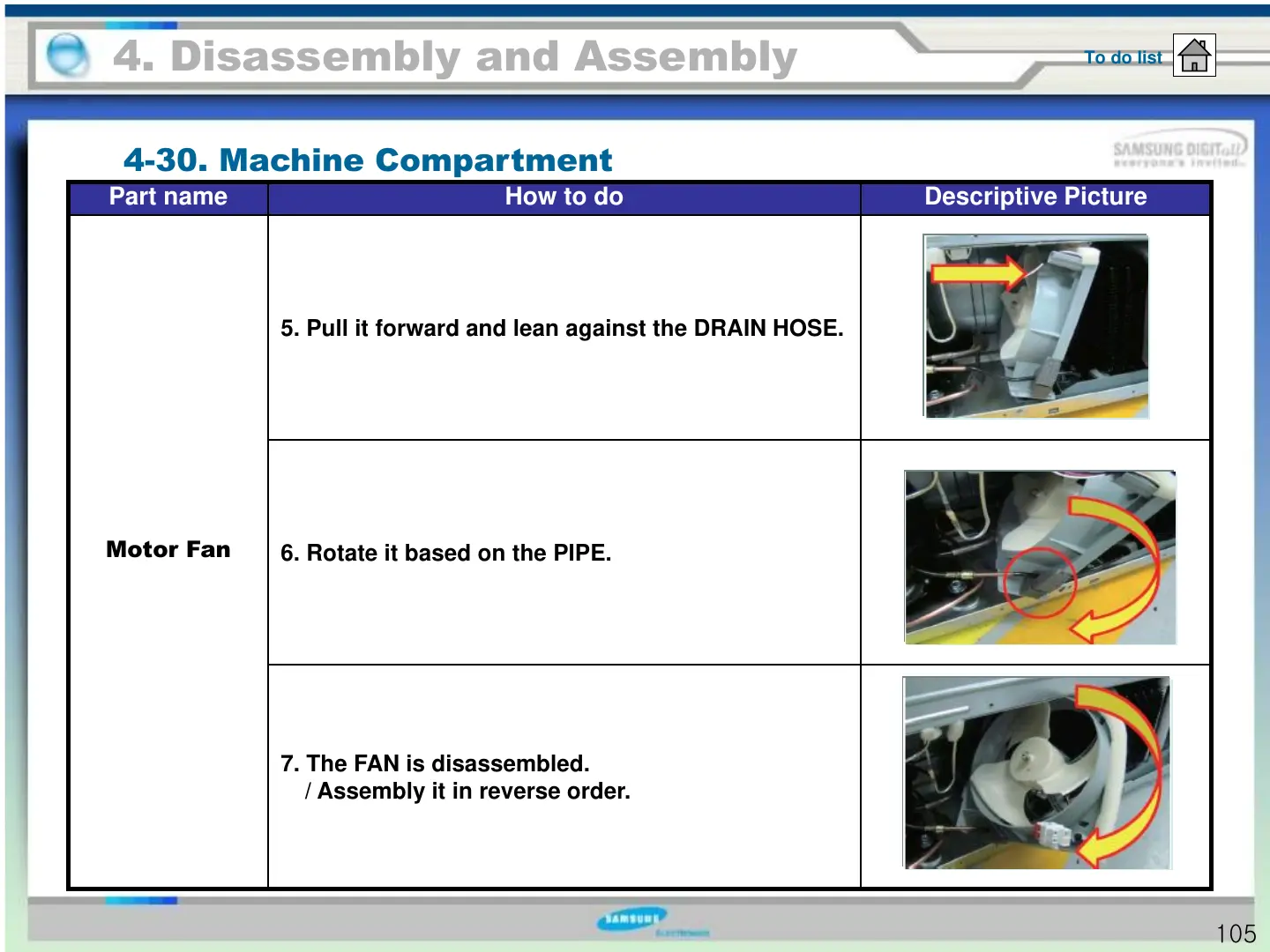

Part name How to do Descriptive Picture
Motor Fan
5. Pull it forward and lean against the DRAIN HOSE.
6. Rotate it based on the PIPE.
7. The FAN is disassembled.
/ Assembly it in reverse order.
4. Disassembly and Assembly
4-30. Machine Compartment
To do list
105
