Part name How to do Descriptive Picture
Evaporator
Cover In
Freezer
1. Remove the freezer door and freezer drawer by
pulling out the drawer and then unscrewing 2
screws.
2. Lift up the evaporator cover.
3. Disengage the 3 housing connectors and remove
the evaporator cover.
4. Disassembly and Assembly

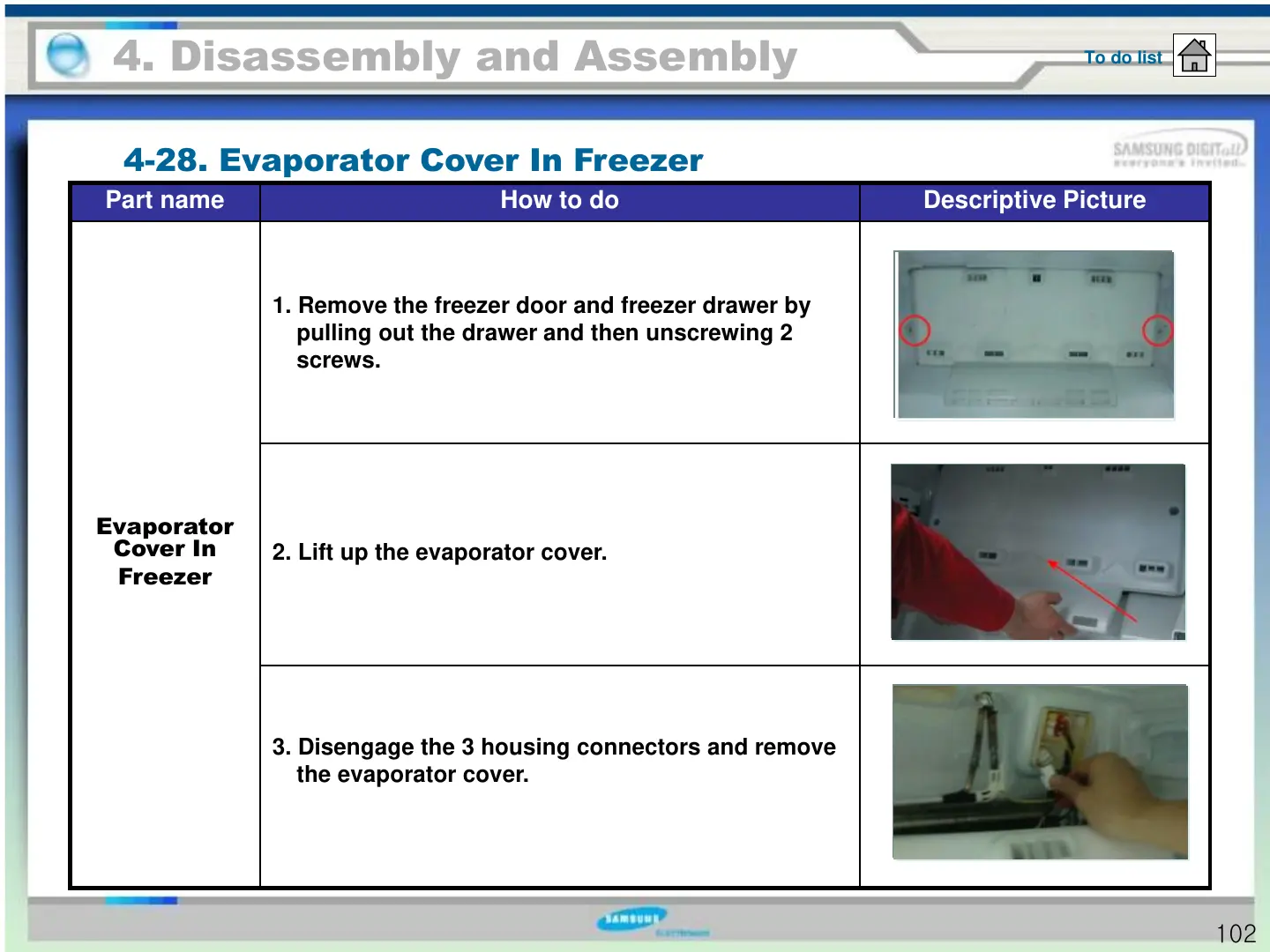

4-28. Evaporator Cover In Freezer
To do list
102
