Samsung MKV190CL2B/E01 - Refrigerant Route in Refrigeration Cycle

Compressor → Condenser → Hot Pipe → Back
Cluster Pipe → Dryer → Capillary Tube →
Refrigerator Evaporator → Pipe Direct Ice →
Freezer Evaporator → Suction Pipe → Compressor

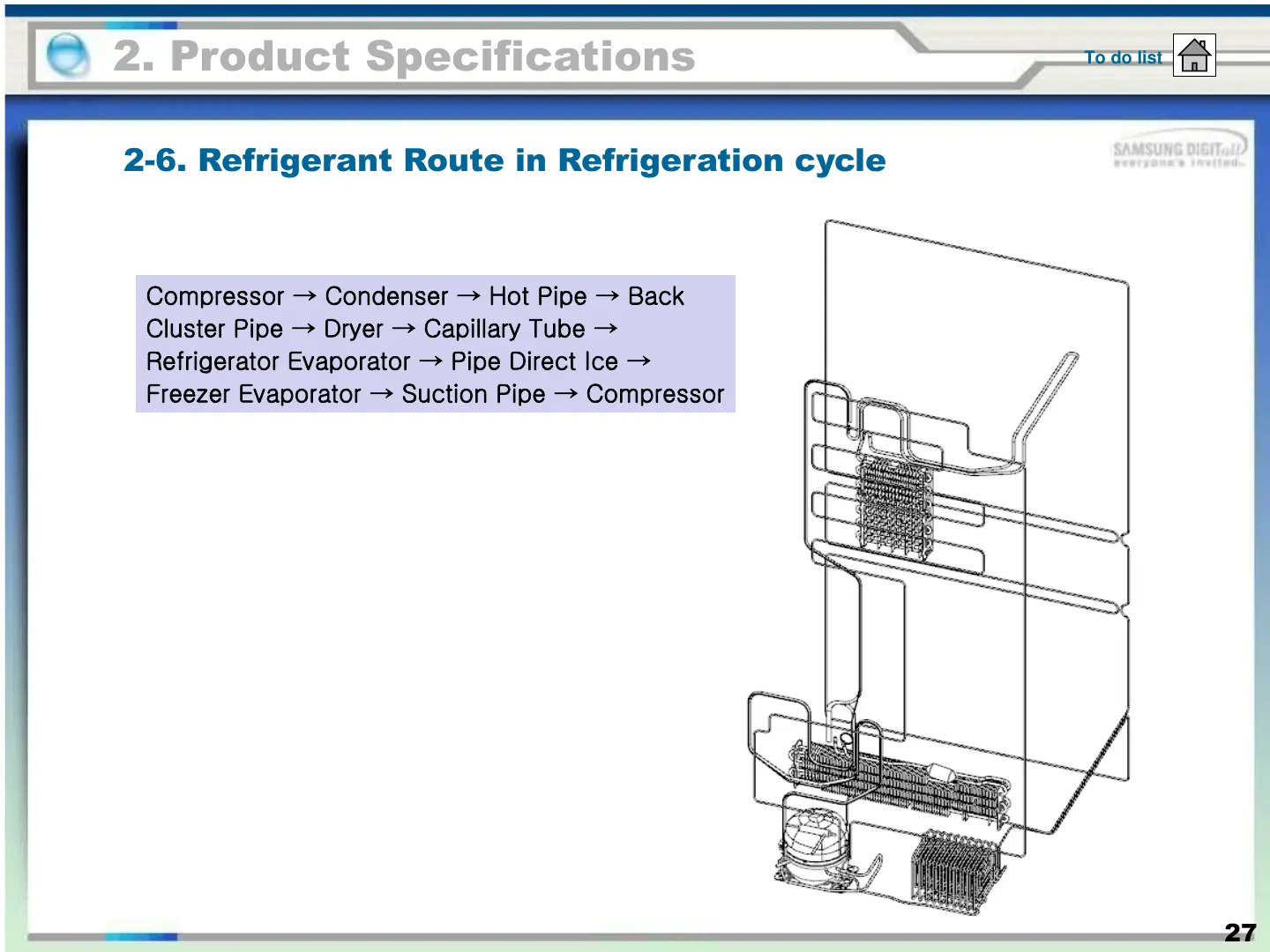

2-6. Refrigerant Route in Refrigeration cycle
