4. Disassembly and Assembly

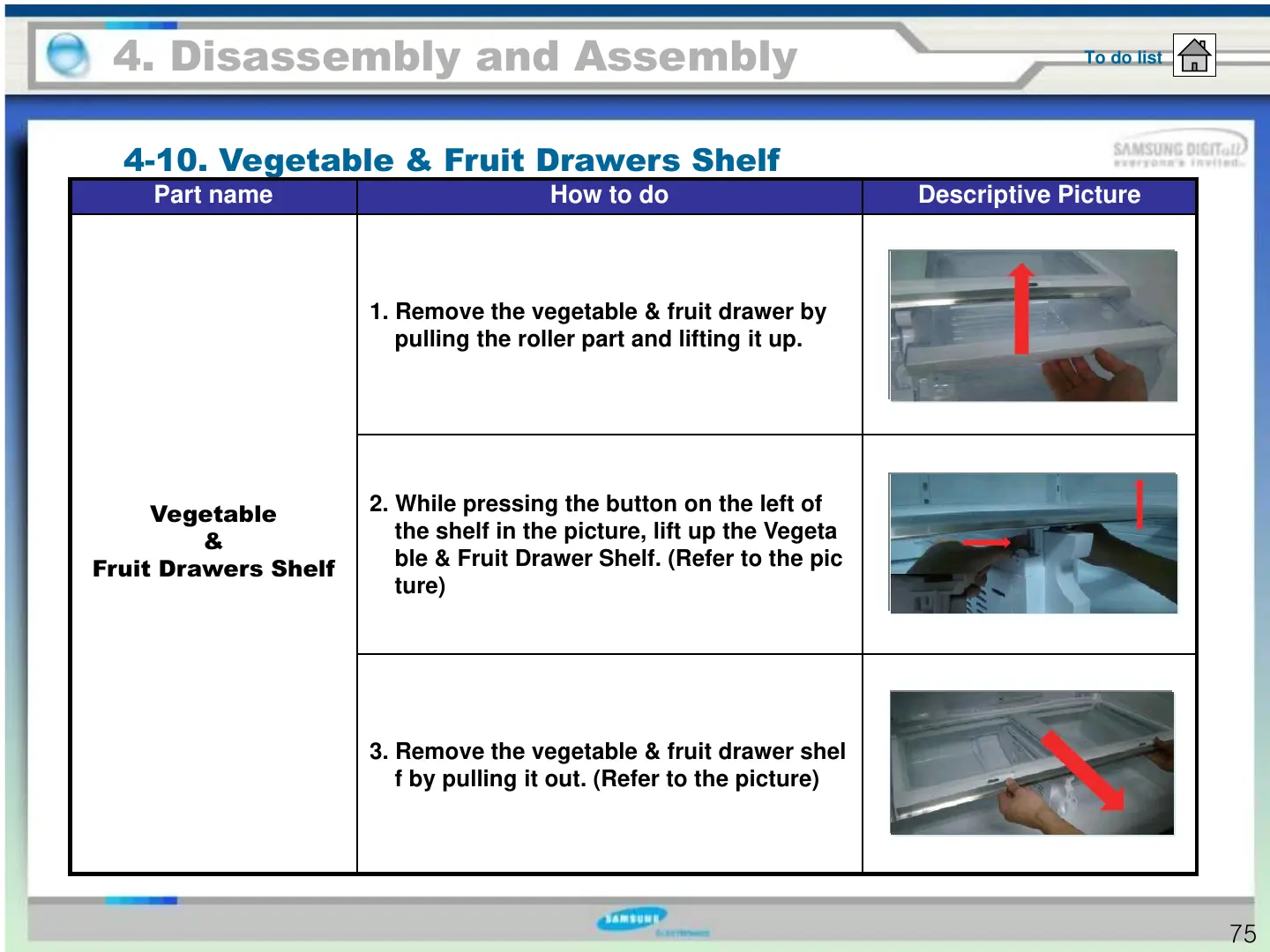

4-10. Vegetable & Fruit Drawers Shelf
To do list
Part name How to do Descriptive Picture
Vegetable
&
Fruit Drawers Shelf
1. Remove the vegetable & fruit drawer by
pulling the roller part and lifting it up.
2. While pressing the button on the left of
the shelf in the picture, lift up the Vegeta
ble & Fruit Drawer Shelf. (Refer to the pic
ture)
3. Remove the vegetable & fruit drawer shel
f by pulling it out. (Refer to the picture)
75
