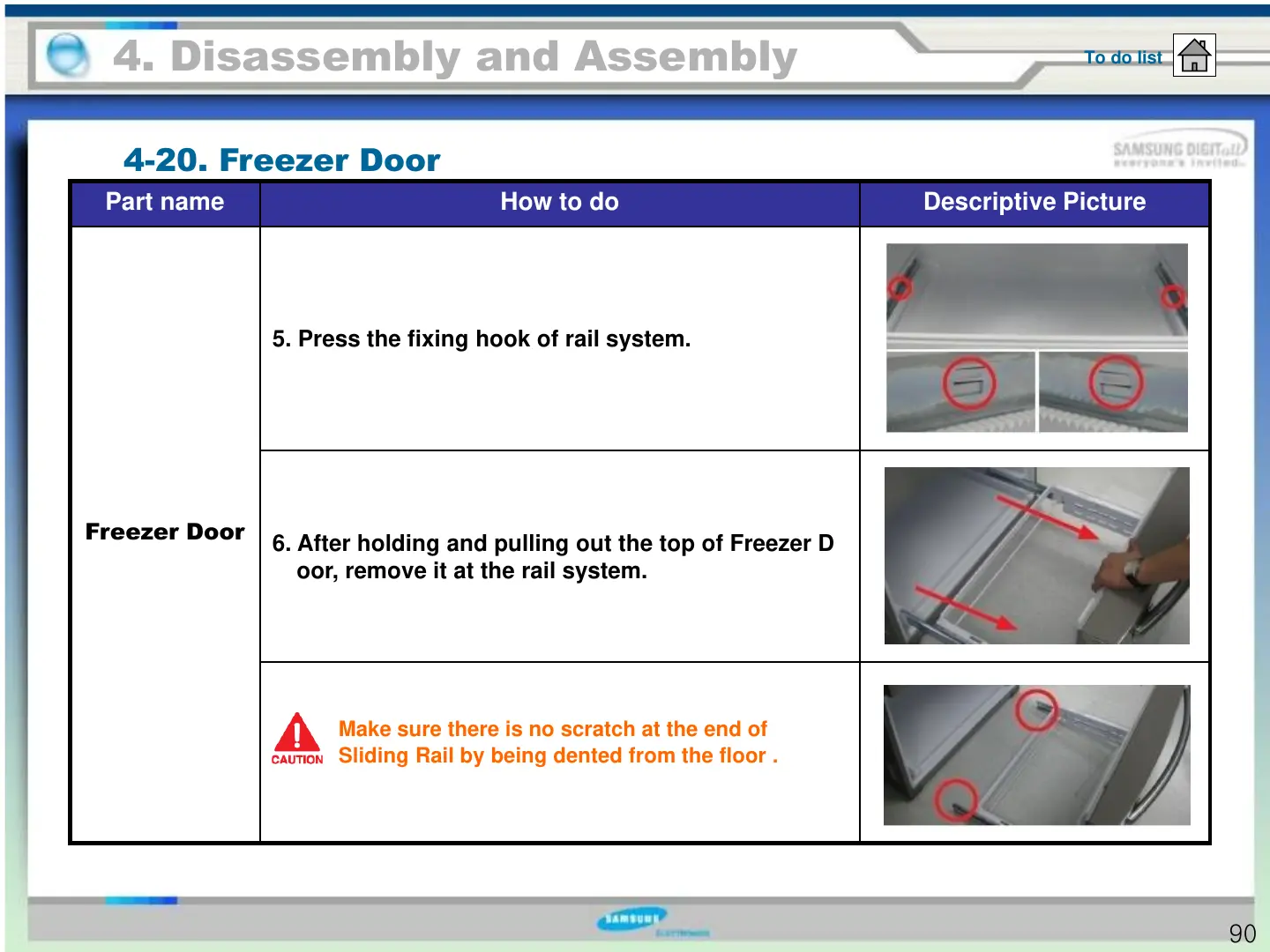

Part name How to do Descriptive Picture
Freezer Door
5. Press the fixing hook of rail system.
6. After holding and pulling out the top of Freezer D
oor, remove it at the rail system.
4. Disassembly and Assembly
4-20. Freezer Door
To do list
Make sure there is no scratch at the end of
Sliding Rail by being dented from the floor .
90
