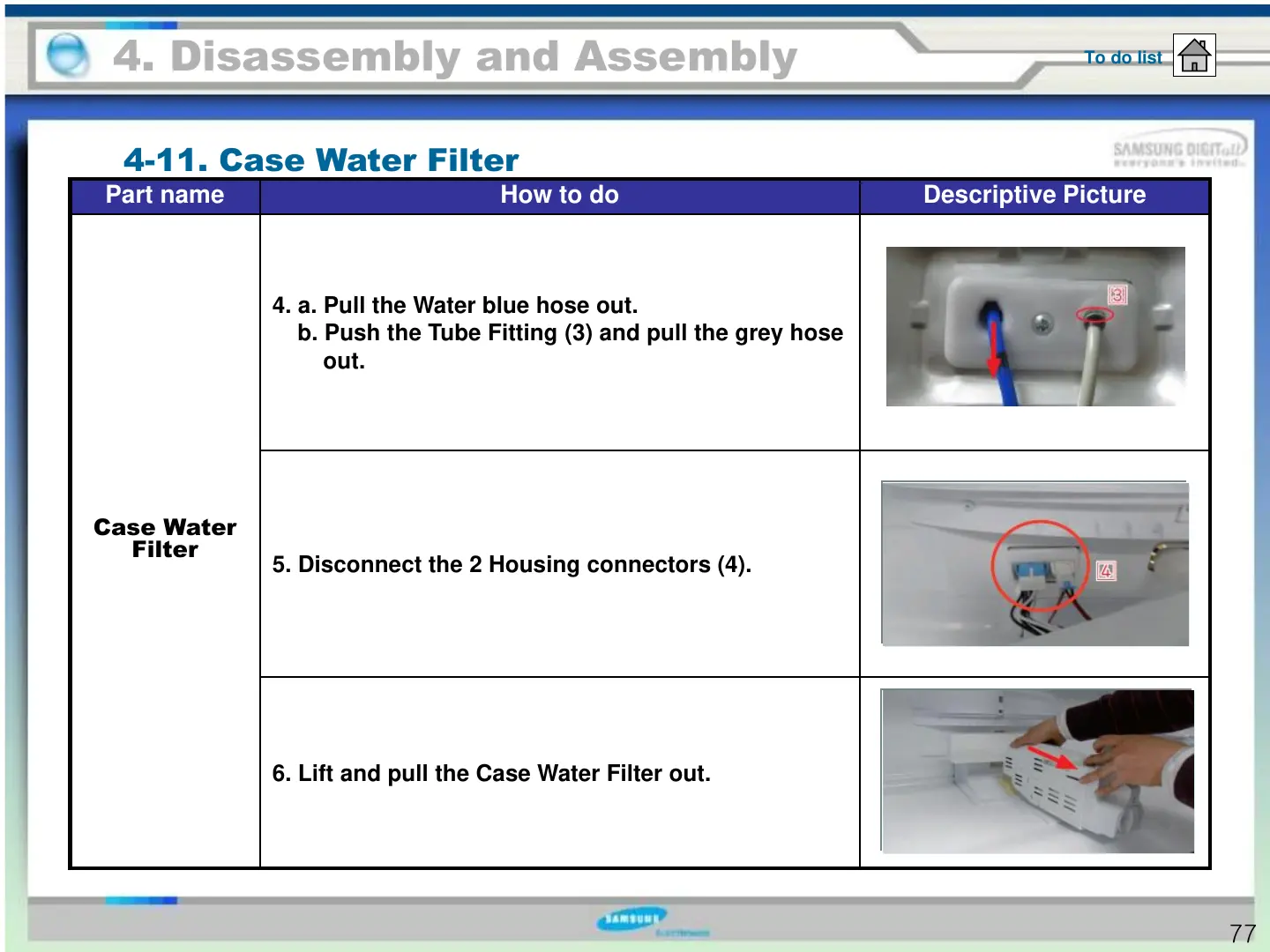

Part name How to do Descriptive Picture
Case Water
Filter
4. a. Pull the Water blue hose out.
b. Push the Tube Fitting (3) and pull the grey hose
out.
5. Disconnect the 2 Housing connectors (4).
6. Lift and pull the Case Water Filter out.
4. Disassembly and Assembly
4-11. Case Water Filter
To do list
77
