4. Disassembly and Assembly

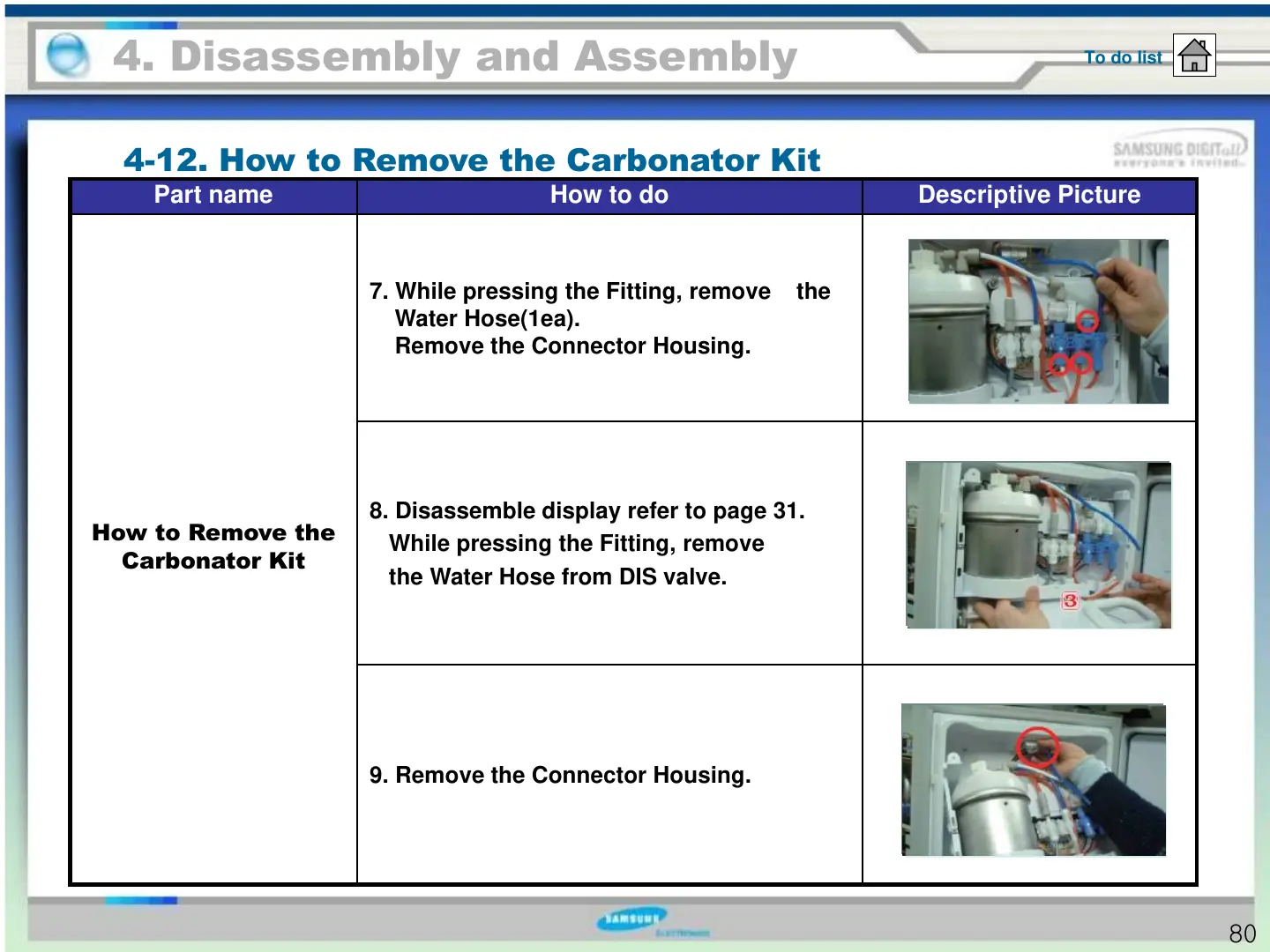

4-12. How to Remove the Carbonator Kit
To do list
Part name How to do Descriptive Picture
How to Remove the
Carbonator Kit
7. While pressing the Fitting, remove the
Water Hose(1ea).
Remove the Connector Housing.
8. Disassemble display refer to page 31.
While pressing the Fitting, remove
the Water Hose from DIS valve.
9. Remove the Connector Housing.
80
