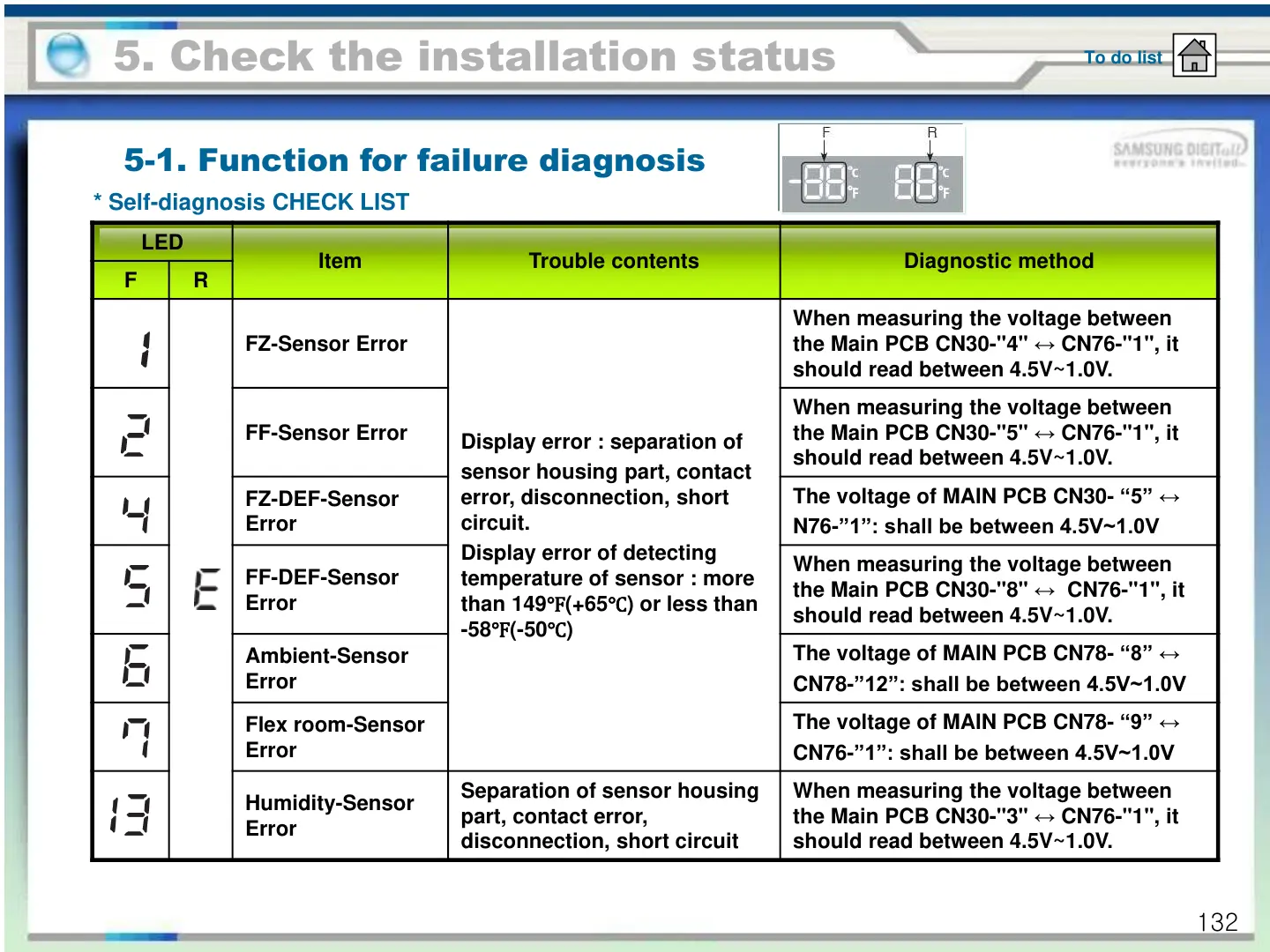

* Self-diagnosis CHECK LIST
To do list
LED
Item Trouble contents Diagnostic method
F R
FZ-Sensor Error
Display error : separation of
sensor housing part, contact
error, disconnection, short
circuit.
Display error of detecting
temperature of sensor : more
than 149
℉(+65℃) or less than
-58℉(-50℃)
When measuring the voltage between
the Main PCB CN30-"4" ↔ CN76-"1", it
should read between 4.5V~1.0V.
FF-Sensor Error
When measuring the voltage between
the Main PCB CN30-"5" ↔ CN76-"1", it
should read between 4.5V~1.0V.
FZ-DEF-Sensor
Error
The voltage of MAIN PCB CN30- “5” ↔
N76-”1”: shall be between 4.5V~1.0V
FF-DEF-Sensor
Error
When measuring the voltage between
the Main PCB CN30-"8" ↔ CN76-"1", it
should read between 4.5V~1.0V.
Ambient-Sensor
Error
The voltage of MAIN PCB CN78- “8” ↔
CN78-”12”: shall be between 4.5V~1.0V
Flex room-Sensor
Error
The voltage of MAIN PCB CN78- “9” ↔
CN76-”1”: shall be between 4.5V~1.0V
Humidity-Sensor
Error
Separation of sensor housing
part, contact error,
disconnection, short circuit
When measuring the voltage between
the Main PCB CN30-"3" ↔ CN76-"1", it
should read between 4.5V~1.0V.
5. Check the installation status
5-1. Function for failure diagnosis
132
