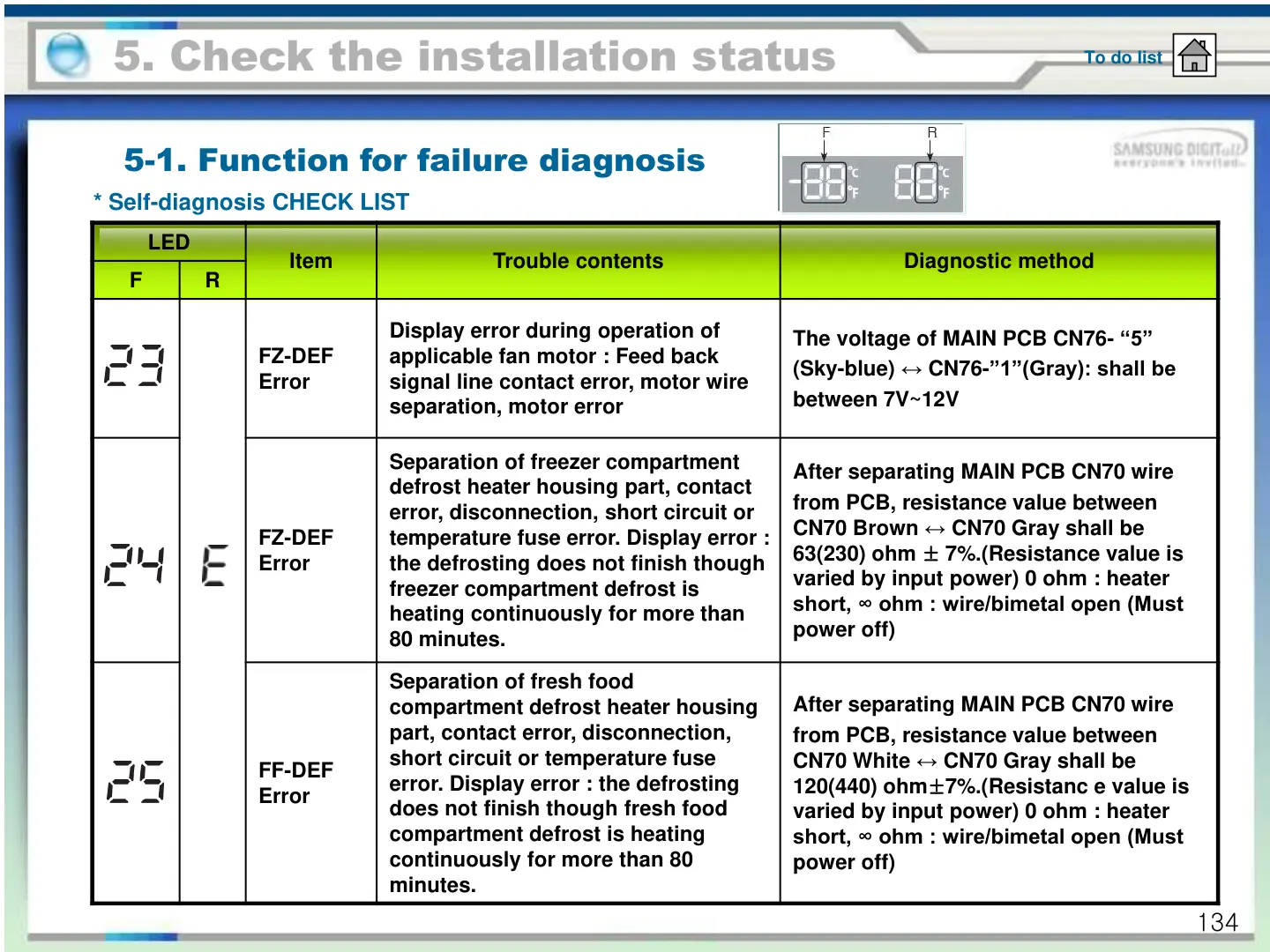

* Self-diagnosis CHECK LIST
To do list
LED
Item Trouble contents Diagnostic method
F R
FZ-DEF
Error
Display error during operation of
applicable fan motor : Feed back
signal line contact error, motor wire
separation, motor error
The voltage of MAIN PCB CN76- “5”
(Sky-blue) ↔ CN76-”1”(Gray): shall be
between 7V~12V
FZ-DEF
Error
Separation of freezer compartment
defrost heater housing part, contact
error, disconnection, short circuit or
temperature fuse error. Display error :
the defrosting does not finish though
freezer compartment defrost is
heating continuously for more than
80 minutes.
After separating MAIN PCB CN70 wire
from PCB, resistance value between
CN70 Brown ↔ CN70 Gray shall be
63(230) ohm
± 7%.(Resistance value is
varied by input power) 0 ohm : heater
short, ∞ ohm : wire/bimetal open (Must
power off)
FF-DEF
Error
Separation of fresh food
compartment defrost heater housing
part, contact error, disconnection,
short circuit or temperature fuse
error. Display error : the defrosting
does not finish though fresh food
compartment defrost is heating
continuously for more than 80
minutes.
After separating MAIN PCB CN70 wire
from PCB, resistance value between
CN70 White ↔ CN70 Gray shall be
120(440) ohm
±7%.(Resistanc e value is
varied by input power) 0 ohm : heater
short, ∞ ohm : wire/bimetal open (Must
power off)
5. Check the installation status
5-1. Function for failure diagnosis
134
