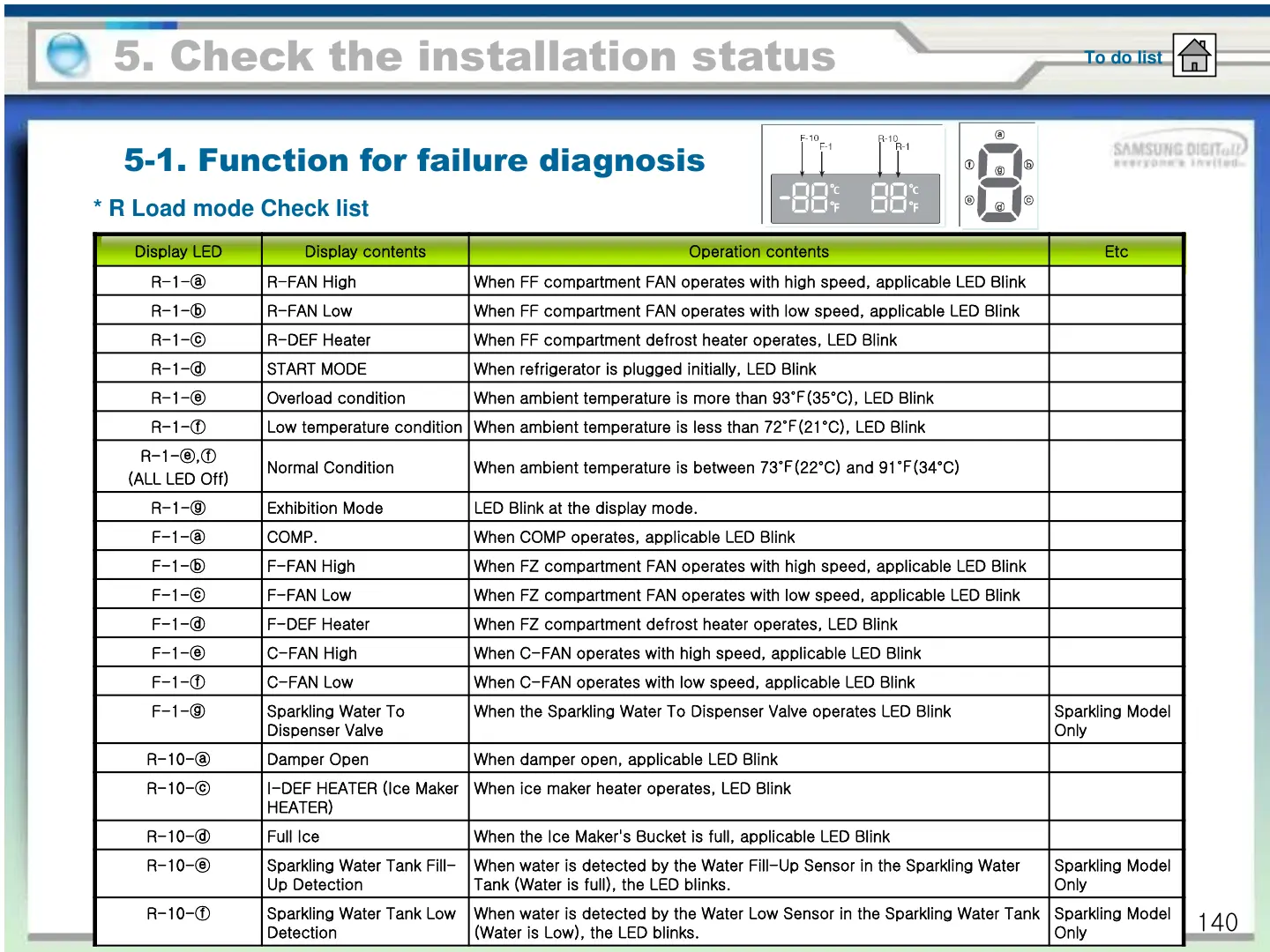

* R Load mode Check list
To do list
Display LED Display contents Operation contents Etc
R-1-ⓐ R-FAN High When FF compartment FAN operates with high speed, applicable LED Blink
R-1-ⓑ R-FAN Low When FF compartment FAN operates with low speed, applicable LED Blink
R-1-ⓒ R-DEF Heater When FF compartment defrost heater operates, LED Blink
R-1-ⓓ START MODE When refrigerator is plugged initially, LED Blink
R-1-ⓔ Overload condition When ambient temperature is more than 93℉(35°C), LED Blink
R-1-ⓕ Low temperature condition When ambient temperature is less than 72℉(21°C), LED Blink
R-1-ⓔ,ⓕ
(ALL LED Off)
Normal Condition When ambient temperature is between 73℉(22°C) and 91℉(34°C)
R-1-ⓖ Exhibition Mode LED Blink at the display mode.
F-1-ⓐ COMP. When COMP operates, applicable LED Blink
F-1-ⓑ F-FAN High When FZ compartment FAN operates with high speed, applicable LED Blink
F-1-ⓒ F-FAN Low When FZ compartment FAN operates with low speed, applicable LED Blink
F-1-ⓓ F-DEF Heater When FZ compartment defrost heater operates, LED Blink
F-1-ⓔ C-FAN High When C-FAN operates with high speed, applicable LED Blink
F-1-ⓕ C-FAN Low When C-FAN operates with low speed, applicable LED Blink
F-1-ⓖ Sparkling Water To
Dispenser Valve
When the Sparkling Water To Dispenser Valve operates LED Blink Sparkling Model
Only
R-10-ⓐ Damper Open When damper open, applicable LED Blink
R-10-ⓒ I-DEF HEATER (Ice Maker
HEATER)
When ice maker heater operates, LED Blink
R-10-ⓓ Full Ice When the Ice Maker's Bucket is full, applicable LED Blink
R-10-ⓔ Sparkling Water Tank Fill-
Up Detection
When water is detected by the Water Fill-Up Sensor in the Sparkling Water
Tank (Water is full), the LED blinks.
Sparkling Model
Only
R-10-ⓕ Sparkling Water Tank Low
Detection
When water is detected by the Water Low Sensor in the Sparkling Water Tank
(Water is Low), the LED blinks.
Sparkling Model
Only
5. Check the installation status
5-1. Function for failure diagnosis
140
