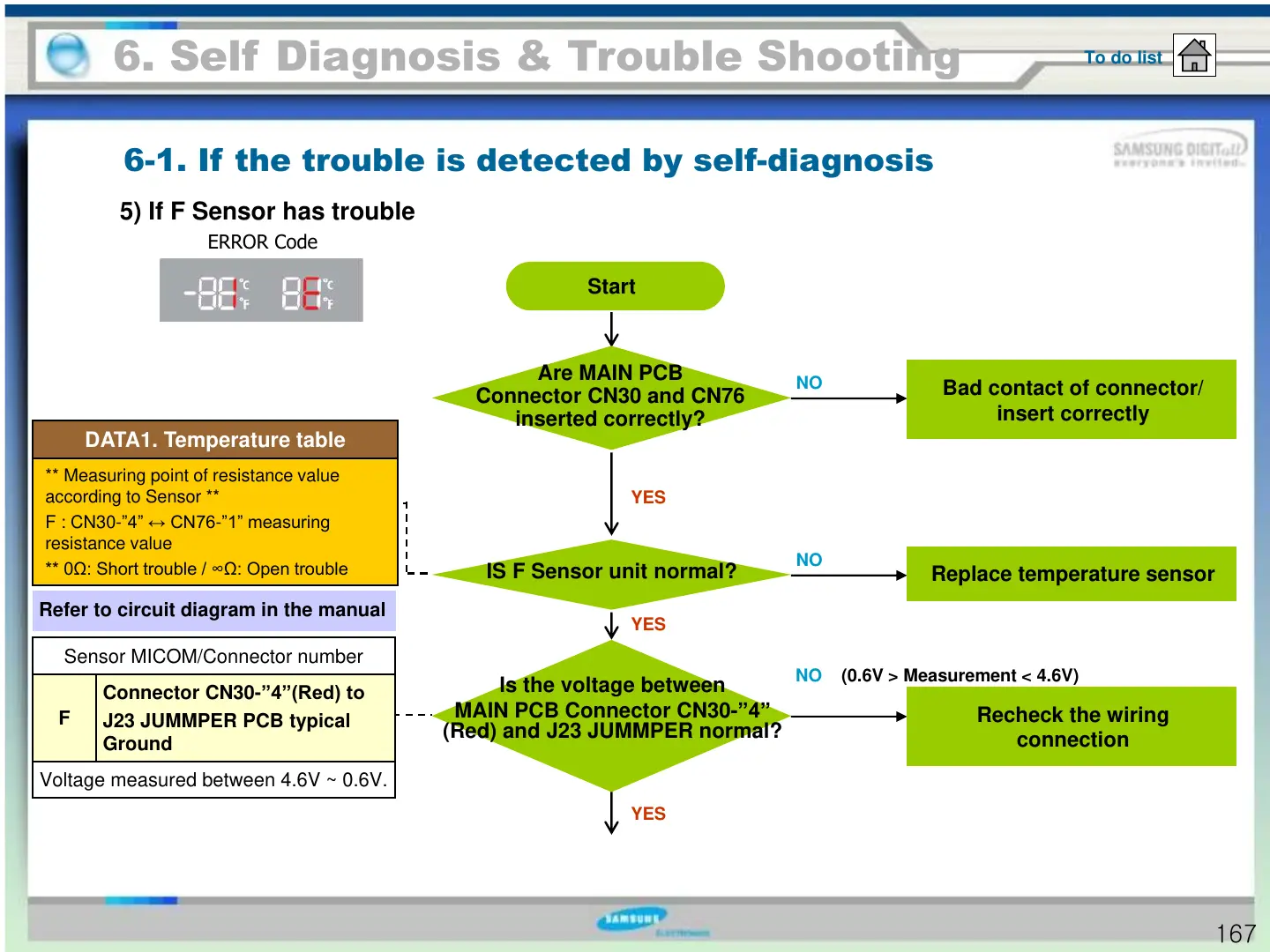

6-1. If the trouble is detected by self-diagnosis
6. Self Diagnosis & Trouble Shooting
To do list
Start
Are MAIN PCB
Connector CN30 and CN76
inserted correctly?
IS F Sensor unit normal?
YES
Bad contact of connector/
insert correctly
NO
YES
NO
5) If F Sensor has trouble
Is the voltage between
MAIN PCB Connector CN30-”4”
(Red) and J23 JUMMPER normal?
NO (0.6V > Measurement < 4.6V)
Sensor MICOM/Connector number
F
Connector CN30-”4”(Red) to
J23 JUMMPER PCB typical
Ground
Voltage measured between 4.6V ~ 0.6V.
Replace temperature sensor
Recheck the wiring
connection
Refer to circuit diagram in the manual
DATA1. Temperature table
** Measuring point of resistance value
according to Sensor **
F : CN30-”4” ↔ CN76-”1” measuring
resistance value
** 0Ω: Short trouble / ∞Ω: Open trouble
ERROR Code
YES
167
To Next Page
