6. Self Diagnosis & Trouble Shooting
6-8. When alarm sounds continuously without stop
(related with buzzer sound)

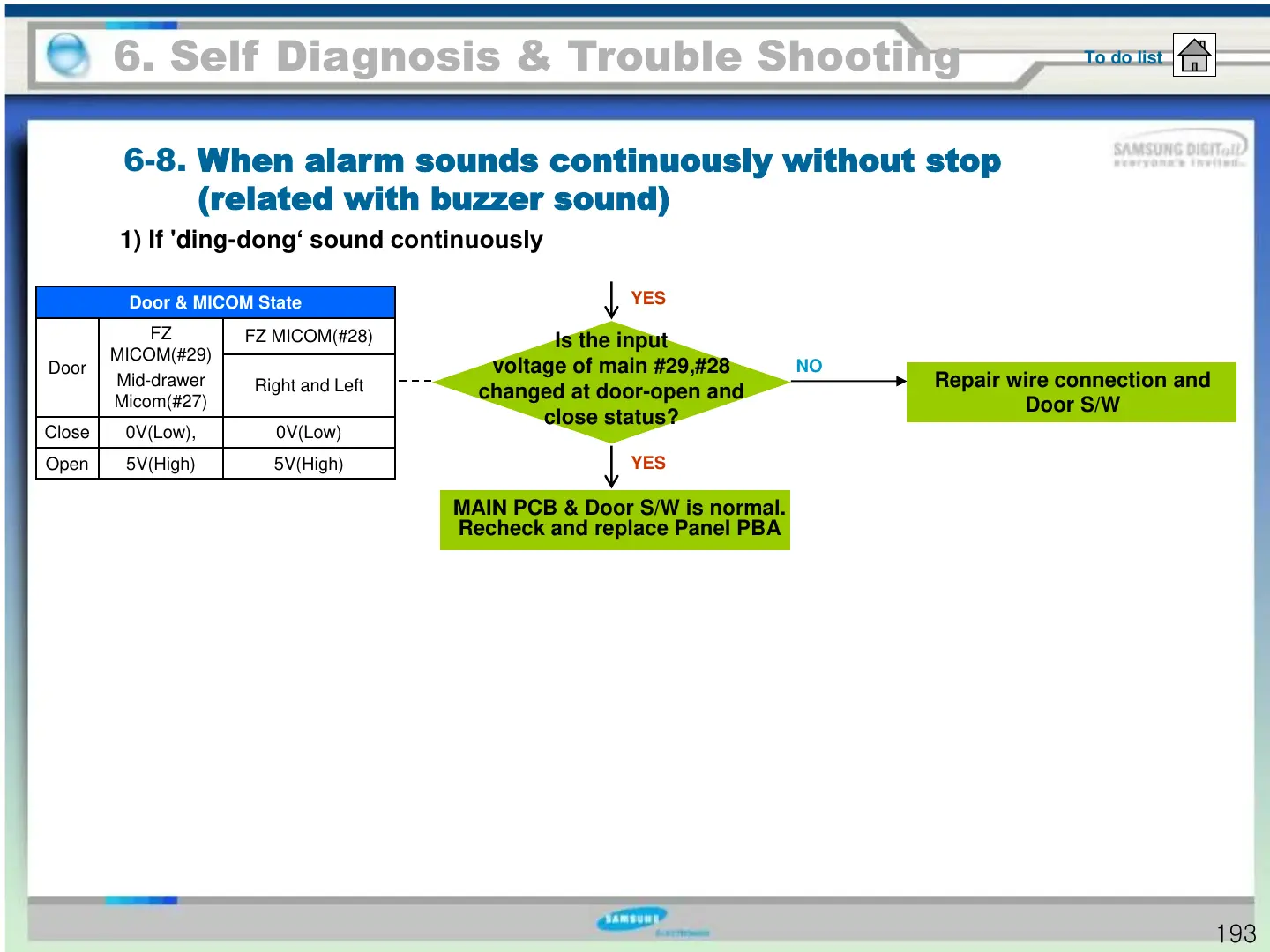

1) If 'ding-dong‘ sound continuously
To do list
Is the input
voltage of main #29,#28
changed at door-open and
close status?
YES
YES
NO
Repair wire connection and
Door S/W
MAIN PCB & Door S/W is normal.
Recheck and replace Panel PBA
Door & MICOM State
Door
FZ
MICOM(#29)
Mid-drawer
Micom(#27)
FZ MICOM(#28)
Right and Left
Close 0V(Low), 0V(Low)
Open 5V(High) 5V(High)
