6. Self Diagnosis & Trouble Shooting
YES
YES
Is it normal when checking it
with the Panel Diagnosing Kit?
NO
Is the Dispenser Valve of the
3-Way Valve normal?

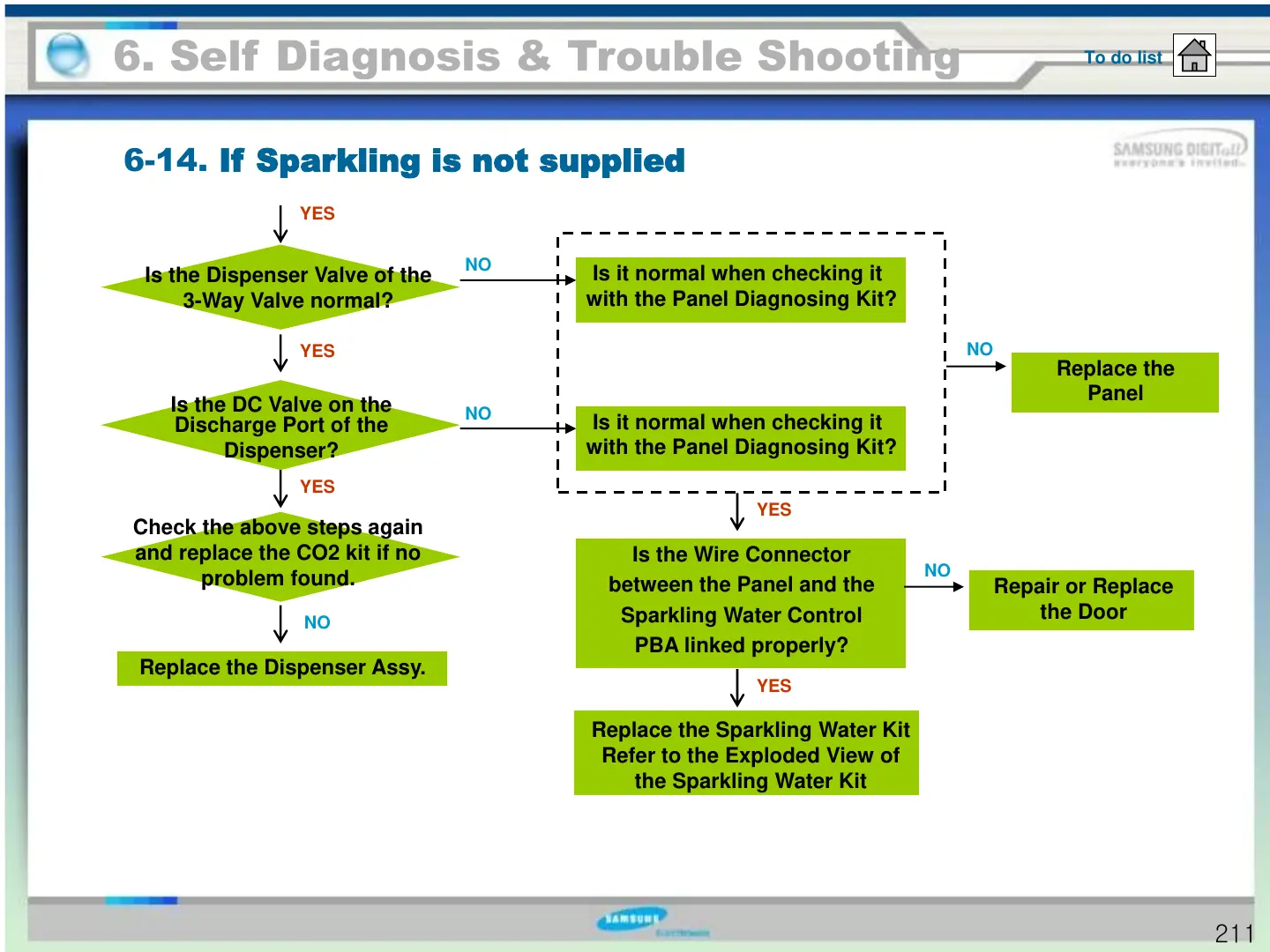

6-14. If Sparkling is not supplied
To do list
211
YES
Is it normal when checking it
with the Panel Diagnosing Kit?
NO
Is the DC Valve on the
Discharge Port of the
Dispenser?
NO
Check the above steps again
and replace the CO2 kit if no
problem found.
Replace the Dispenser Assy.
Replace the
Panel
NO
YES
Is the Wire Connector
between the Panel and the
Sparkling Water Control
PBA linked properly?
YES
Replace the Sparkling Water Kit
Refer to the Exploded View of
the Sparkling Water Kit
Repair or Replace
the Door
NO
To Next Page
