6. Self Diagnosis & Trouble Shooting

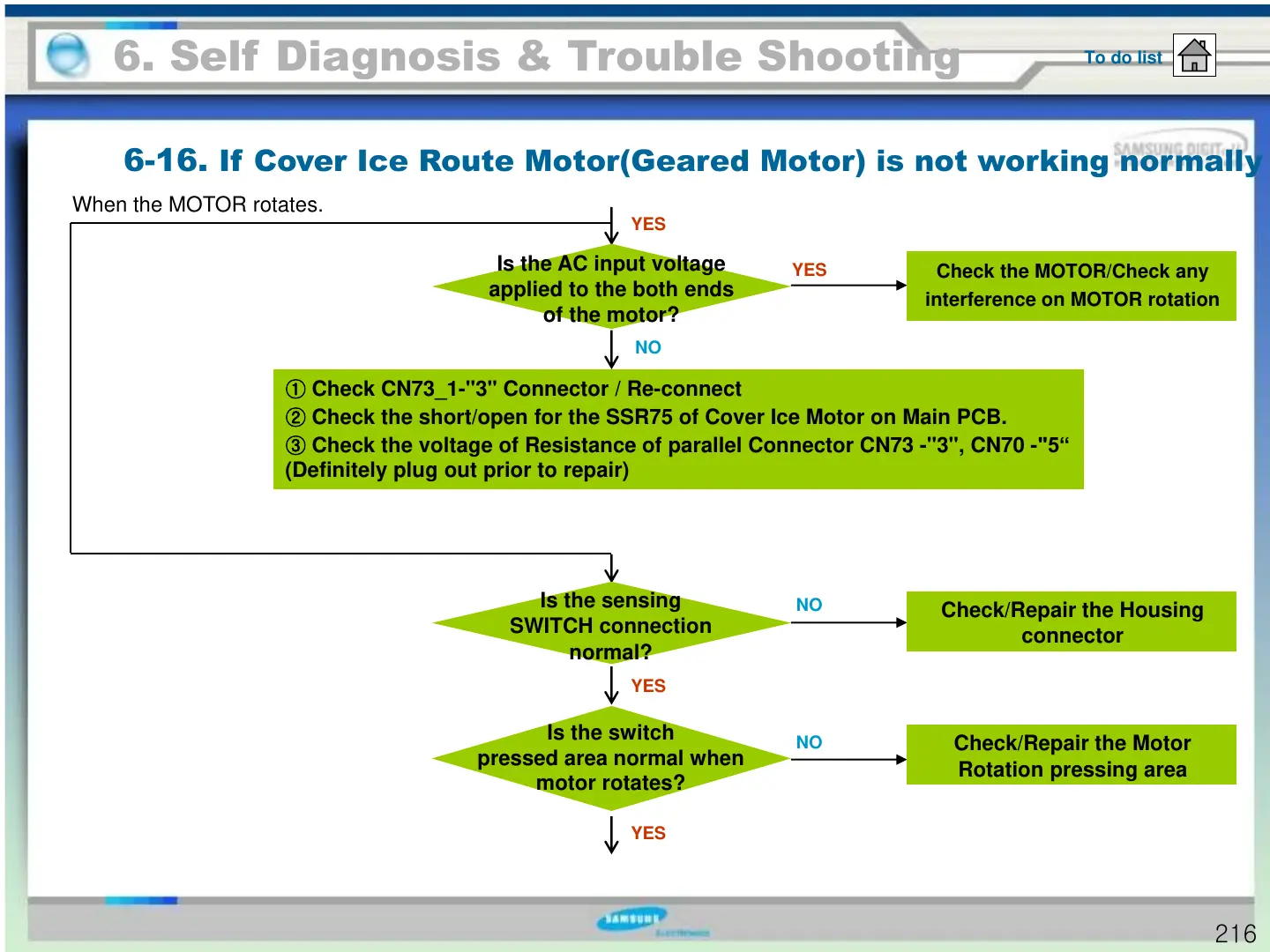

6-16. If Cover Ice Route Motor(Geared Motor) is not working normally
To do list
YES
Is the AC input voltage
applied to the both ends
of the motor?
NO
YES
When the MOTOR rotates.
Check the MOTOR/Check any
interference on MOTOR rotation
Is the sensing
SWITCH connection
normal?
Is the switch
pressed area normal when
motor rotates?
Check/Repair the Housing
connector
YES
YES
NO
NO
Check/Repair the Motor
Rotation pressing area
① Check CN73_1-"3" Connector / Re-connect
② Check the short/open for the SSR75 of Cover Ice Motor on Main PCB.
③ Check the voltage of Resistance of parallel Connector CN73 -"3", CN70 -"5“
(Definitely plug out prior to repair)
216
To Next Page
