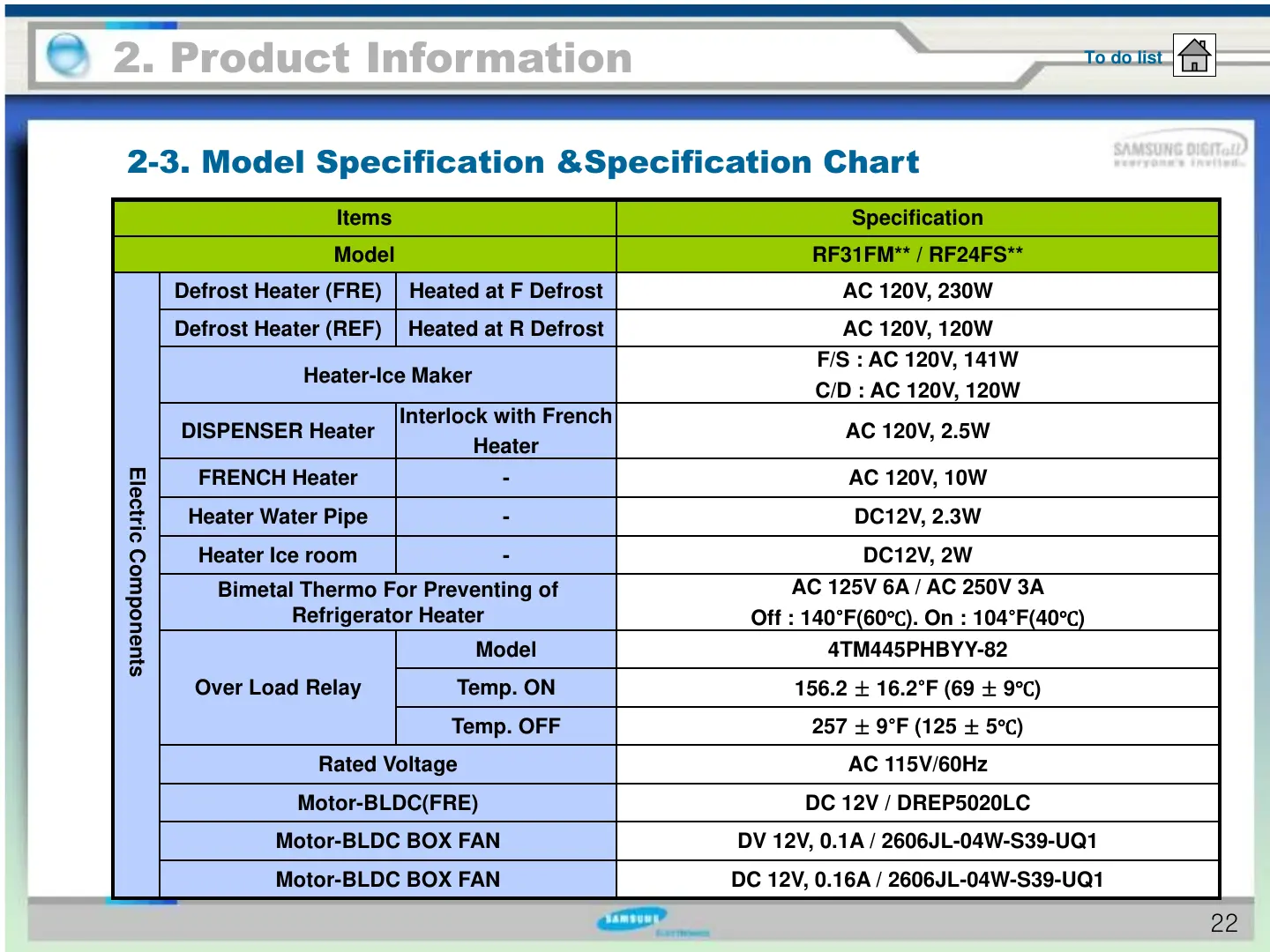

Items Specification
Model RF31FM** / RF24FS**
Defrost Heater (FRE) Heated at F Defrost AC 120V, 230W
Defrost Heater (REF) Heated at R Defrost AC 120V, 120W
Heater-Ice Maker
F/S : AC 120V, 141W
C/D : AC 120V, 120W
DISPENSER Heater
Interlock with French
Heater
AC 120V, 2.5W
FRENCH Heater - AC 120V, 10W
Heater Water Pipe - DC12V, 2.3W
Heater Ice room - DC12V, 2W
Bimetal Thermo For Preventing of
Refrigerator Heater
AC 125V 6A / AC 250V 3A
Off : 140
°F(60℃). On : 104°F(40℃)
Over Load Relay
Model 4TM445PHBYY-82
Temp. ON
156.2
± 16.2°F (69 ± 9℃)
Temp. OFF
257
± 9°F (125 ± 5℃)
Rated Voltage AC 115V/60Hz
Motor-BLDC(FRE) DC 12V / DREP5020LC
Motor-BLDC BOX FAN DV 12V, 0.1A / 2606JL-04W-S39-UQ1
Motor-BLDC BOX FAN DC 12V, 0.16A / 2606JL-04W-S39-UQ1
Electric Components
To do list
2-3. Model Specification &Specification Chart
2. Product Information
22
