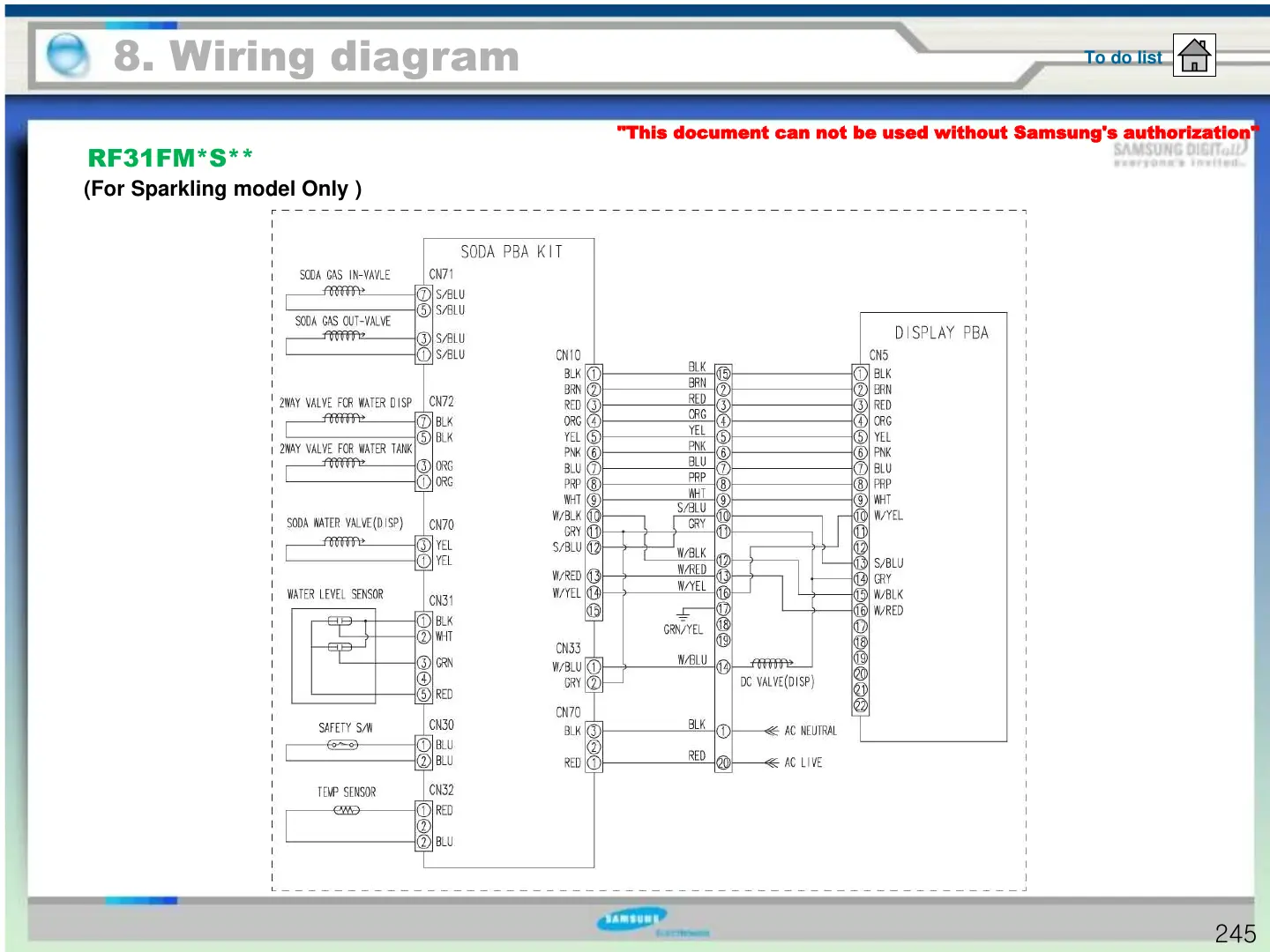

8. Wiring diagram

To do list

"This document can not be used without Samsung's authorization"

245

RF31FM*S**

(For Sparkling model Only )
