4. Disassembly and Assembly

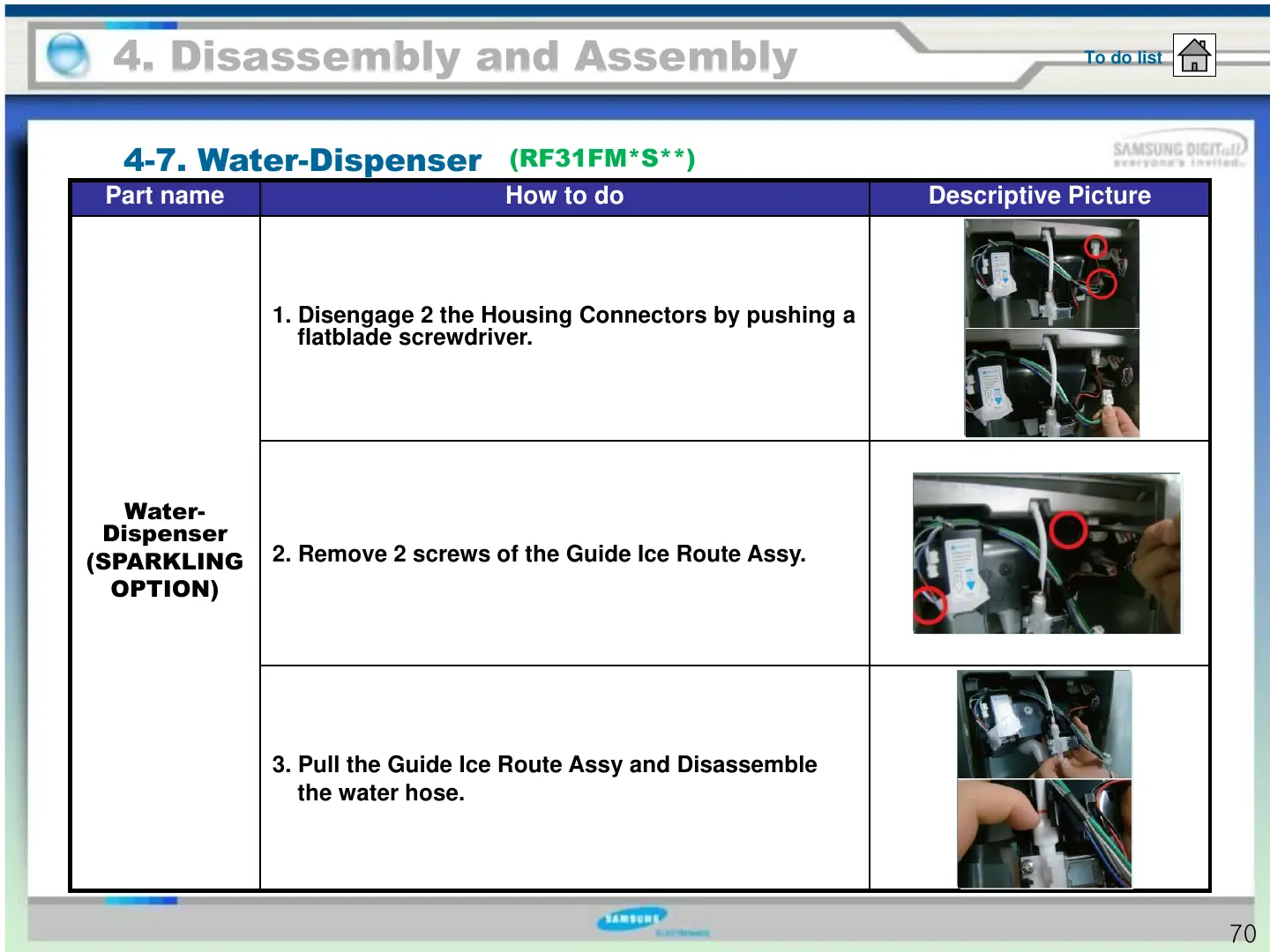

4-7. Water-Dispenser
To do list
Part name How to do Descriptive Picture
Water-
Dispenser
(SPARKLING
OPTION)
1. Disengage 2 the Housing Connectors by pushing a
flatblade screwdriver.
2. Remove 2 screws of the Guide Ice Route Assy.
3. Pull the Guide Ice Route Assy and Disassemble
the water hose.
70
(RF31FM*S**)
