18
Chapter 2. Device setup
Guided installation
WARNING
To prevent injury, this apparatus must be securely attached to the oor/wall in
accordance with the installation instructions.
• Ensure that an authorized installation company installs the wall mount.
Otherwise, it may fall and cause personal injury.
• Make sure to install the specied wall mount.
• Contact Samsung Customer Service Center for further details.

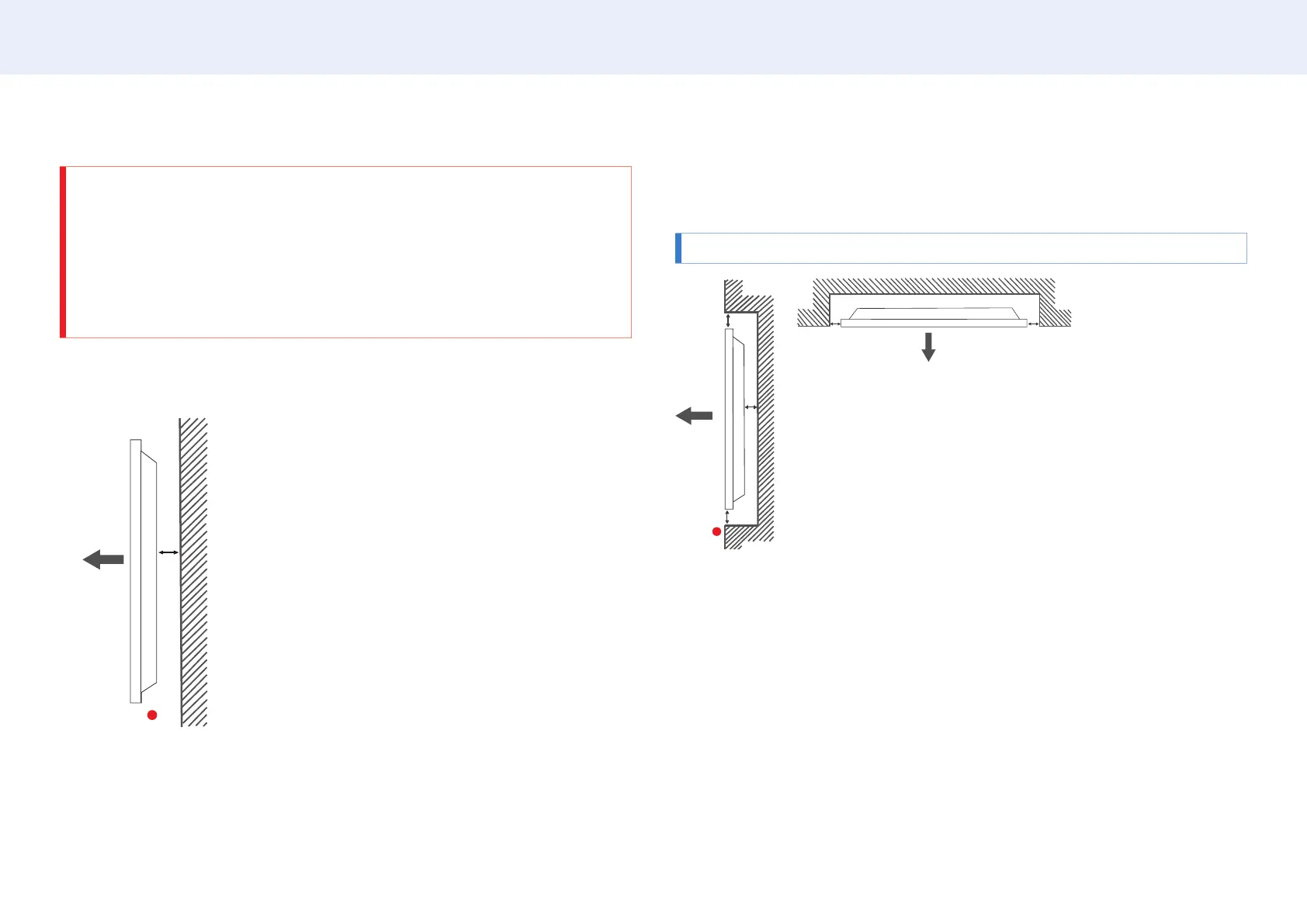

Ventilation
Installation on a perpendicular wall
A
B
Side view
A Minimum 1.6 inches (40 mm)
B Ambient temperature: Under 95 °F (35 °C)
When installing the product on a perpendicular wall, allow at least 40 mm of space
between the product and wall surface for ventilation and ensure that the ambient
temperature is kept below 95 °F (35 °C).
Installation on an indented wall
Contact Samsung Customer Service Center for further details.
A
B
C
E
D D
Side view
Side view
A Minimum 1.6 inches (40 mm)
B Minimum 2.8 inches (70 mm)
C Minimum 2 inches (50 mm)
D Minimum 2 inches (50 mm)
E Ambient temperature: Under 95 °F (35 °C)
When installing the product on an indented wall, allow at least the space specied
above between the product and wall for ventilation and ensure that the ambient
temperature is kept below 95 °F (35 °C).
