Chapter 3. PC software (Multiple Display Control)
Connection
Using the RS232C cable
The appearance may differ depending on the product.

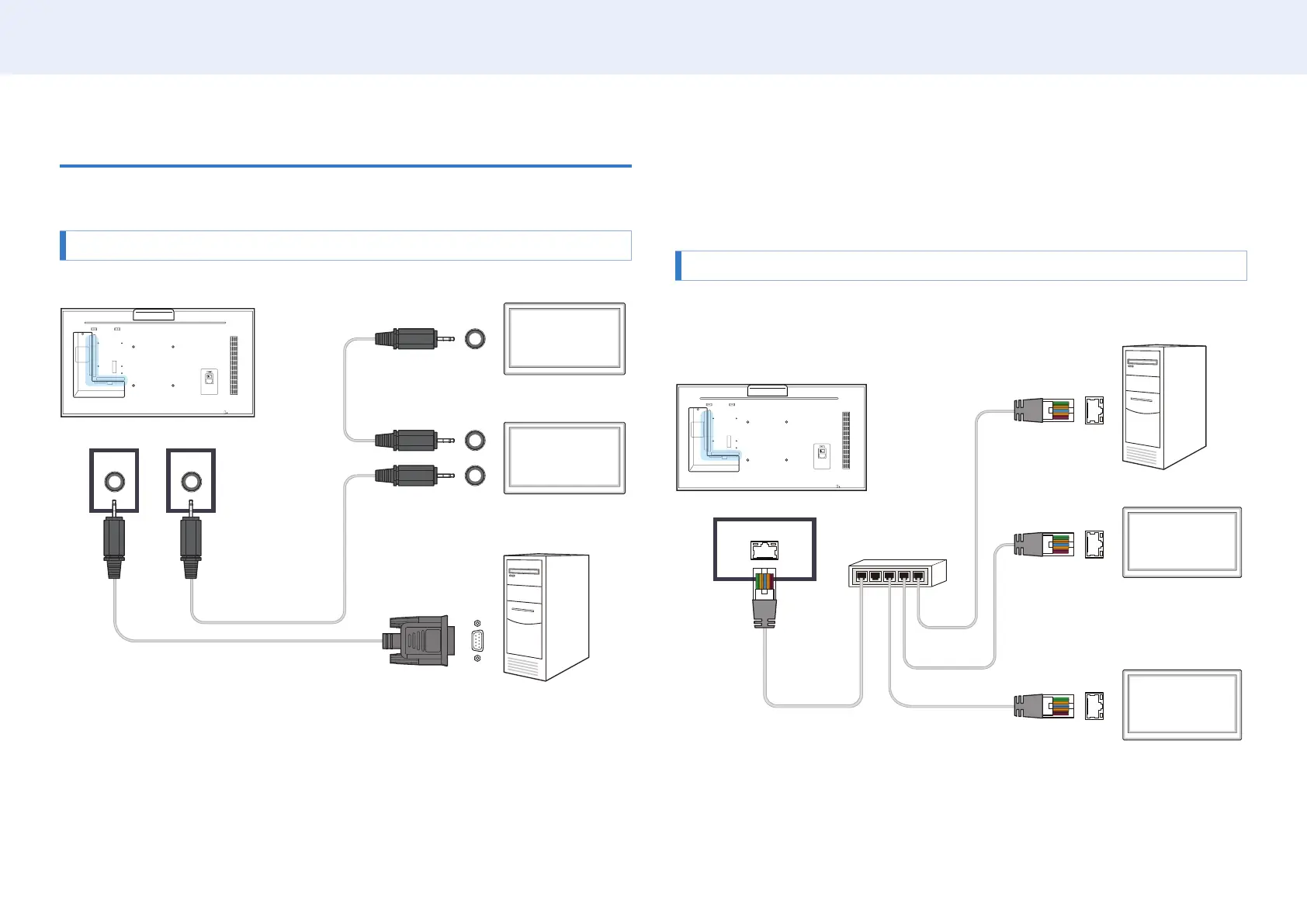

An RS232C serial cable must be connected to the serial ports on the PC and monitor.
RS232C IN RS232C OUT
RS232C IN
RS232C IN
RS232C OUT
Monitor 1
Monitor 2
Computer
Using the ethernet cable
Enter the IP for the primary display device and connect the device to the PC. Display
devices can be connected to each other using a LAN cable.
Connection using a direct LAN cable
The appearance may differ depending on the product.
Multiple products can be connected using the RJ45 port on the product and the LAN
ports on the HUB.
RJ45
Monitor 1
Monitor 2
Computer
HUB
To Next Page
