Chapter 2. Device setup

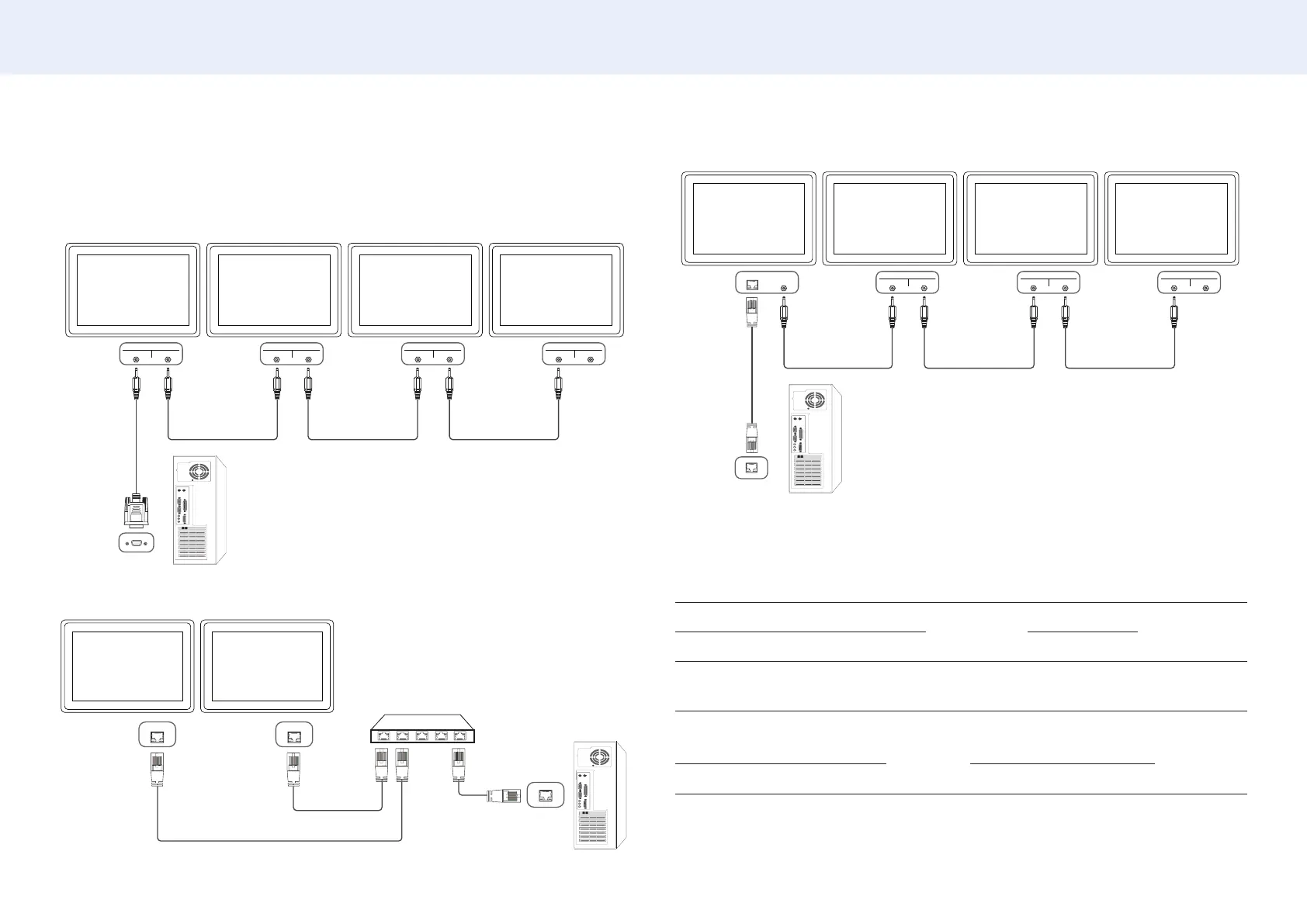

Connection
• Ensure you connect each of the adapters to the correct RS232C IN or OUT port on
the product.
Connection 1
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
Connection 2
RJ45 RJ45
Connection 3
RS232C
OUT
RJ45 RS232C
IN OUT
RS232C
IN OUT
RS232C
IN OUT
Control Codes
Viewing control state (Get control command)
Header Command ID Data length Checksum
0xAA Command type 0
Controlling (Set control command)
Header Command ID Data
length
Data Checksum
0xAA Command type 1 Value
