1.4 CHAPTER ONE: YOUR NEW TV
YOUR NEW TV

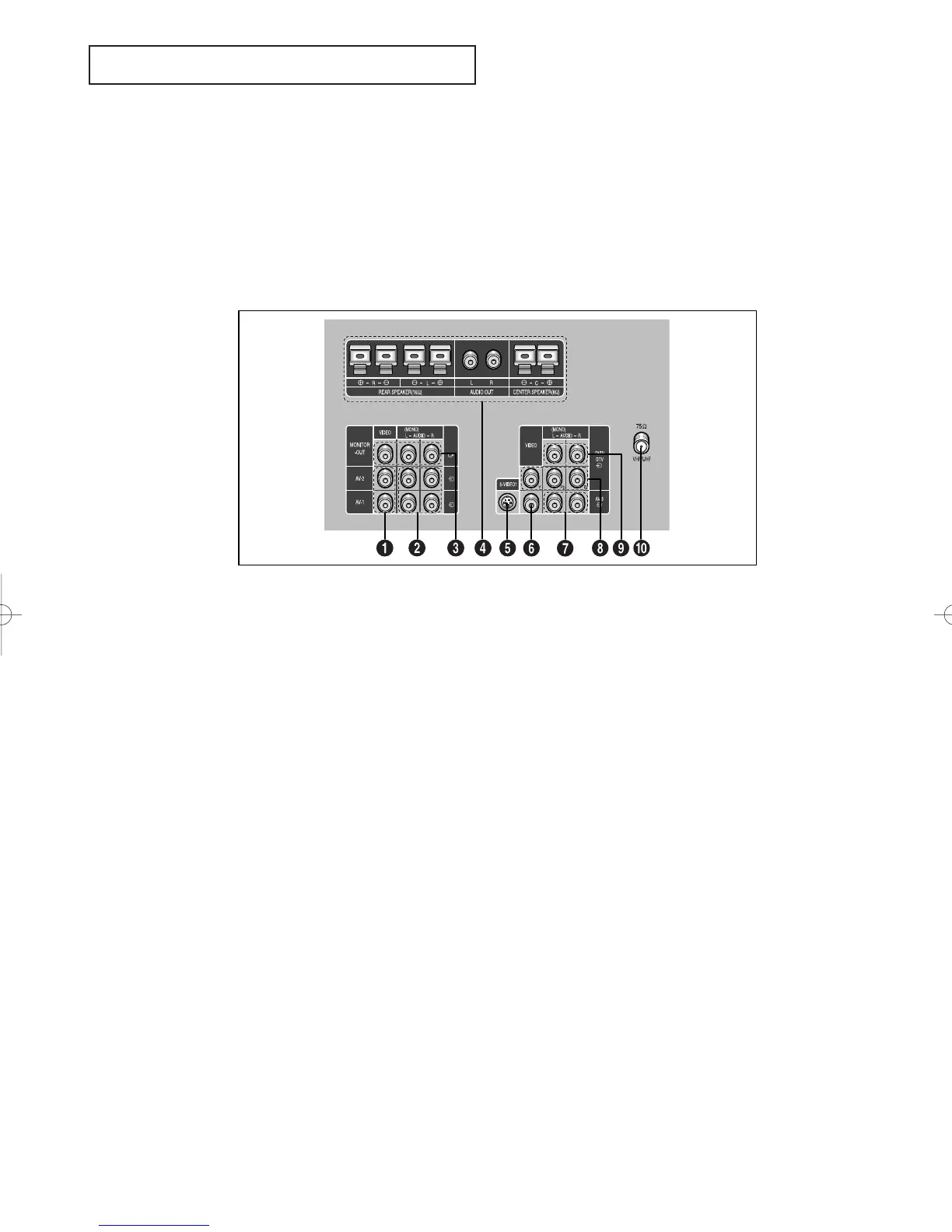

Rear Panel Jacks
Use the rear panel jacks to connect an A/V component that will be connected
continuously, such as a VCR or a laserdisc player.
Because there are two sets of input jacks, you can connect two different A/V
components (i.e., a VCR and a laserdisc, 2 VCRs, etc.)
For more information on connecting equipment, see pages 2.1 – 2.9.
Œ
,
Ø
VIDEO INPUTS
Video signals from VCRs, laserdisc
players and similar devices (Three sets
are available: AV1, AV2 and AV3).
´
,
∏
AUDIO INPUTS
Audio signals from VCRs, laserdisc
players and similar devices.
ˇ
AUDIO-VIDEO
MONITOR OUTPUTS
Connect to the audio/video input jacks of a
recording VCR.
Note: The monitor out does not operate in DVD or
DTV mode.
¨
SURROUND OUTPUTS
Connects to a rear-surround amp: Surround Left,
Surround Right and Center.
Here are two ways to connect an audio amplifier:
1. TV - amp - speaker
2. TV - speaker(amp built-in)
ˆ
SUPER VIDEO IN
S-Video signal from an S-VHS
VCR or DVD player.
”
DVD & DTV VIDEO INPUTS
Connects component video from a DVD player &
Set-Top Box.
’
DVD & DTV AUDIO INPUTS
Connect to the audio output jacks of
a DVD player or SET-TOP BOX.
˝
VHF/UHF
Connect to an antenna or to a cable TV system.
