SAMWONTECH
4th Edition of TEMI880 IM : Jan. 29. 2007 Page 38 / 119

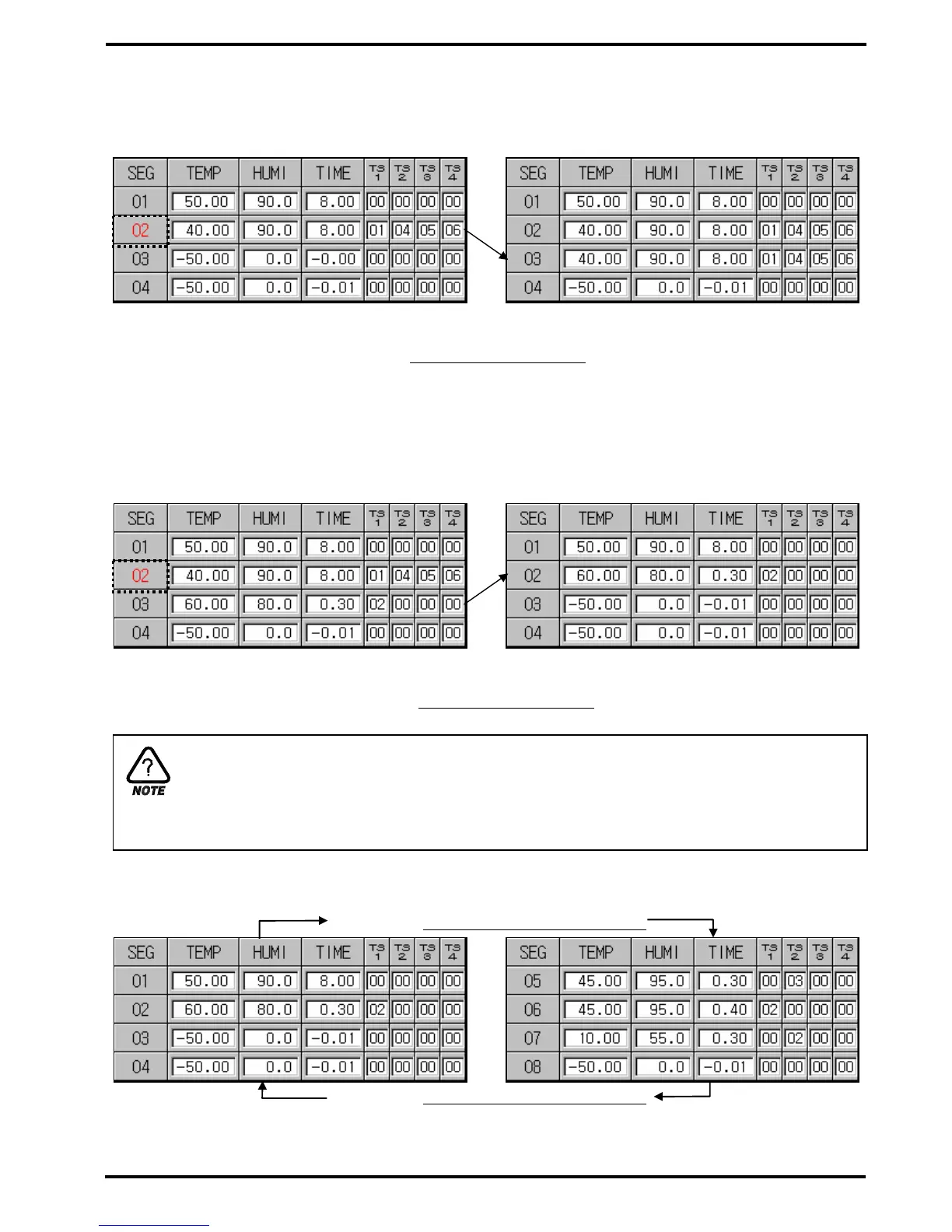

2.10.1.1 Insert Method of the Segment
▶ Example => Insert segment.
Figure 2-23. Before Insert Segment Figure 2-24. After Insert Segment
1) Clicked dot-rectangle areas of Figure 2-23, “02” character color is changed red.
Clicked insert button(
○
9 ) of Figure 2-22. Edit Pattern Screen, a segment of the same value is
inserted.
2.10.1.2 Delete Method of the Segment
▶ Example => Delete segment.
Figure 2-25. Before Delete Segment Figure 2-26. After Delete Segment
1) Clicked dot-rectangle areas of Figure 2-25, “02” character color is changed red.
2) Clicked delete button(
○
10 ) of Figure 2-22. Edit Pattern Screen, “02” segment is deleted.
a case where segment do not insert or delete.
☞ If segment setting value is equaled Initial value, you are not able to insert or delete.
☞ You are not able to insert or delete at the running.
2.10.1.3 Move Screen
○
8 button of Figure 2-22. Edit Pattern Screen
○
7 button of Figure 2-22. Edit Pattern Screen
