2.10.1.4 Set Method of the Time Signal

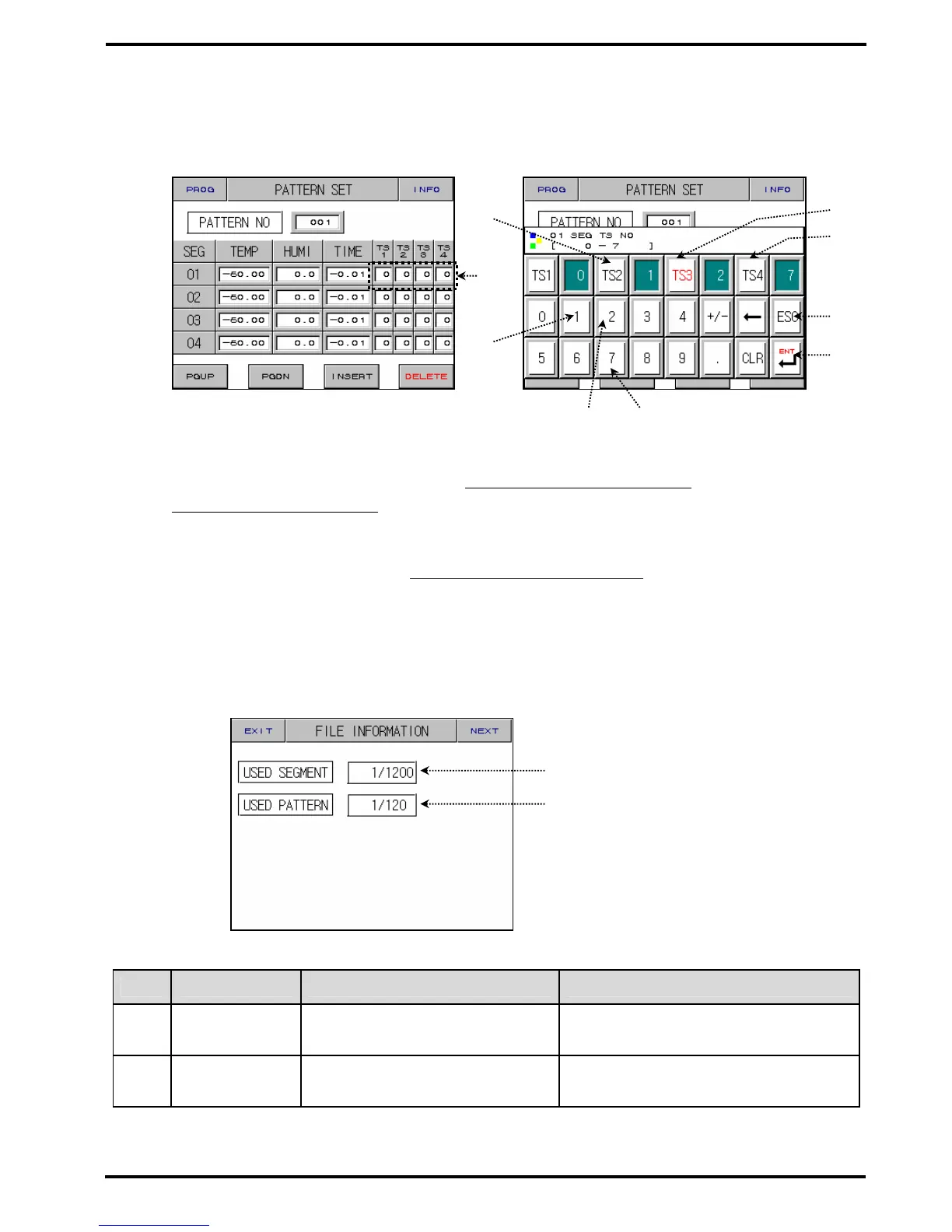

▶ This is the screen about time signal setting. (TS2 : TYPE “1”, TS3 : TYPE “2”, TS4 : TYPE “7”)
Figure 2-27. Before Time Signal Setting Figure 2-28. Time Signal Setting Key
1) Clicked dot-rectangle areas(
○
1 ) of Figure 2-27. Before Time Signal Setting, Display Figure
2-28. Time Signal Setting Key
.
2) The order of the time signal setting :
○
2→
○
3→
○
4→
○
7→
○
5→
○
4→
○
8→
○
6→
○
4→
○
9
☞ A kind of the input time signal : See 2.10.4 Time Signal Setting Screen.
2.10.1.5 File Information Screen
▶ Display number of the used pattern and segment.
Figure 2-29. File Information Screen
No. Contents Description Additional Description
○
1
Used Segment Display used segment number.
▶ Used segment number
/ Total segment number
○
2
Used Pattern Display used pattern number.
▶ Used pattern number
/ Total pattern number
○
1
○
2
○
3
○
4
○
5
○
6
○
7
○
8
○
9
○
1
○
2
