2.12.1.3 Input Display Screen

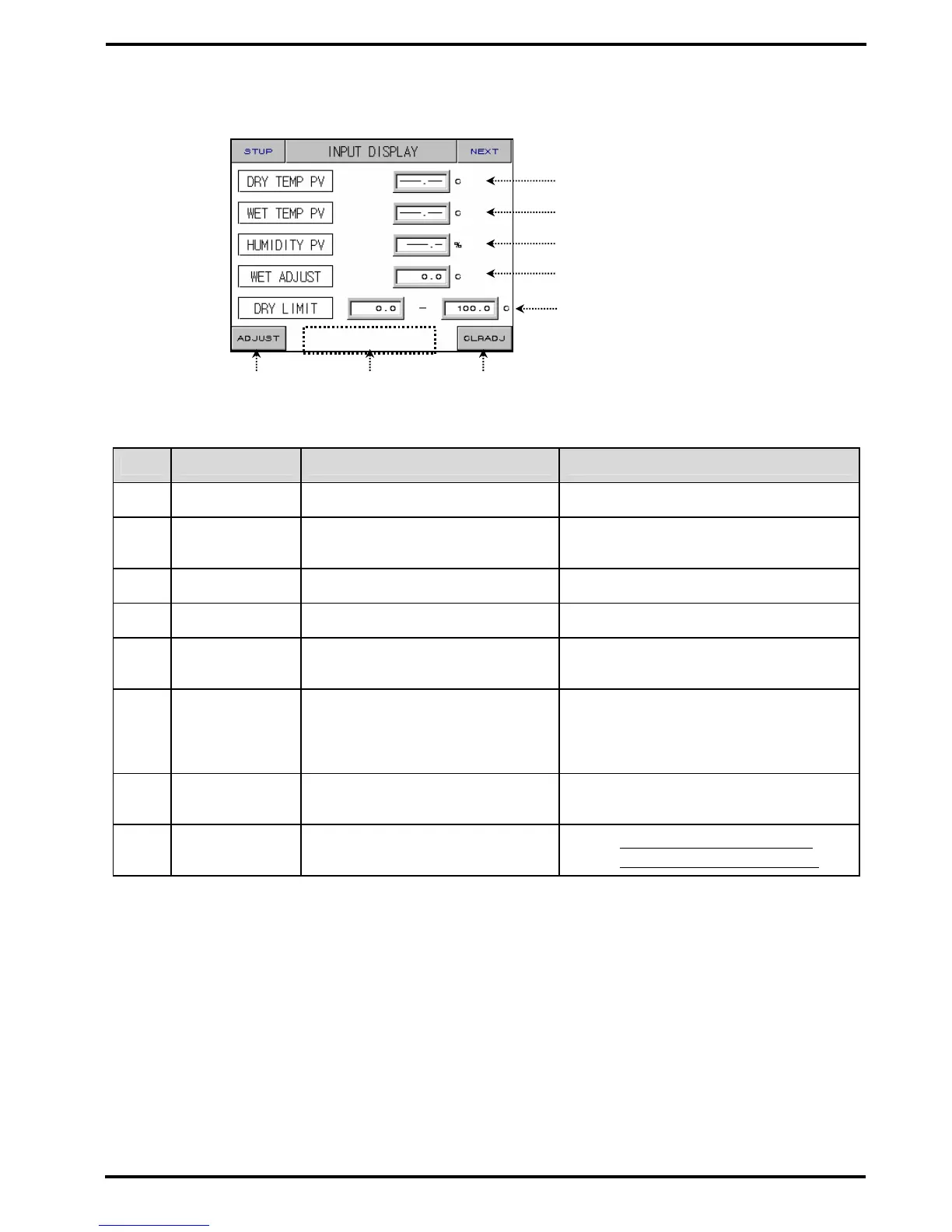

Figure 2-44. Input Display Screen
No. Contents Description Additional Description
○
1
DRY TEMP PV Display dry temperature PV.
○
2
WET TEMP PV Display wet temperature PV.
▶ PT : -10.0 ~ 110.0 ℃
▶ DCV : 1.000 ~ 5.000 V
○
3
HUMIDITY PV Display humidity PV.
○
4
WET ADJUST Set wet temperature bias.
○
5
DRY LIMIT Set limit of the dry temperature.
○
6
ADJUST
BUTTON
wet temperature = dry temperature
(
○
1 =
○
2 +
○
4 )
☞ It is use only at sensor type is “PT”.
○
7
CLEAR ADJUST
BUTTON
Initialize WET ADJUST : 0.0.
○
8
HIDDEN
BUTTON
Move Figure 2.12.1.4
▶ See 2.13 Password Input Screen
▶ See 2.12.1.4 Sensor BIAS Setting
☞ A case where sensor line is opened, Display “----.--“ and control output is fixed 0.0%.
○
1
○
2
○
3
○
4
○
5
○
7
○
8
○
6
