Santerno Sinus Penta - Figure 2: Connection Bars in S41-S42-S51-S52

SINUS PENTA
BASIC
USER MANUAL
22/97
Connection bars for S41-S42-S51-S52:
CAUTION
Connection bars
47/D
and
47/+
are short-circuited as a factory setting. The DC
choke, if any, shall be linked between bars
47/D
and
47/+
after removing the short-
circuit.
CAUTION
Please contact Elettronica Santerno if DC supply is to be applied to SINUS PENTA S41,
S42, S51, S52.
NOTE
Use terminals
47/+
and
49/–
if the external braking unit is to be installed.

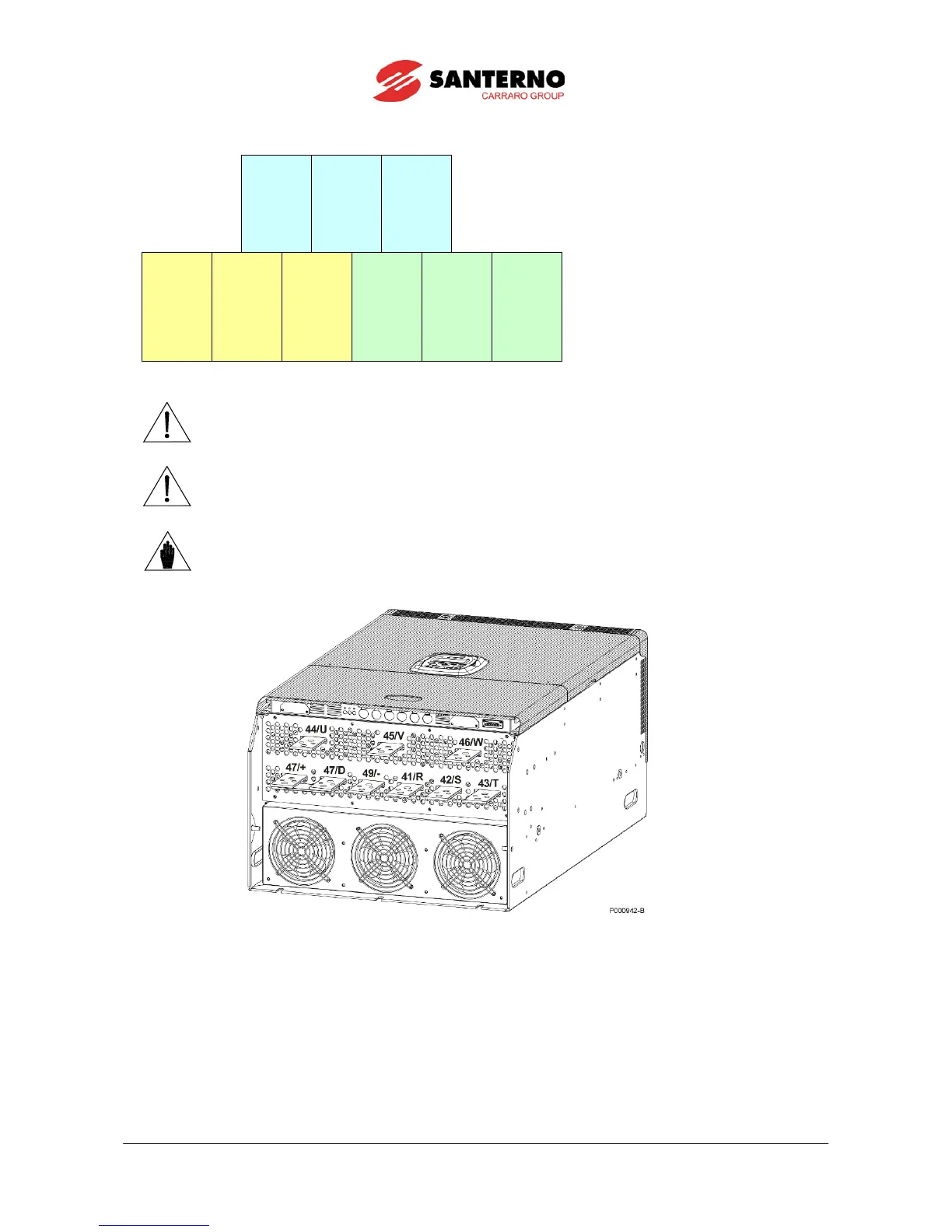

Figure 2: Connection bars in S41-S42-S51-S52
44/
U
45/
V
46/
W
47/
+
47/
D
49/
–
41/
R
42/
S
43/
T
