Santerno Sinus Penta - 4 Collegamenti; Schema Dei Collegamenti

MANUALE UTENTE
BASIC
SINUS PENTA
87/97
4. COLLEGAMENTI
4.1. Schema dei collegamenti

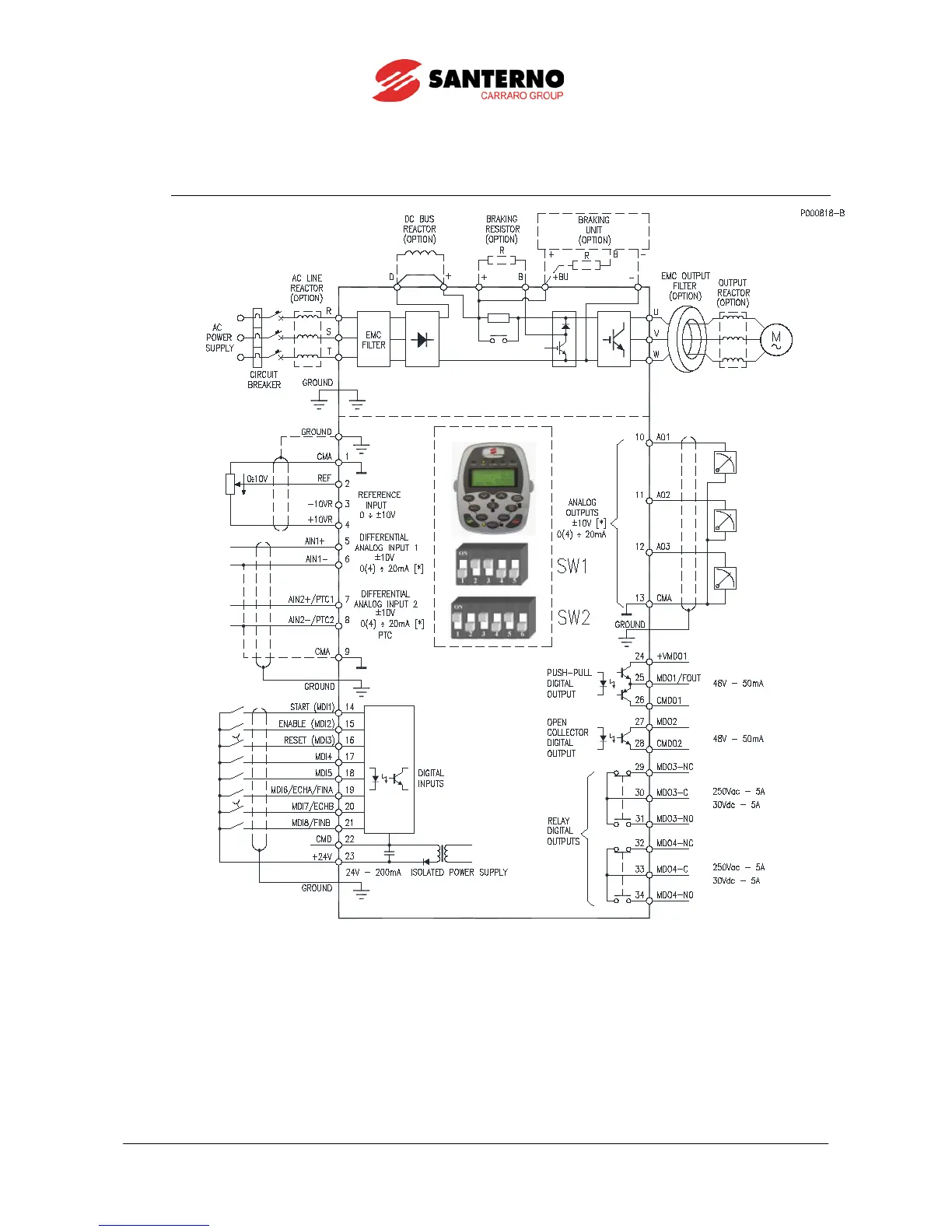

Figura 18: Schema dei collegamenti
SPEED
REFERENCE
SOURCE 1
2 ÷ 10kohm
SPEED
REFERENCE
SOURCE 2 /
[*] START
ENABLE
RESET (P/B)
MULTISPEED 0
MULTISPEED 1
SOURCE SELECTION
LOCAL / REMOTE (P/B)
CW / CCW
SPEED
REFERENCE
MOTOR
CURRENT
MOTOR
> 50 RPM
SPEED
INVERTER
INVERTER
BRAKE
NO ALARM
RUN OK
PID REFERENCE
[*] PID FEEDBACK
[*]
[*]
[*]
[*]
[*]
[*]
[*]
[*]
[*]
[*]
[*]
[*]
[*]
[*]
[*] FACTORY DEFAULTS
[*]
[**]
[**] PRECHARGE CIRCUIT (SEE BELOW)
SPEED
