BASIC
USER MANUAL
SINUS PENTA
23/97
2.3.4. CONNECTION BARS FOR S60 INVERTERS

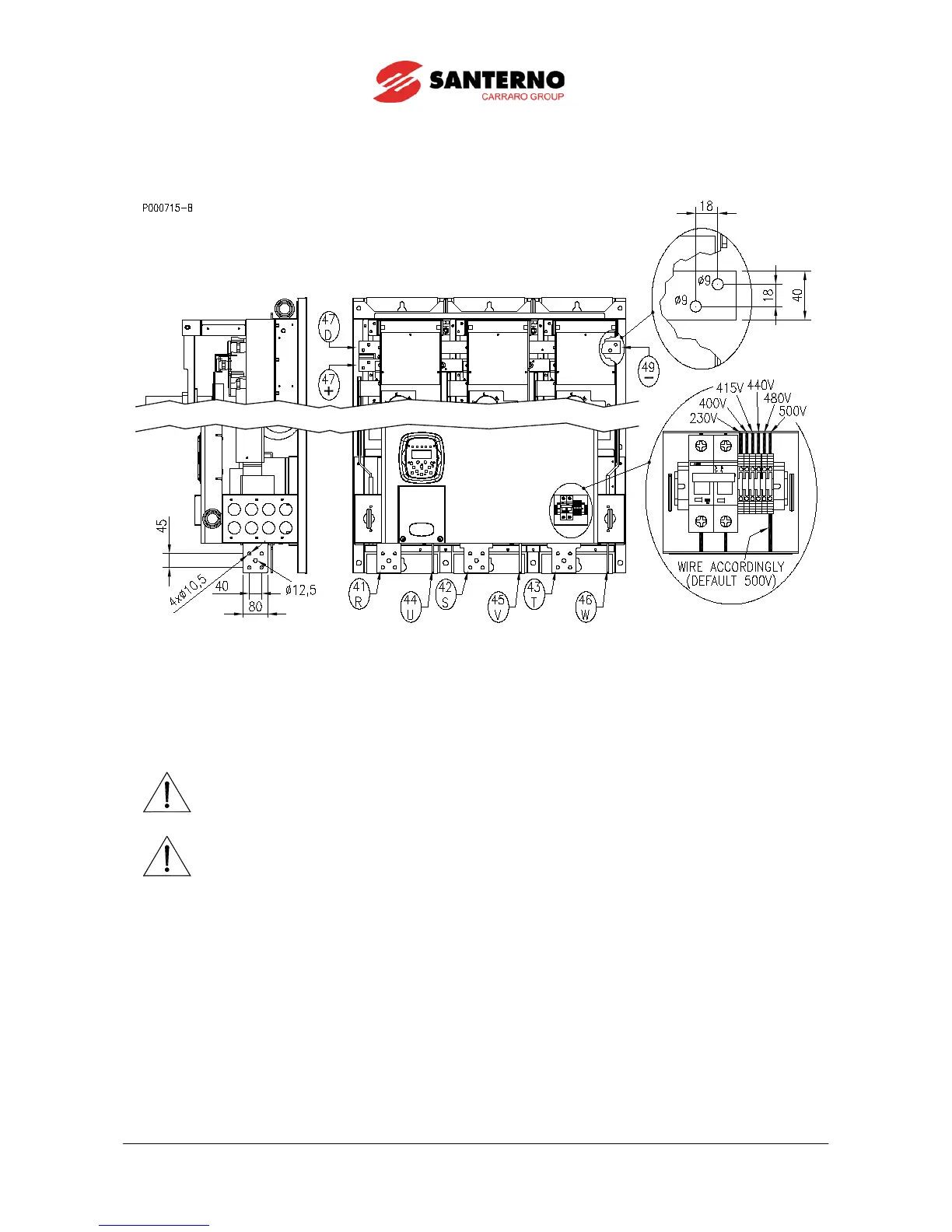

Figure 3: S60 Connection bars
shows the location and dimension of the bars connecting S60 SINUS PENTA drives to the mains and the motor. The figure
also shows the position and the wiring instructions for the built-in power supply transformer. The transformer must be
wired based on the rated supply voltage being used.
CAUTION
Connection bars
47/D
and
47/+
are short-circuited as a factory setting. The DC
choke, if any, shall be linked between bars
47/D
and
47/+
after removing the short-
circuit.
CAUTION
Please contact Elettronica Santerno if DC supply is to be applied to SINUS PENTA S60.
