Sanyo PLC-SU20E

-15-

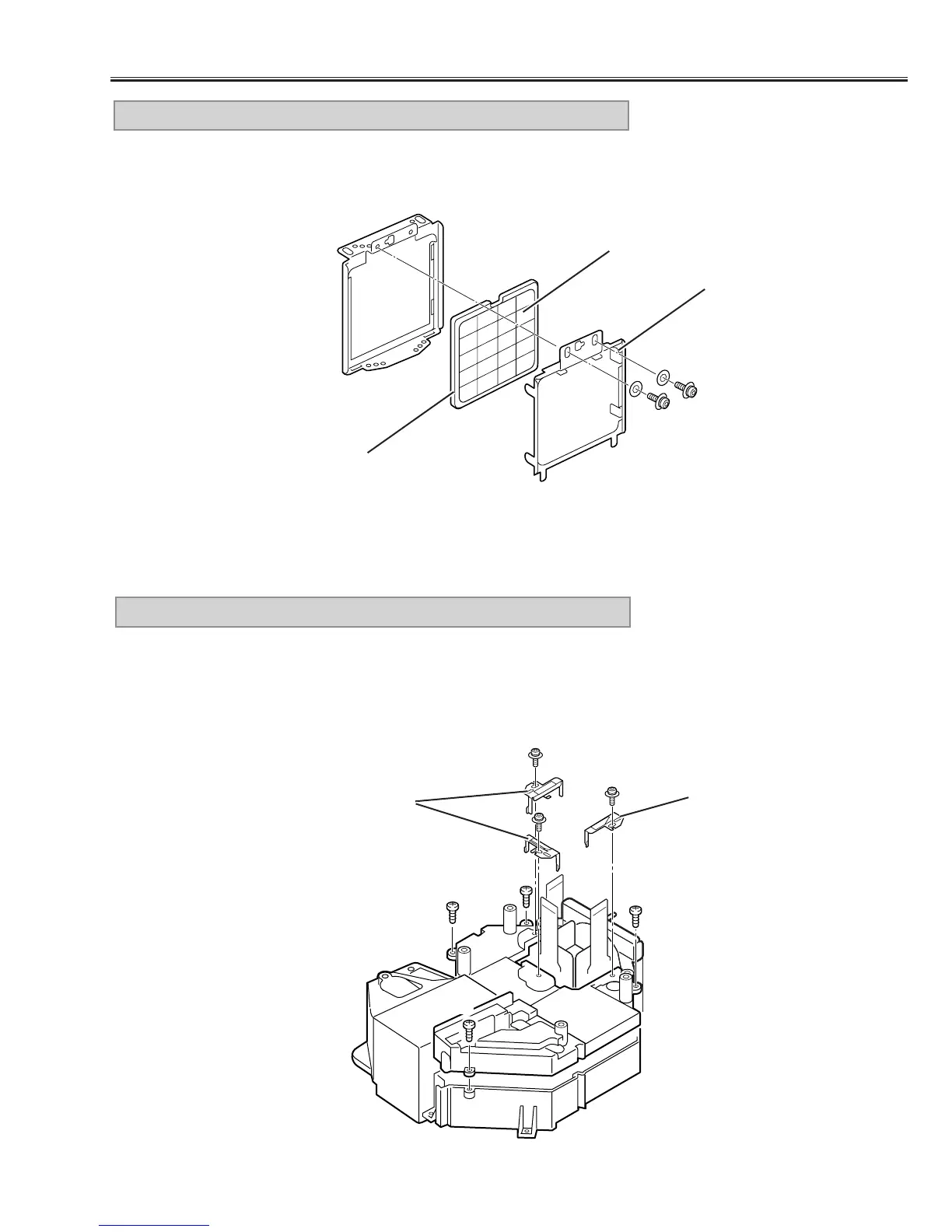

Remove 2 screws (A) and take the Integrator Lens-IN off from the lens
holder.
3. INTEGRATOR LENS-IN ASS’Y DISASSEMBLY
1) Remove each screw (A) and remove the Polarized Glass Holders.
2) Remove 4 screws (B) and take the Optical Unit Top off.
4. OPTICAL UNIT TOP REMOVAL
A
A
Lens Holder
Lens Surface
Integrator Lens-IN
Fig.4
Fig.5
Optical Pats Disassemblies
A
A
A
B
B
B
B
Polarized Glass Holder
Polarized Glass Holder
