Sanyo PLC-SU20E

-16-

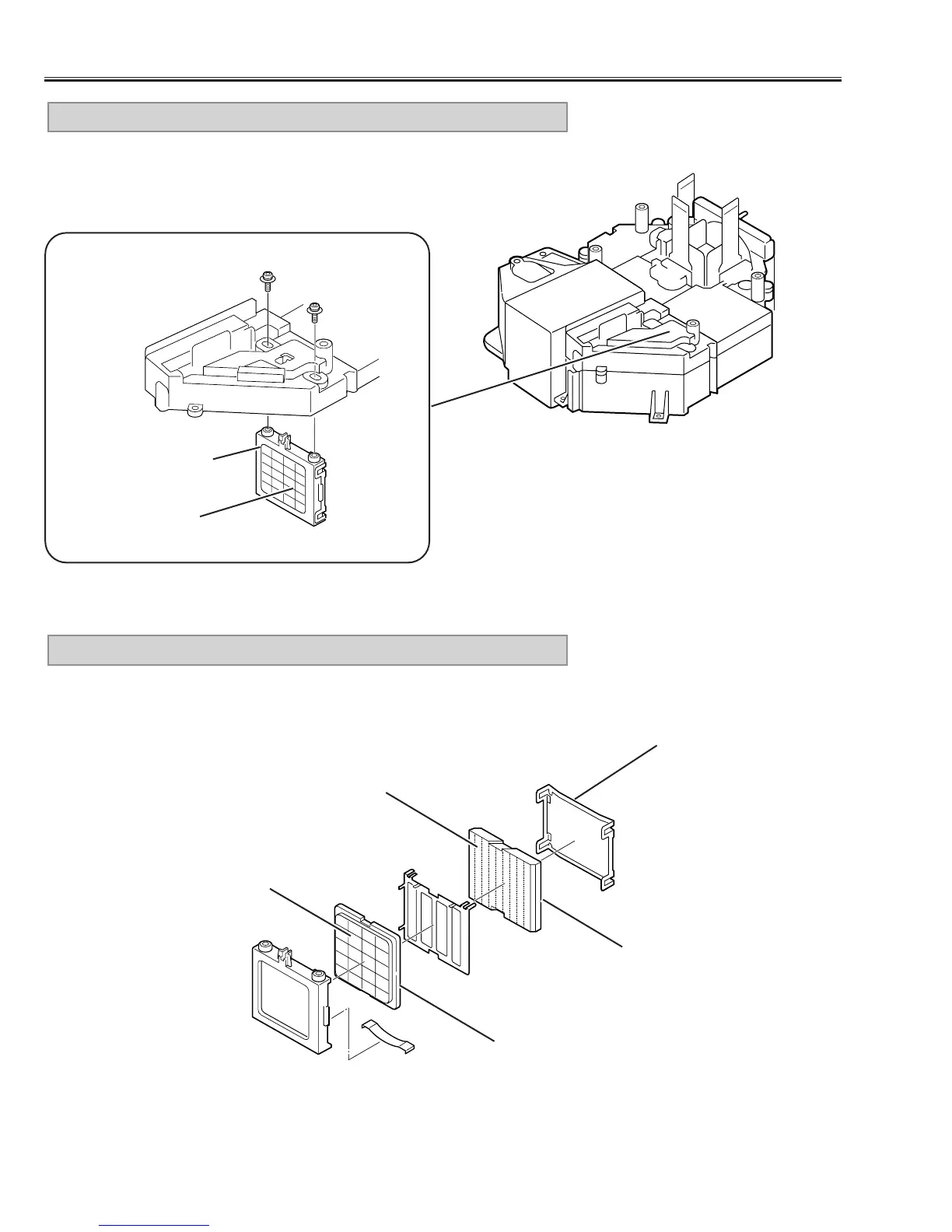

Optical Parts Disassemblies
Remove 2 screws (A) and pull the Integrator Lens-OUT Ass’y downward.
5. INTEGRATOR LENS-OUT ASS’Y REMOVAL
Integrator Lens-OUT
Ass’y
Lens Surface
A
A
Fig.7
Fig.6
Remove the Lens Holder and disassembly the Integrator Lens-OUT Ass’y.
6. INTEGRATOR LENS-OUT ASS’Y DISASSEMBLY
Lens Holder
Prism Assy
(Beam Splitter)
Fig.8
Lens Surface
Integrator Lens-OUT
Surface attached the
phase sheet comes to
the lens holder.
