-13-
Mechanical Disassembly
Fig.5

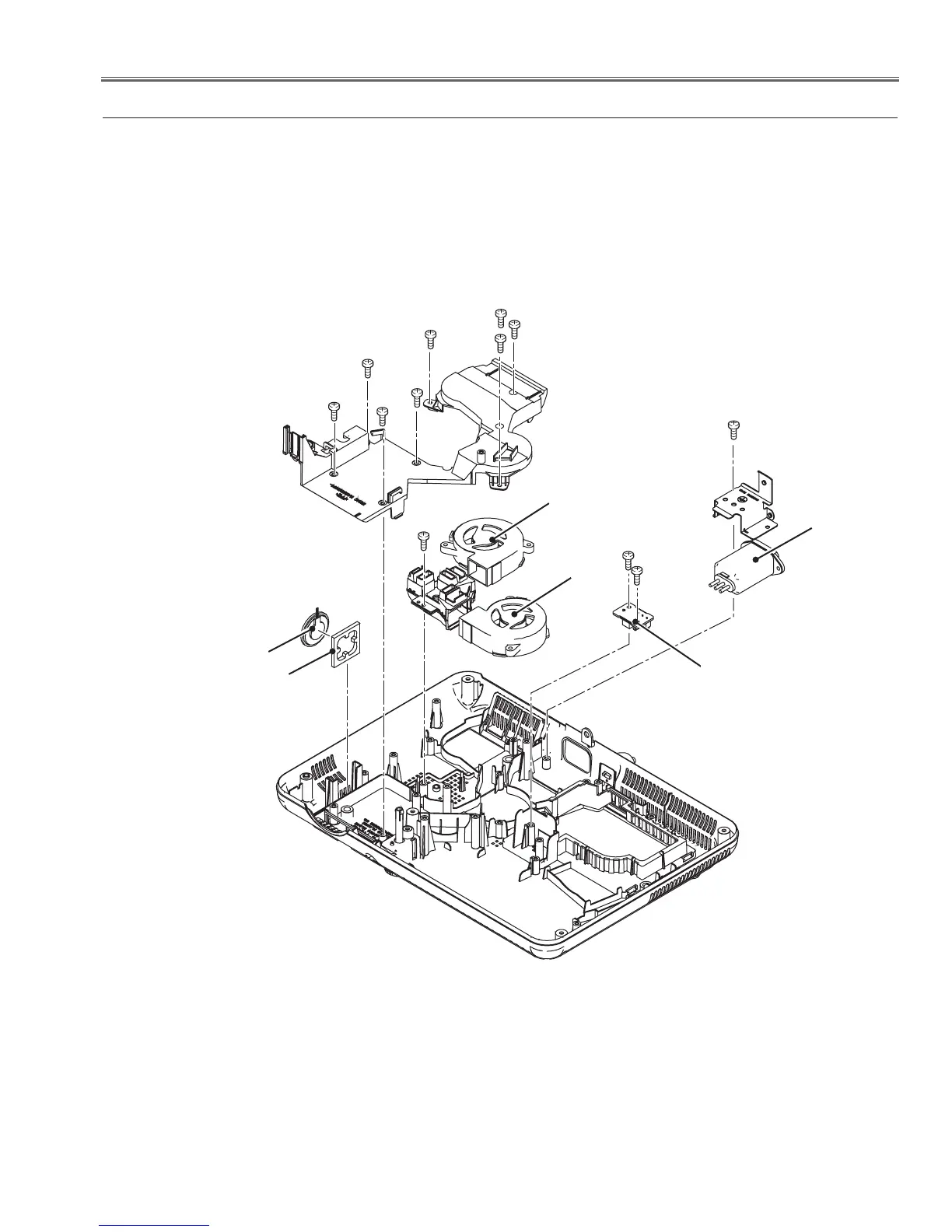

b Fans(FN903, FN904), Speaker, Noise Filter, MSW Board removal
Noise
Filter
Spacer
FN904
(T3x6)x4
(T3x12)x4 (Black)
(T3x8)
(T3x8)
(T3x8)x2
MSW Board
FN903
Speaker
