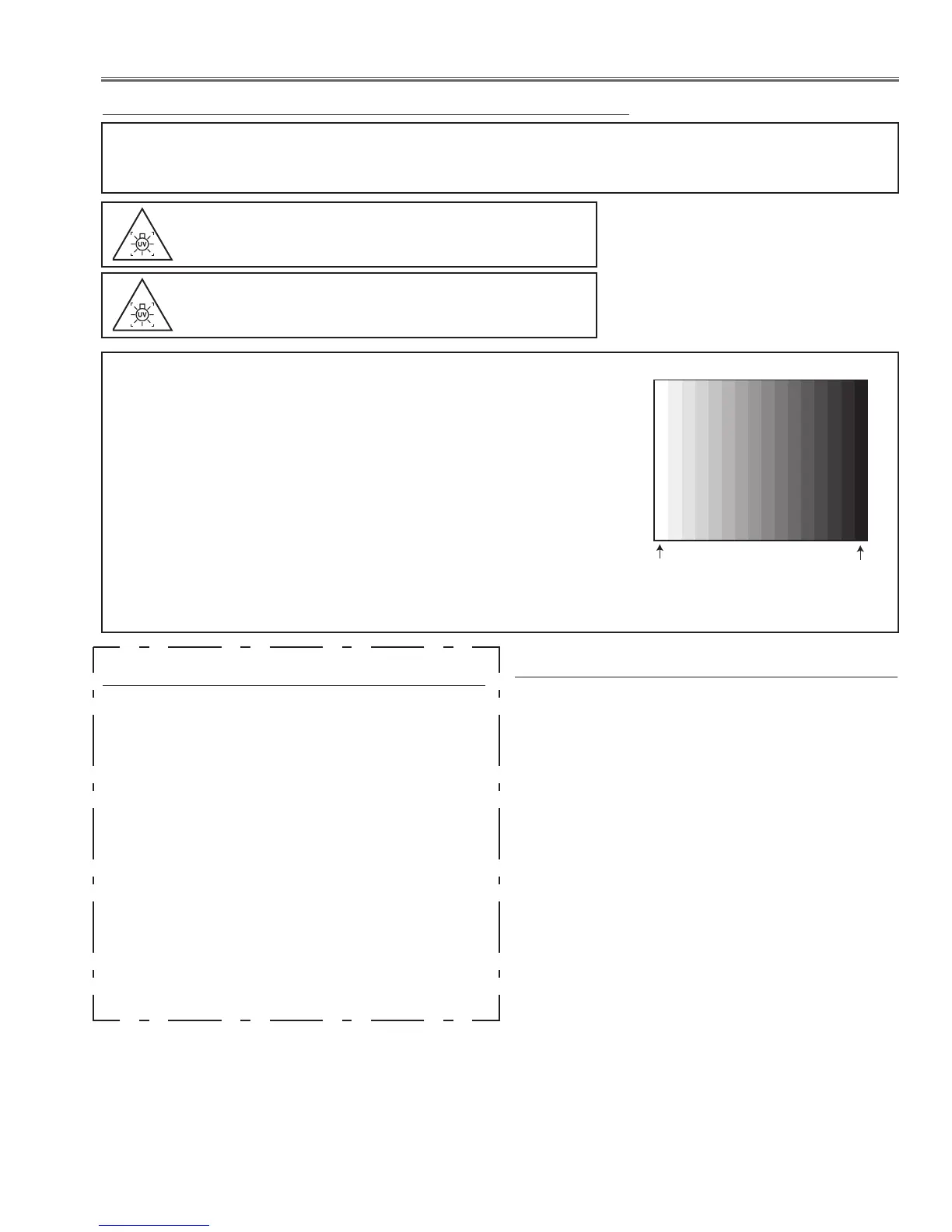

-25-
[Adjustment Condition]
● Input signal
Video signal .................................
1.0Vp-p/75W terminated, 16 steps gray scale
(Composite video signal)
Computer signal ........................... 0.7Vp-p/75W terminated, 16 steps gray scale
pattern
Component Video signal ........... 0.7Vp-p/75W terminated, 16 steps gray scale
(Component video signal with 480p, 575p,
720p or 1080i format)
● Picture control mode.............. “STANDARD” mode unless otherwise noted.
Note:
* Please refer to “Service Adjustment Menu Operation” for entering the service mode and adjusting the service data.
Circuit Adjustments
CAUTION: The each circuit has been made by the fine adjustment at factory. Do not attempt to adjust the following adjust-
ments except requiring the readjustments in servicing otherwise it may cause loss of performance and product
safety.
Electrical Adjustments
16 steps gray scale pattern
After replacing the Power Board readjust the Output voltage
adjustment as follows.
1. Connect a digital voltmeter to pins 1 (+) and 3 (-) of K6D.
2. Adjust the voltage by using VR611 as following.
AC Input Reading
230V 380V ±2V
Caution:
Be sure to connect the lamp when taking this adjustment.
* This adjustment is not required even if the power board
is replaced because this adjustment is carried out before
parts shipment.
Output Voltage adjustment
* Before setting, you need to check which type of LCD panel
is placed on the projector according to the item "LCD Panel/
Prism Ass'y removal" in the chapter "Optical Parts Disassem-
bly".
1. Enter the service mode.
2. Panel Type Check
Select group no. “290”, item no. “0”. Check the data value
as follows;
Data value: 0 For L-Type of LCD Panel
Data value: 20 For R-Type of LCD panel
3. Panel Type Setting
Select group no. “290”, item no. “1” and change data
value from 10 to 0 or 20 depending on your LCD Panel
type. When the data value reaches 0 or 20, it returns to 10
quickly. The gamma-characteristics changes according to
your selection.
z Panel Type Check and Setting
WARNING : USE UV RADIATION EYE AND SKIN PRO-
TECTION DURING SERVICING.
CAUTION:
To prevent suffer of UV radiation, those adjustments must be
completed within 25 minutes.
To Next Page
