Sanyo PLC-XE32

-23-

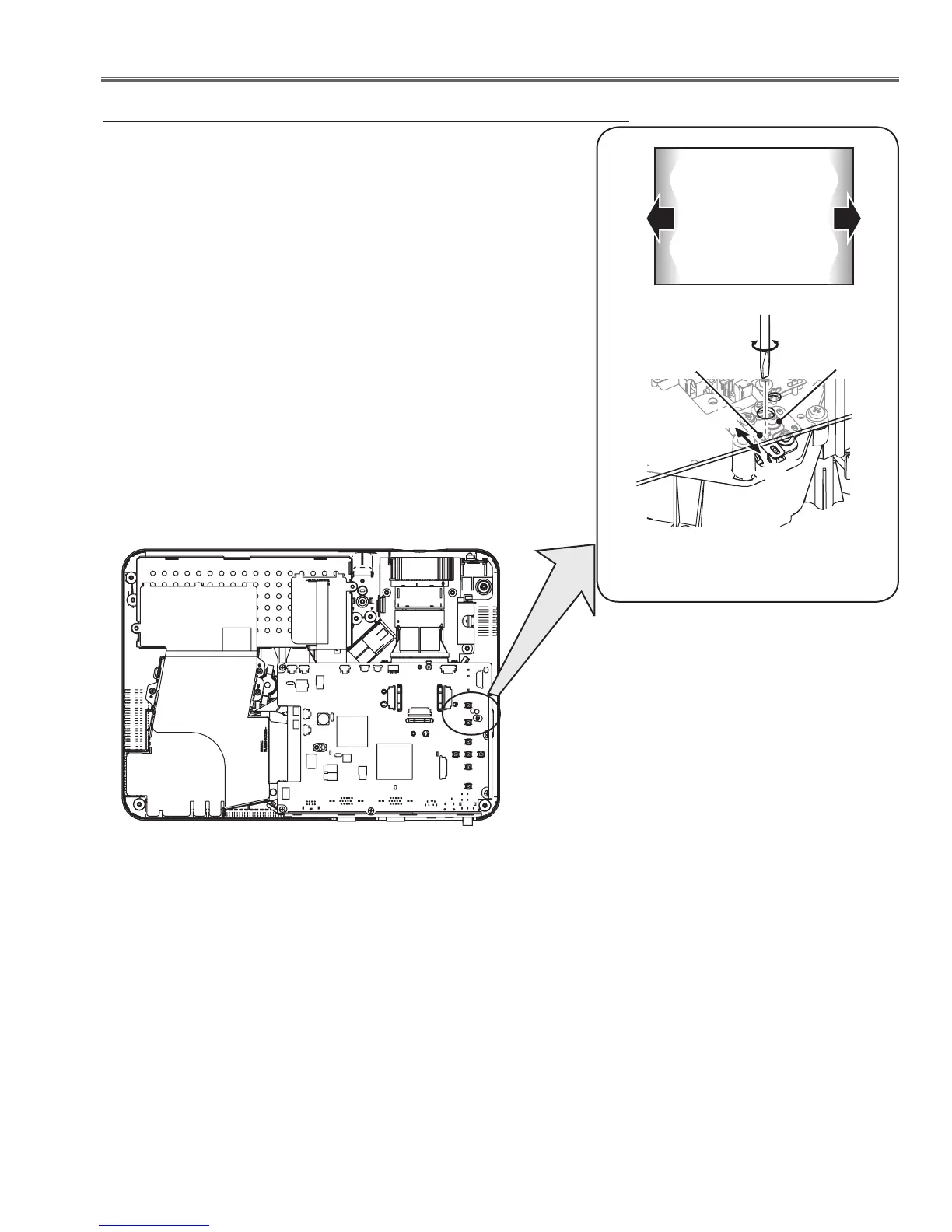

Fig.3
A
Slot B
a
b
b
Moving of slot B
a
White
1 Turn the projector on by a state of without FPC cables.
2 Project all of lights on the screen.
3 Adjust the adjustment base of relay lens assy to make color uniformity in
white.
If the shading appears on the left or right of the screen as shown in Fig.3,
loosen 1 screw A, and adjust the slot B to make color uniformity in white
by using a slot screwdriver.
4 Tighten the screws A to fix the relay lens unit.
Relay lens-Out adjustment
Optical Adjustments
