Optical Pats Disassembly

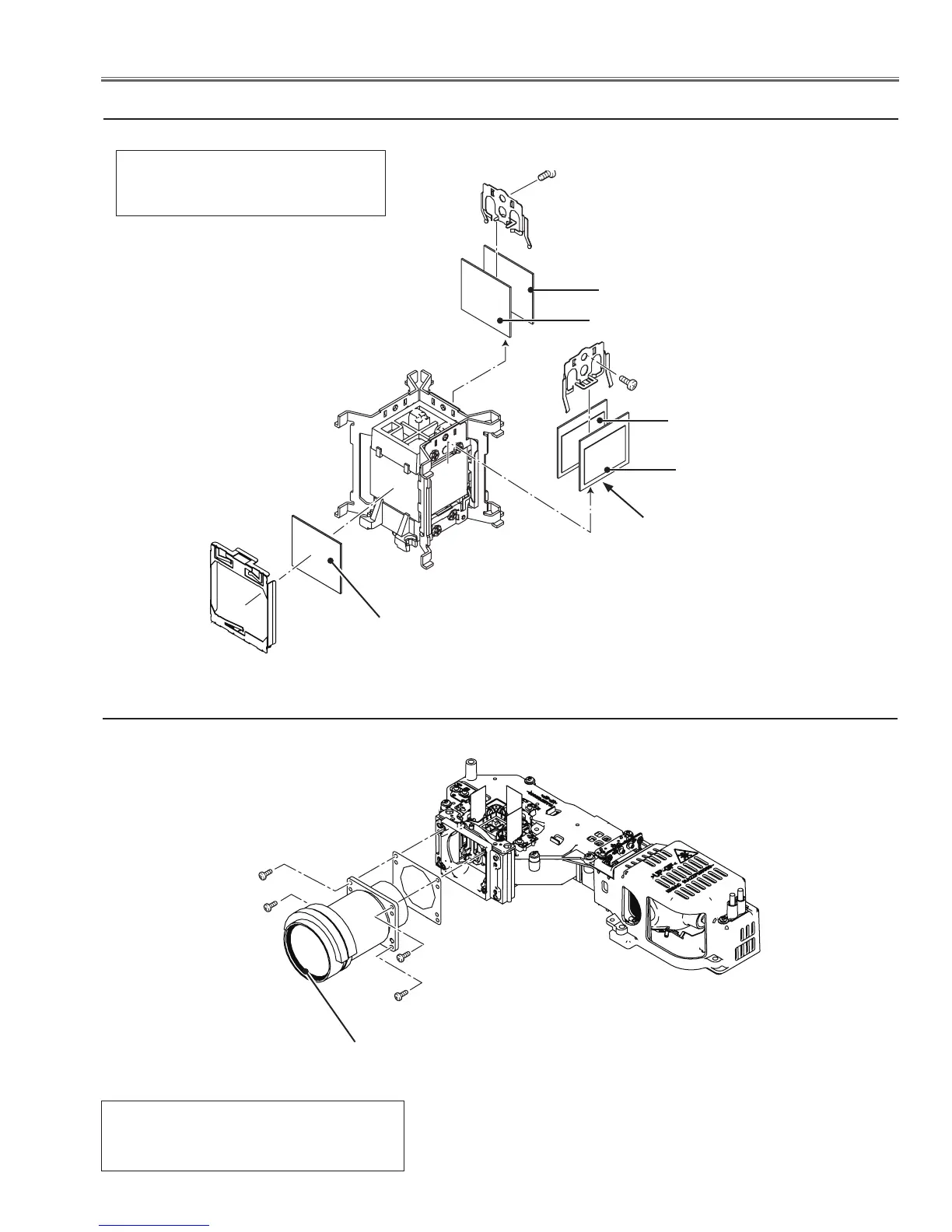

b Polarized glass, Pre-polarized glass removal
Polarized Glass(G)
Pre-Polarized Glass(G)
* Mount the polarized glasses as the film
attached side comes to the LCD panel
side.
(M2x2)
(M2x2)
Film
(Blue)
(Red)
(Green)
Pre-Polarized Glass(B)
Fig.5
n Projection lens removal
(M2.5x8)x4
Projection lens
Polarized Glass(B)
* Before removing the Projection Lens, it is re-
quired to remove the Optical Unit from the
cabinet bottom.
Fig.6
Optical filter (BK7)
To Next Page
