-9-
z Cabinet Top & R/C Board removal
Mechanical Disassembly
Mechanical disassembly should be made following procedures in numerical order.
Following steps show the basic procedures, therefore unnecessary step may be ig-
nored.
Caution:
The parts and screws should be placed exactly the same position as the original oth-
erwise it may cause loss of performance and product safety.
Screws Expression
(Type Diameter x Length) mm
T type M Type
(M3x8)

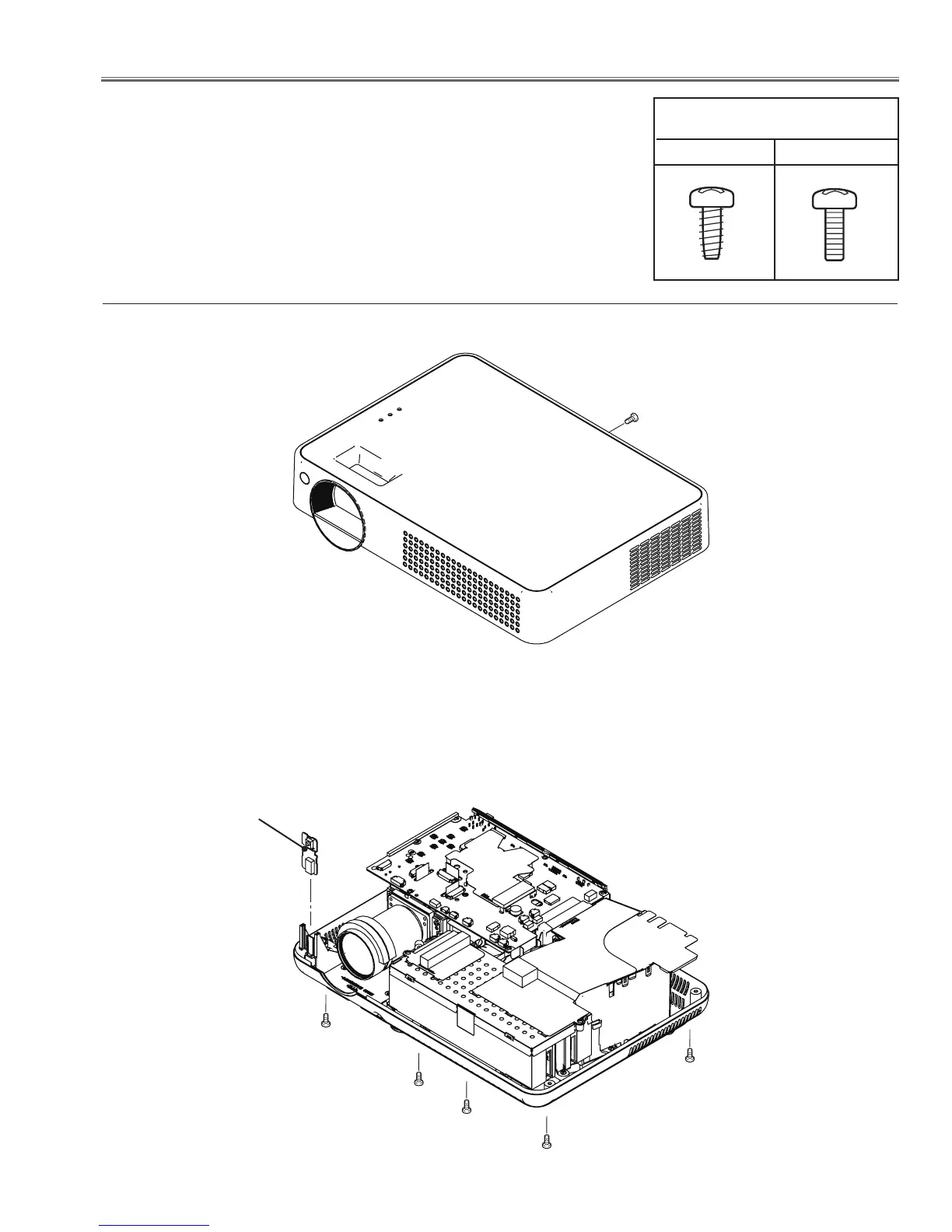

R/C Board
Fig.1
(M3x8)x5
To Next Page
