Sanyo PLC-XE32

-15-

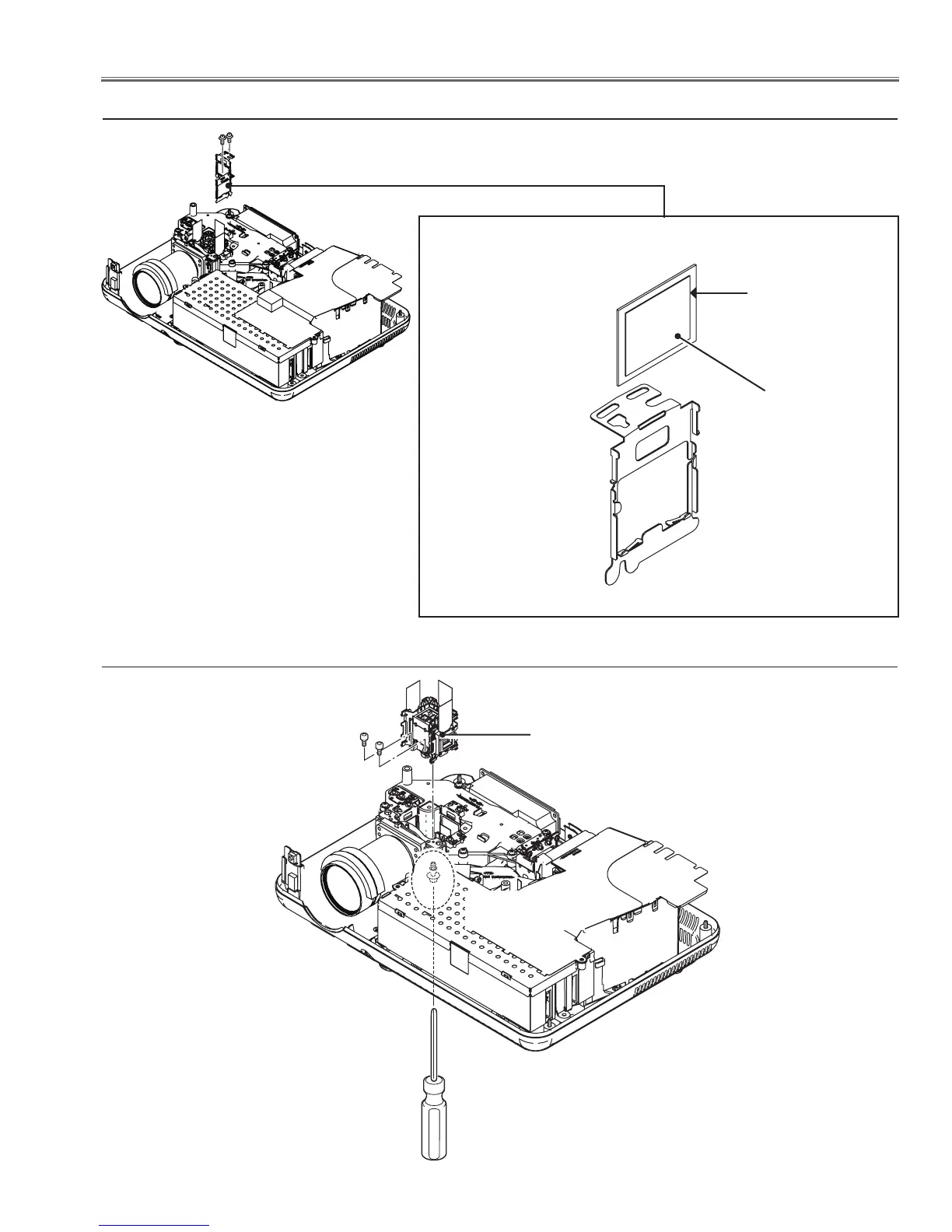

Optical Pats Disassembly
c Polarized glass-in disassembly
Polarized glass
Polarized glass-in Ass'y
(M2.5x5)x1
Fig.3
Film side
LCD Panel/ Prism
Ass’y
Fig.4-1
v LCD Panel/Prism Ass’y removal
(M2.5x4)x2
(M3x10)
(Bottom side)
