Part Names and Functions
Back
⑧
⑧
⑩ ⑪
⑨
Front
Bottom
⑮
⑧

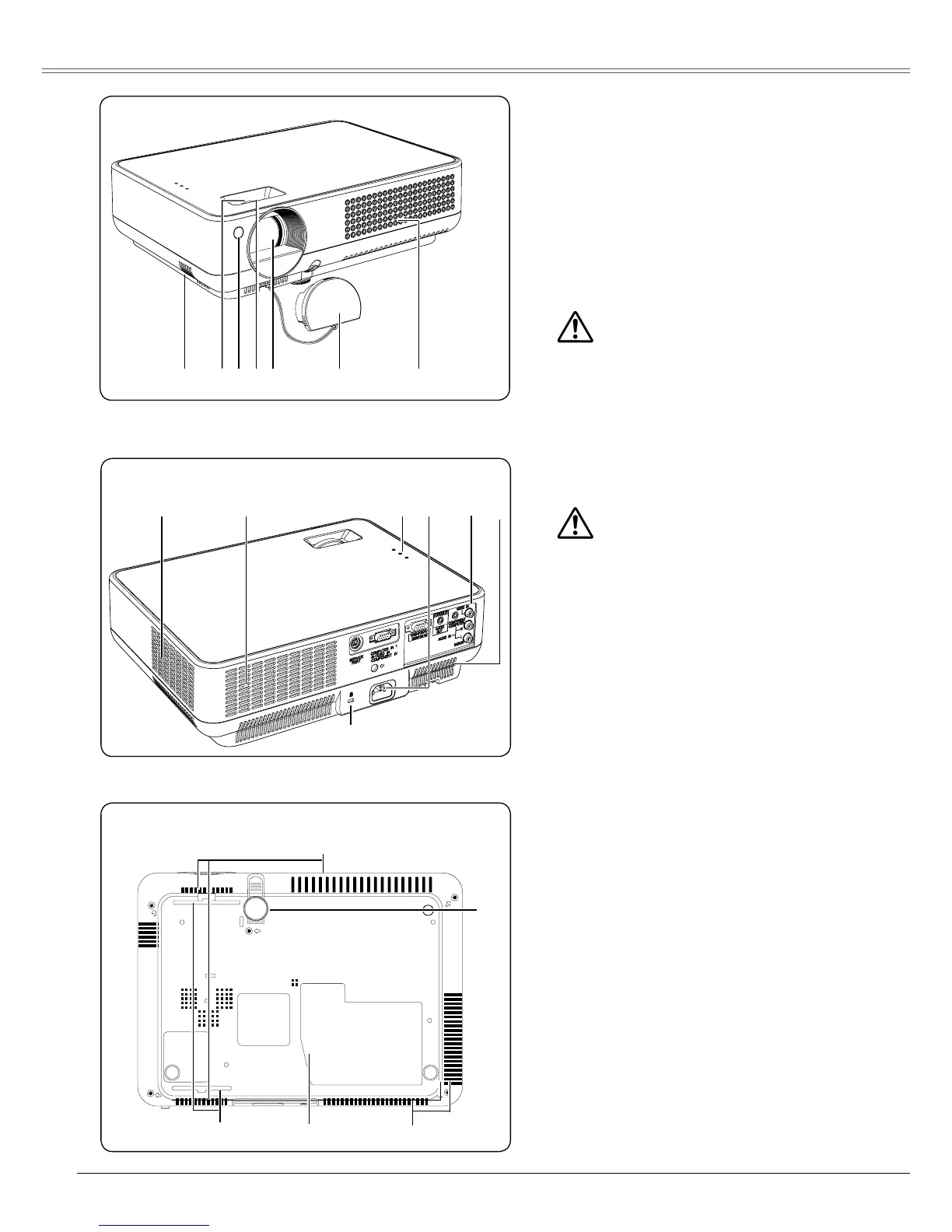

① Speaker
② Zoom Ring (rear side)
③ Infrared Remote Receiver
④ Focus Ring (front side)
⑤ Projection Lens
⑥ Lens Cap
⑦ Air Intake Vent
⑧ Exhaust Vents
CAUTION
Hot air is exhausted from the exhaust vent.
Do not put heat-sensitive objects near this
side.
⑨ Indicators
⑩ Power Cord Connector
⑪ Terminals and Connectors
⑫ A i r I n t a k e Ve n t s ( b a c k a n d
bottom)
⑬ Adjustable Foot
⑭ Lamp Cover
⑮ Air Filters
Kensington Security Slot
This slot is for a Kensington lock used to
deter theft of the projector.
*Kensington is a registered trademark of ACCO
Brands Corporation.
⑦
⑫
⑬
⑭

①
⑤
⑦
③
④
②
⑥
CAUTION
Do not turn on a projector with lens cap
attached. High temperature from light
beam may damage lens cap and result in
fire hazard.

Sanyo PLC-XE32 Specifications

General

Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	400:1
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±20 °
Lamp type	UHP
Lamp power	200 W
Light source type	Lamp
Focus	Manual
Focal length range	22.5 - 27 mm
I/O ports	D-Sub15 S-Video Composite Monitor out D-sub15 Audio out Service Port Mini DIN 8-pin
Dimensions (WxDxH)	330 x 237 x 80 mm
F-number (relative aperture)	1.65
Power consumption (typical)	205 W

Weight and Dimensions

Weight	2900 g
