KH6-XF60A00
-150-

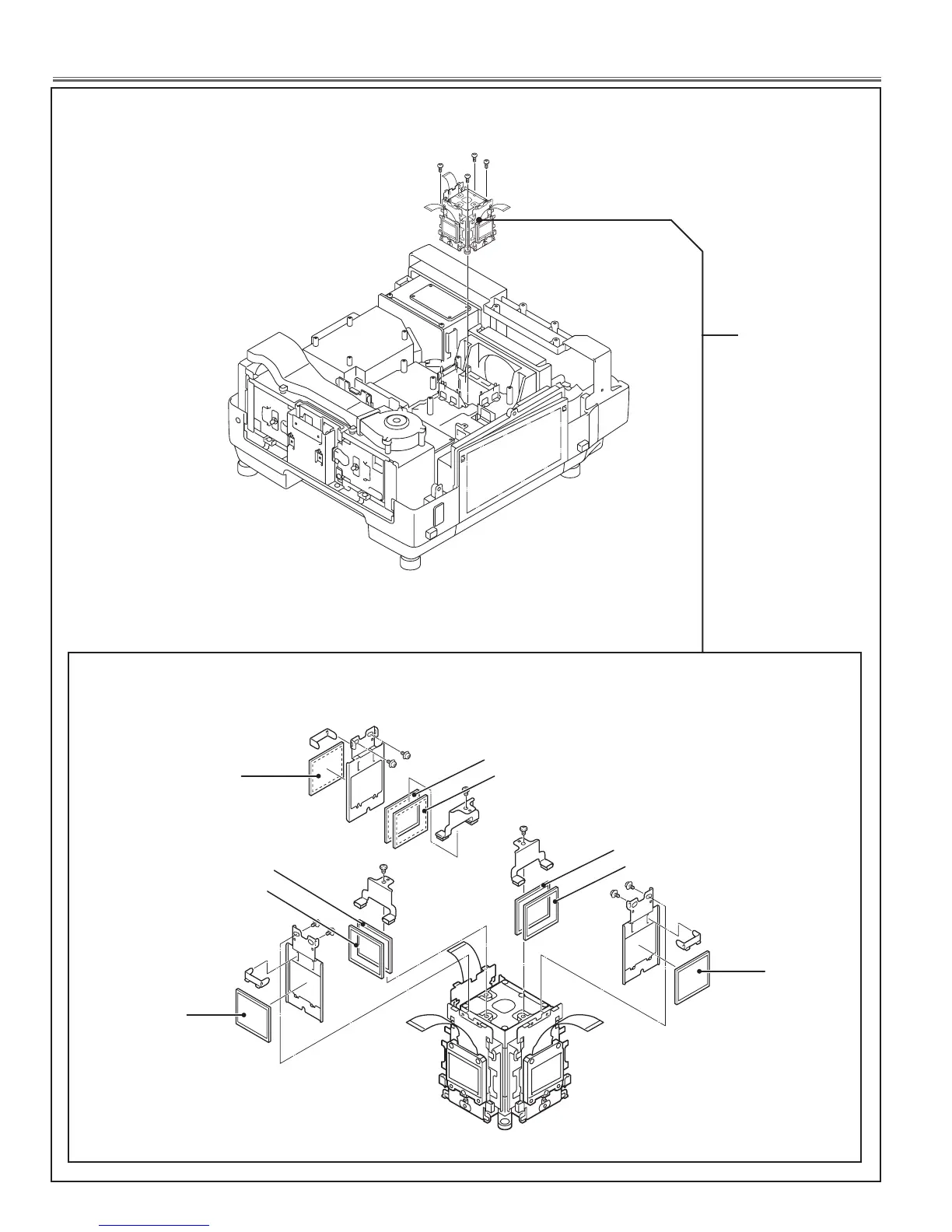

Mechanical Parts List
-150-
L01
LCD/Prism Ass'y
L01-1
L01-4
L01-7
L01-8
L01-5
L01-2
L01-3
L01-6
L01-9
(Blue)
(Green)
(Red)
Optical Parts Location
Prism Ass'y
S06
