Sanyo PLC-XF60A User Manual

- 5 -

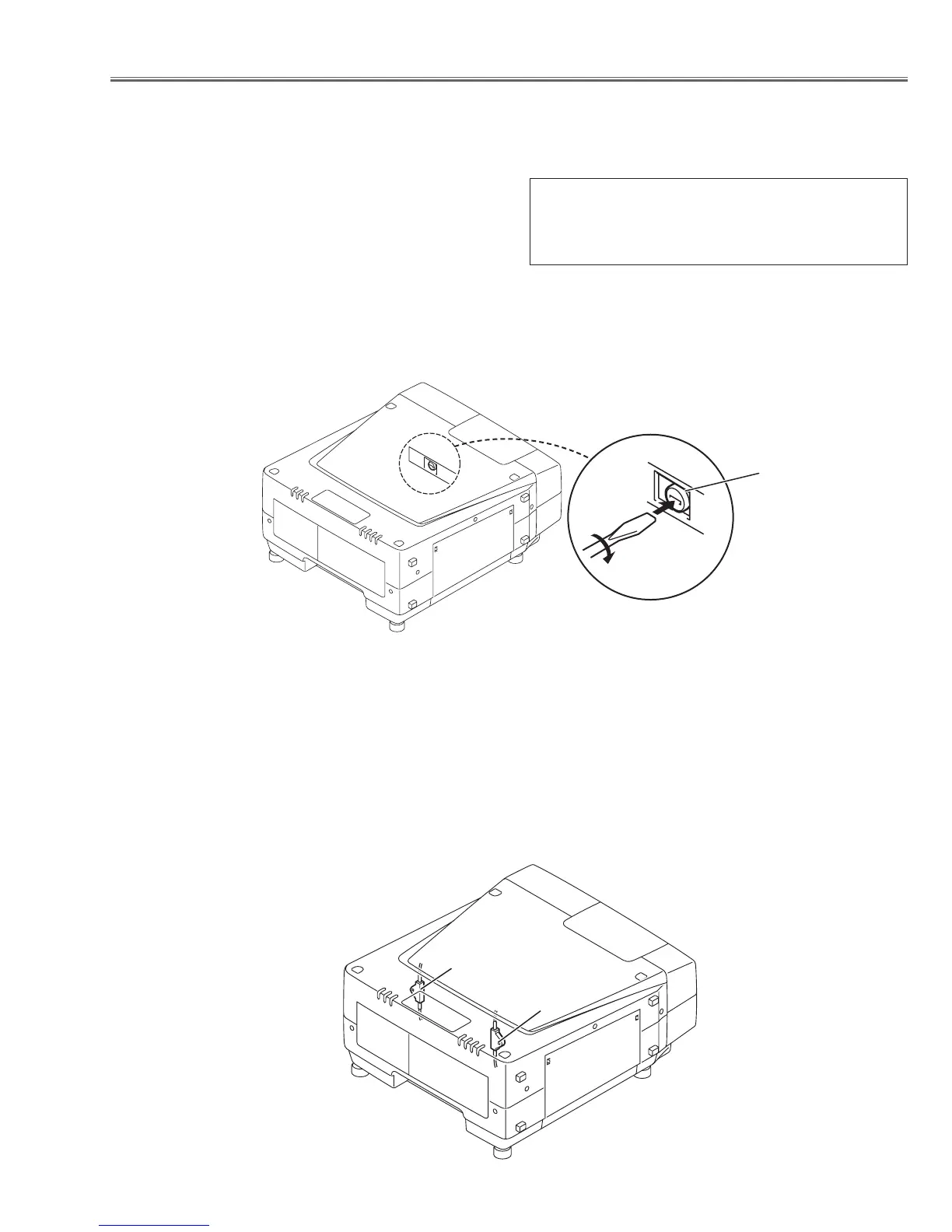

This projector provides the following safety protections to operate in safety. If the abnormality occurs inside the projec-
tor, it will automatically turn off by operating one of the following protection circuits.
1. Fuse
The fuse is located inside of the projector. When both of
LAMP and the READY indicators are not lighting, the fuse
may be opened. Check the fuse as following steps.
It should be used the specified fuse as right;
How to replace the fuse
1 Turn the projector upside down and remove the cabinet bottom cover following to “Mechanical Disassemblies [19]”.
2 Remove the fuse from fuse holder.
Safety Protections
2. Thermal switches
There are some thermal switches inside of the projector to detect the internal temperature rising abnormally. When
the internal temperature around the lamps reaches a specified value, the projector turns off immediately for product
safety.
- Lamp1 thermal switch (SW911)
- Lamp2 thermal switch (SW912)
FUSE PART NO. : 423 028 4209
TYPE 15A 300V FUSE
SOC TYPE SHV14 15A N4
Fuse
SW912
SW911

Sanyo PLC-XF60A Specifications

General

Vertical scan range	48 - 120 Hz
Horizontal scan range	15 - 120 kHz
Projection technology	LCD
Contrast ratio (typical)	1300:1
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	40 °
Keystone correction, horizontal	30 °
Aspect ratio	4:3
Compatibility	UXGA/SXGA/XGA/SVGA/VGA/Mac
Dimensions (WxDxH)	518 x 252 x 606 mm
Power requirements	AC 100-240 V, 50/60 Hz
Lamp type	UHP
Lamp power	300 W
Light source type	Lamp
Noise level	39 dB
Dot clock scanning frequency	230 MHz
Microphone in	Yes
S-Video inputs quantity	1
Power consumption (typical)	900 W
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	24000 g
