Sanyo PLC-XU300 User Manual

16
Installation

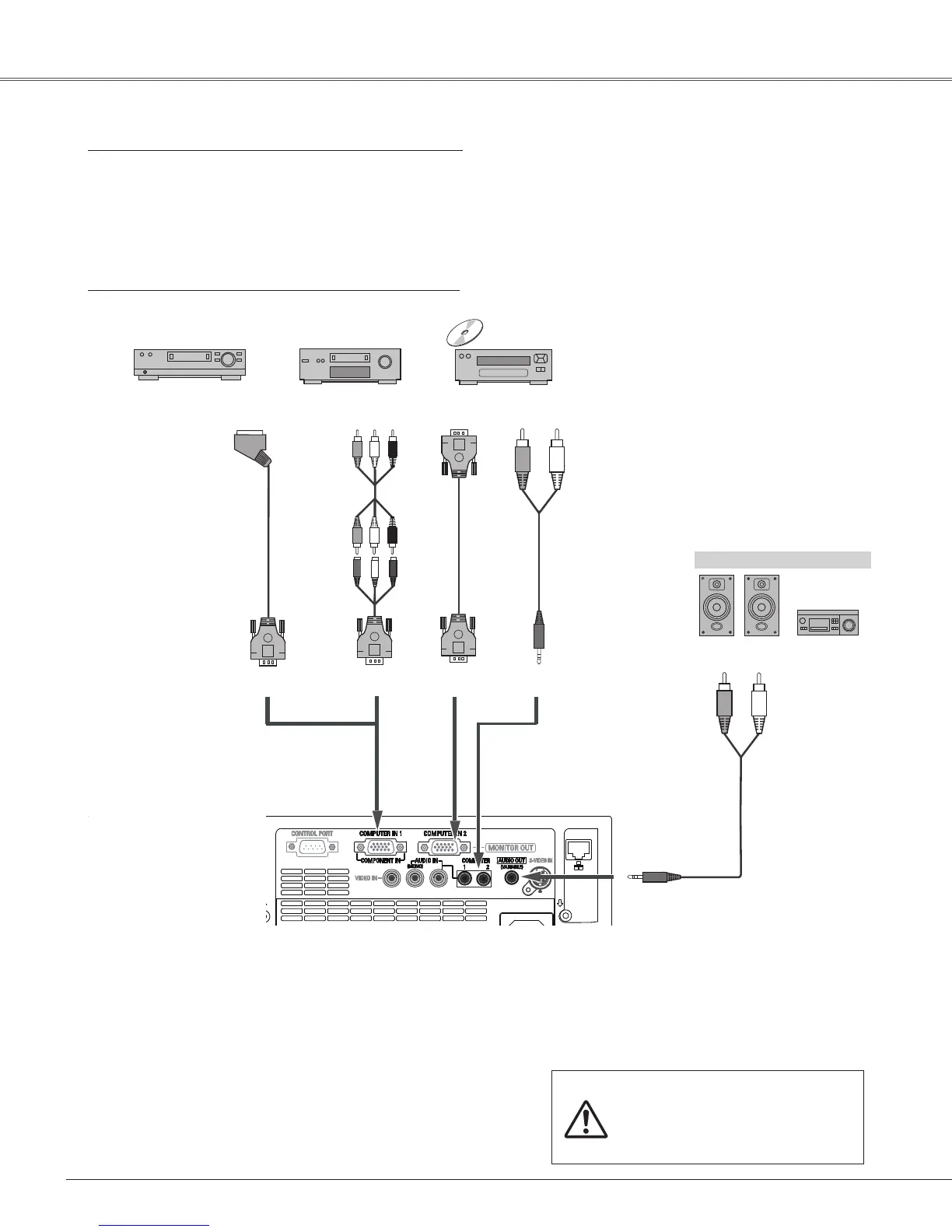

Connecting to Component Video Equipment
✔Note:
• When the AUDIO OUT is plugged-in, the projector's
built-in speaker is not available.
• See page 73 for ordering optional cables.
Unplug the power cords of
both the projector and external
equipment from the AC outlet
before connecting cables.
L R
External Audio Equipment
COMPUTER IN 1 /
COMPUTER IN 2 AUDIO IN
Audio cable
(stereo)
Audio
cable
(stereo)
Audio Input
Component Video Output
(Y, Pb/Cb, Pr/Cr)
RGB Scart 21-
pin Output
Audio Output
Scart-VGA
cable
Component-
VGA cable
AUDIO OUT
(stereo)
Component
cable
COMPUTER IN 1/ COMPONENT IN
Cables used for connection
• Audio Cables
• Scart-VGA Cable
• VGA Cable
• Component Cable
• Component-VGA Cable
(Cables are not supplied with this projector.)
Monitor Input
COMPUTER IN 2 /
MONITOR OUTPUT
VGA cable

Sanyo PLC-XU300 Specifications

General

Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±30 °
Focus	Manual
Digital zoom	16 x
Aspect ratio	4:3
RS-232 ports	1
Compatibility	U-XGA S-XGA S-XGA+ W-XGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	326 x 231.6 x 92.6 mm
Power requirements	100 - 240 V
F-number (relative aperture)	1.60
Lamp type	UHP
Lamp power	225 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
Headphone outputs	2
Serial interface type	RS-232
Power consumption (standby)	3.2 W
Power consumption (typical)	287 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	2600 g
Package weight	5400 g
