Part Names and Functions

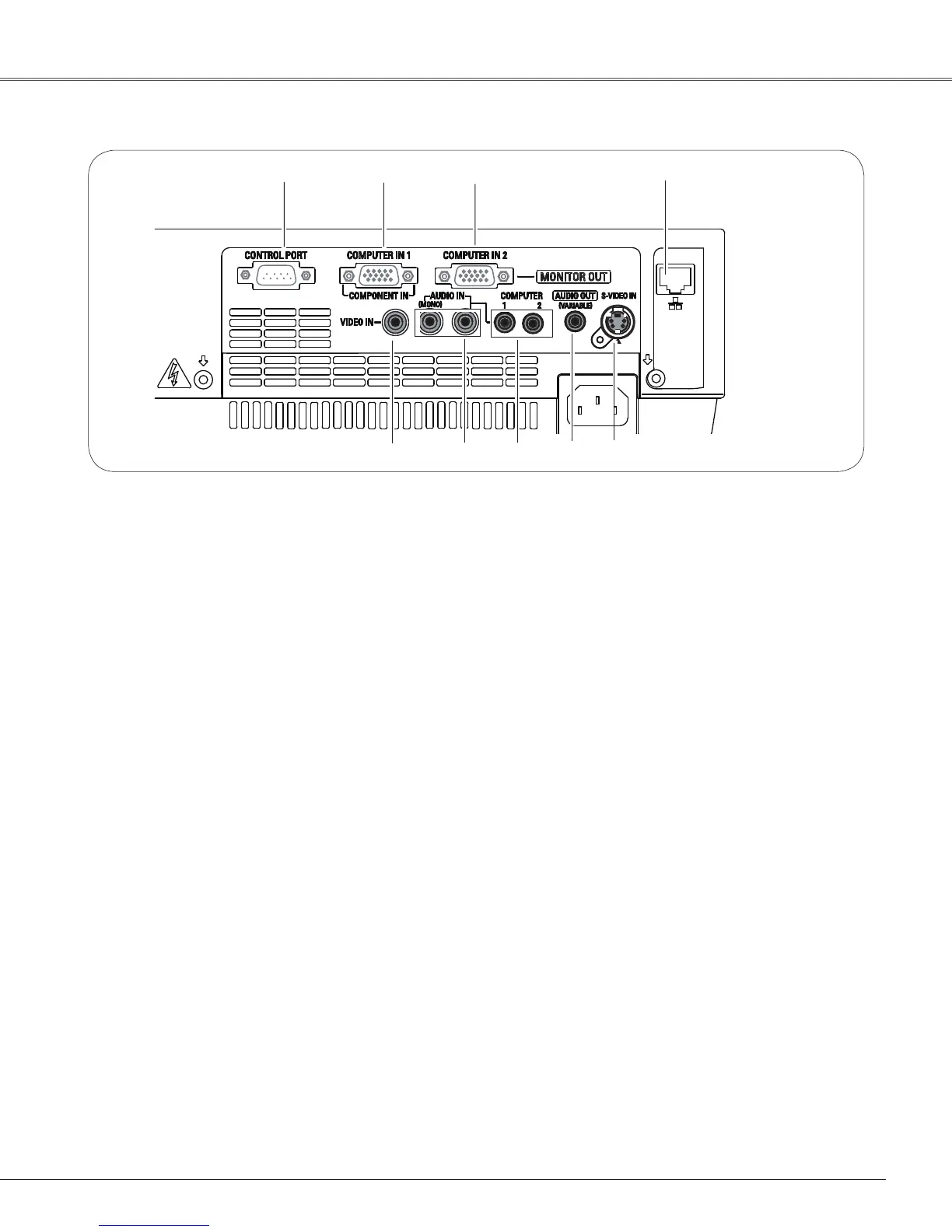

Rear Terminal
⑤ S-VIDEO IN
Connect the S-VIDEO output signal from video
equipment to this jack (p.15).
⑧ AUDIO IN
Connect the audio output signal from video
equipment connected to
⑤ or ⑨ to this jack.
For a mono audio signal (a single audio jack),
connect it to the L (MONO) jack (p.15).
⑦ COMPUTER 1 / COMPUTER 2 AUDIO IN
Connect the audio output (stereo) from a
computer or video equipment connected to
②
or ③ to this jack. (pp14, 16)
⑨ VIDEO IN
Connect the composite video output signal to
this jack (p.15).
② COMPUTER IN 1 / COMPONENT IN
Connect output signal from a computer, RGB scart
21-pin video output or component video output to
this terminal(pp.14,16).
⑥ AUDIO OUT (VARIABLE)
Connect an external audio amplifier to this jack
(pp.14-16).
This terminal outputs sound from AUDIO IN
terminal (⑦ or ⑧).
④ LAN Connection Terminal
Connect the LAN cable (refer to the owner’s manual
of "Network Set-up and Operation").
② ③① ④
⑤
⑨
⑥⑧
① CONTROL PORT
When the projector is controlled by a computer,
connect to this jack with serial control cable.
③ COMPUTER IN 2 / MONITOR OUT
– Connect computer output to this terminal (p.14).
– This terminal can be used to output the incoming
analog RGB and Component signal from
COMPUTER IN 1/COMPONENT IN terminal to the
other monitor (pp.14,16).
⑦

Sanyo PLC-XU300 Specifications

General

Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 100 kHz
Projection technology	LCD
Contrast ratio (typical)	500:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Keystone correction, vertical	±30 °
Focus	Manual
Digital zoom	16 x
Aspect ratio	4:3
RS-232 ports	1
Compatibility	U-XGA S-XGA S-XGA+ W-XGA XGA S-VGA VGA Mac
Dimensions (WxDxH)	326 x 231.6 x 92.6 mm
Power requirements	100 - 240 V
F-number (relative aperture)	1.60
Lamp type	UHP
Lamp power	225 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	2500 h
Headphone outputs	2
Serial interface type	RS-232
Power consumption (standby)	3.2 W
Power consumption (typical)	287 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C

Weight and Dimensions

Weight	2600 g
Package weight	5400 g
