Sanyo PLC-XU4000 Service Manual

-21-
Optical Parts Disassembly
Condenser lens (Out)
Condenser lens (Out) Ass'y

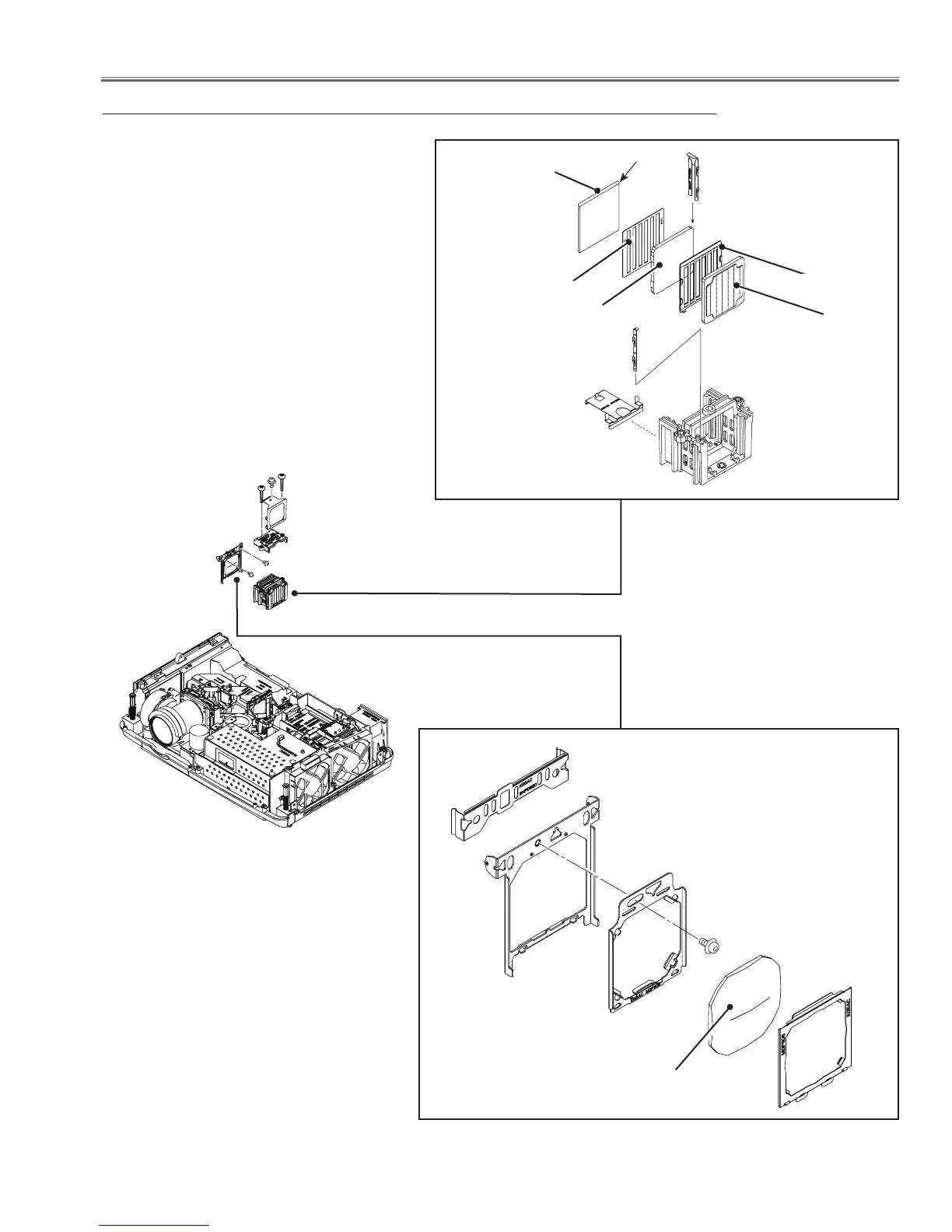

4. Integrator and Condenser out lens disassembly
Integrator lens-in
Integrator Lens Ass'y
M(2.5x6)
Fig.4
* Rugged surface fac-
ing to the lamp.
(M3x14)x2
Prism Beam Splitter
(PBS)
Integrator lens-out
* Rugged surface
facing to the PBS
(M2.5x6)x2
M(2.5x6)
Light mask PBS
Light mask Int
