-19-
Optical Parts Disassembly
Before taking this procedure, remove Cabinet Top and Main Board following to the “Mechanical Disassembly”.
Disassembly requires a 2.0mm hex wrench.
LCD Panel/
Prism Assy

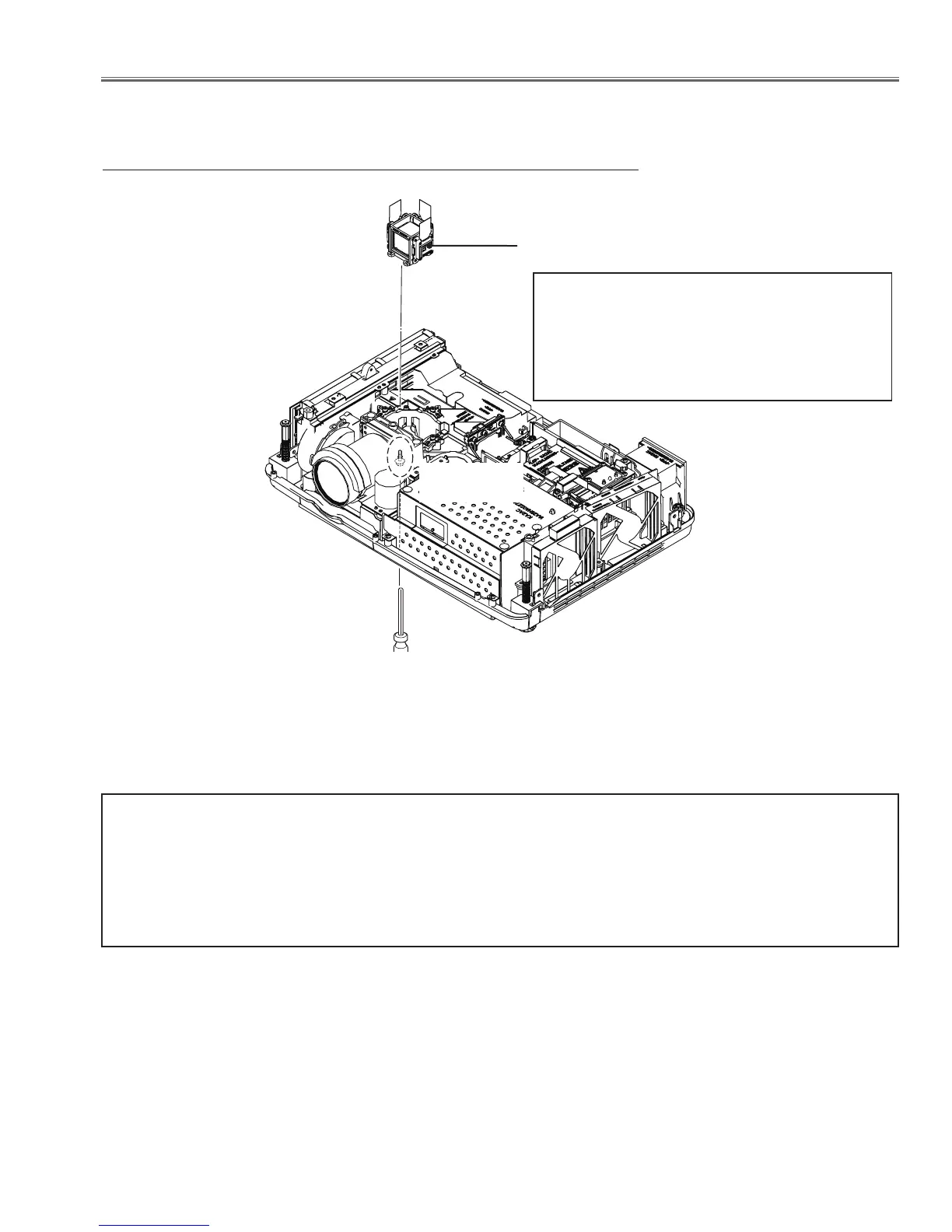

Fig.1
1. LCD Panel/Prism Assy removal
(M3x10)
(Bottom side)
IMPORTANT NOTICE on LCD Panel/Prism Assy Replacement
LCD panels used for this model can not be replaced separately. Do not disassemble the LCD Panel/Prism Assy.
These LCD panels are installed with precision at the factory. When replacing the LCD panel, should be replaced
whole of the LCD panels and prism assy at once.
When replacing the LCD Panel/Prism assy, take the optical and electrical adjustments following to the chapter
"Adjustment".
*Note on handling the LCD Panel/Prism Assy
LCD Panel, Polarized glasses are very sensitive parts.
Never touch or wipe the surface. When removing the
dust on the surface, use a commercial (inert gas) air
spray to remove them.
To Next Page
