-18-
Mechanical Disassembly
6. Cable Reforming

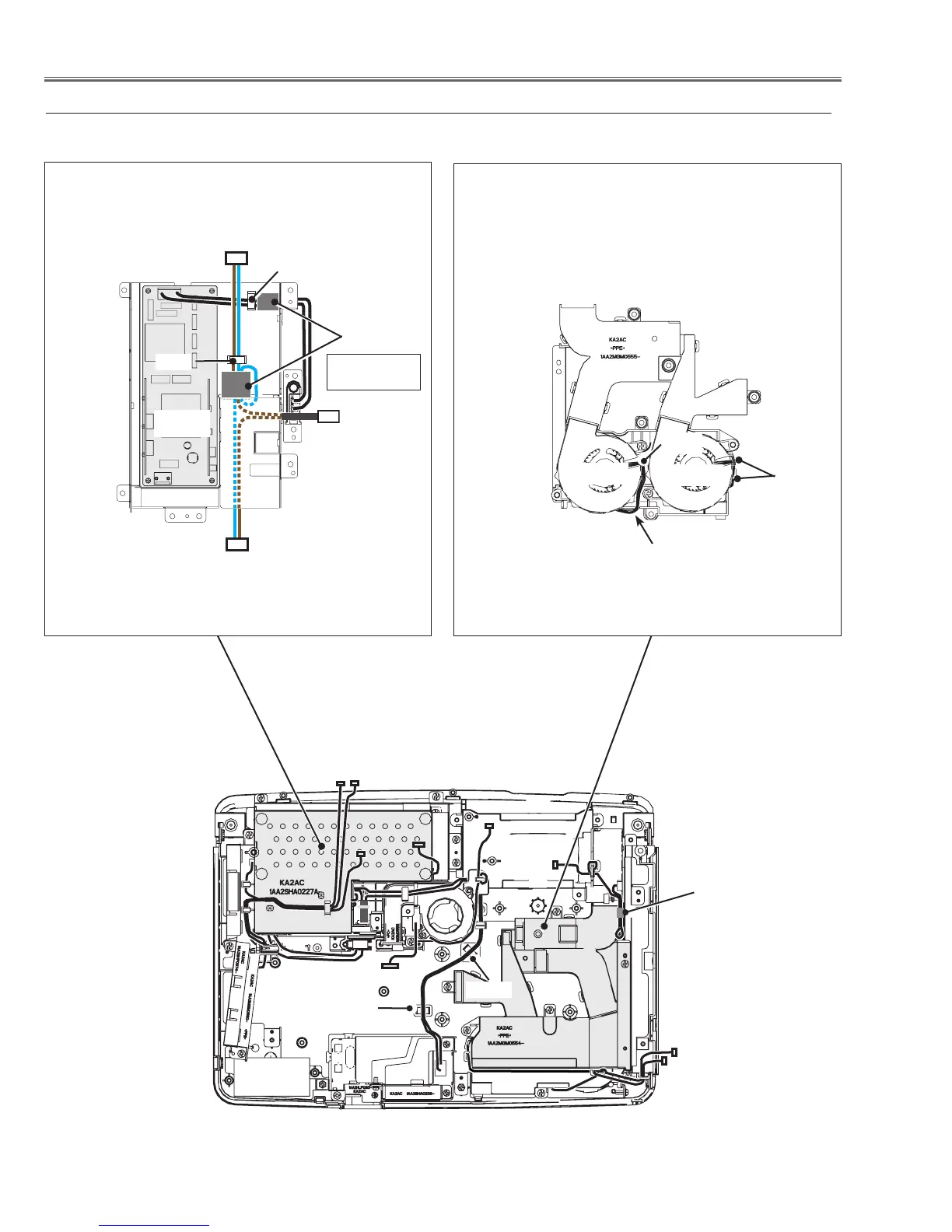

Reform cables as shown below.
Fig.6
Bottom view of the power box
Bottom view of the panel mounting duct top
To POWER BOARD
To FILTER BOARD
Hook
Hook
Ferrite core
Fix the ferrite
core here.
BALLAST
BOARD
SW902
Hook
Wires pass through
the slit.
Guide
Guide
Tape
Hook
FN902
FN903
