Sanyo PLC-XU4000 Service Manual

-23-
Optical Parts Disassembly
2
3
Fig.7
3
6

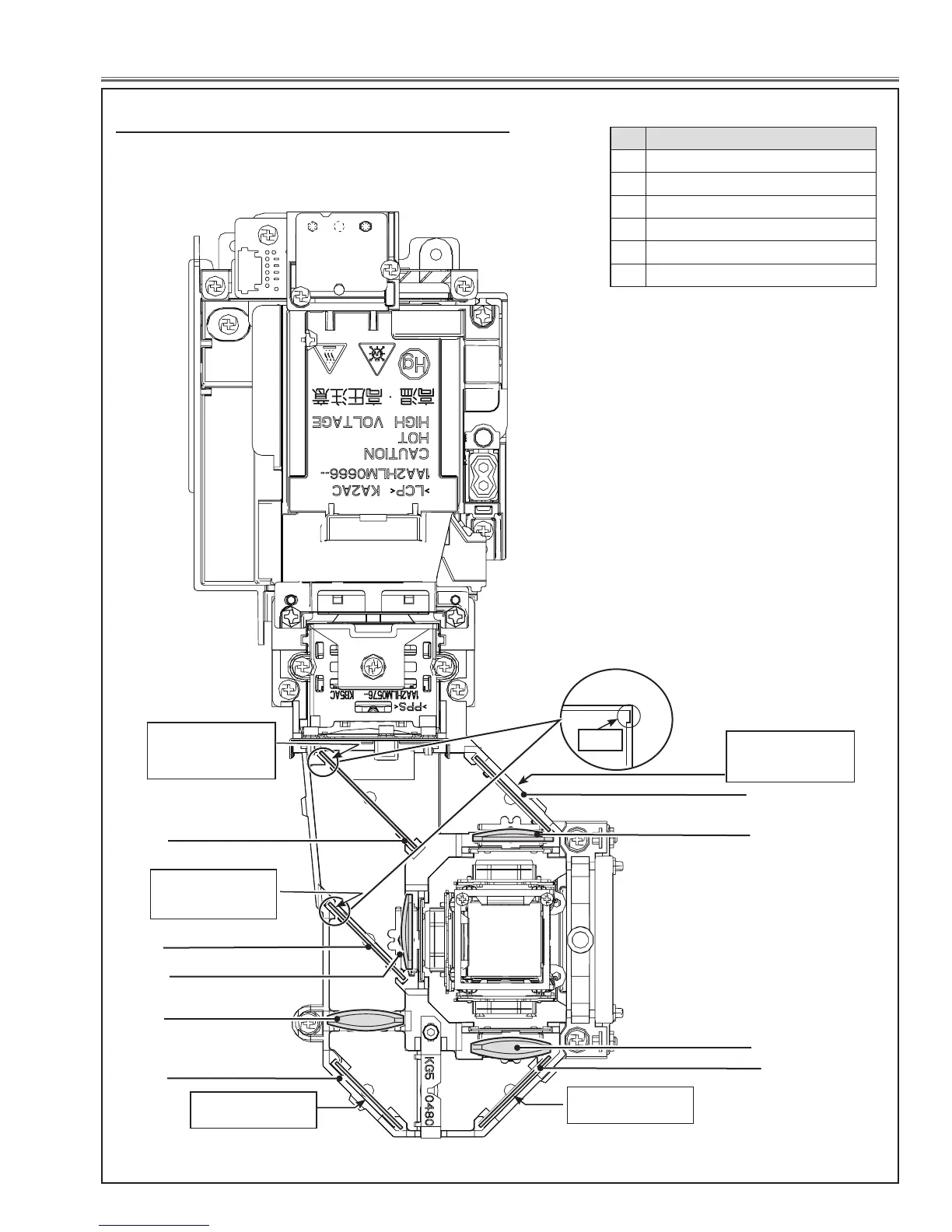

When mounting or assembling the optical parts in the opti-
cal unit, the parts must be mounted in the specified loca-
tion and direction as shown in figure below.
1
5
5
7. Locations and Directions
No. Parts Name
1 Dichroic mirror (B)
2 Dichroic mirror (G)
3 Condenser lens (G)
4 Mirror (R)
5 Relay lens (IN)
6 Mirror (B)
4
4
Marker comes this
side
Marker comes this
side
Marker comes this
side up
Marker comes this
side up
Marker
Marker comes this
side
