-26-
Optical Adjustments
Take step-z to step-c sequentially for the optical center adjust-
ment.
[Before Adjustment]
- Input a 100% of white raster signal.

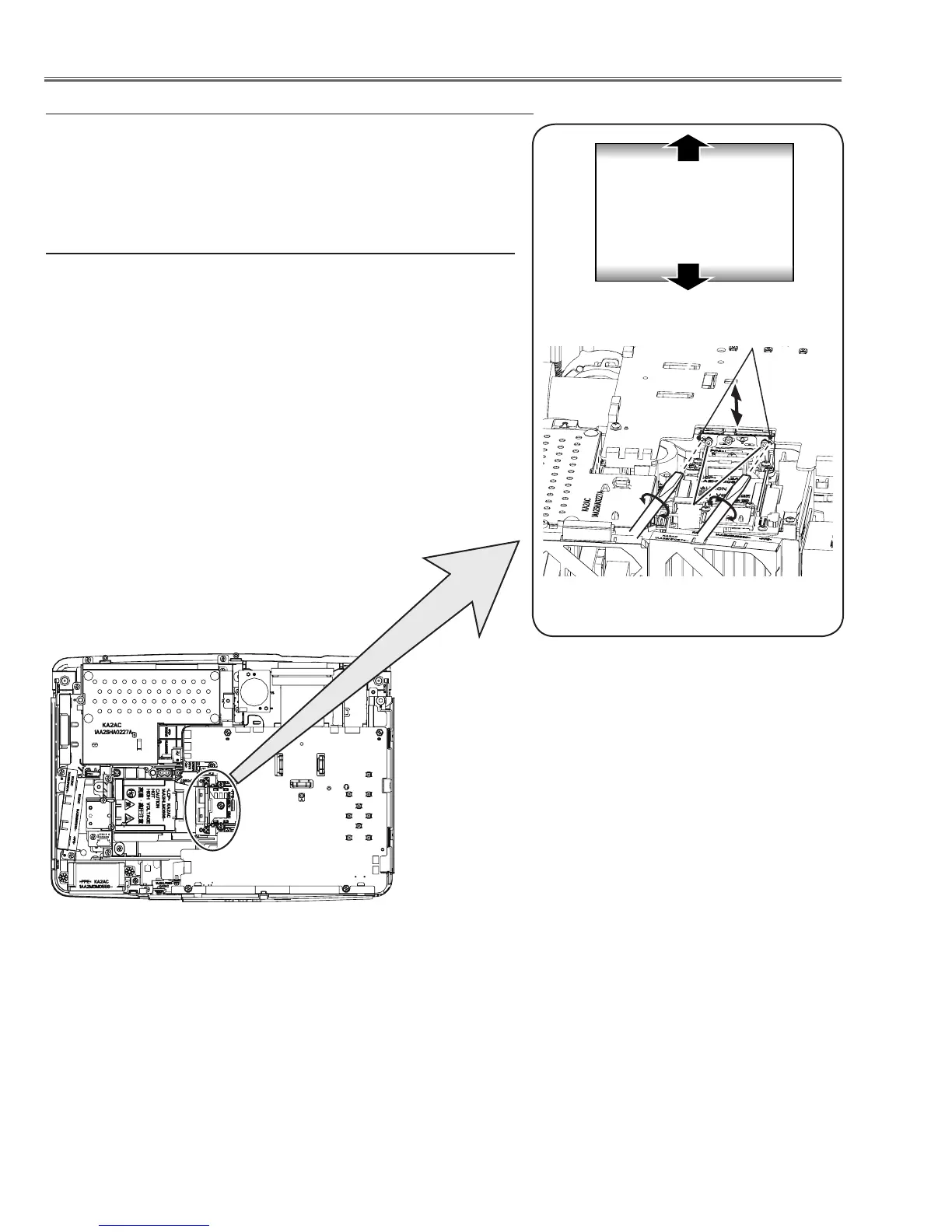

z Condenser lens adjustment-1
1 Loosen 2 screws A on the condenser lens (OUT) base and insert
a slot screwdriver into the slots B and turn it to disappear the color
shading on the top or bottom of the screen as shown in Fig.2.
2 Tighten screws A to fix the condenser lens (OUT) unit.
Optical center adjustment
Slot B
Fig.2
Moving of Slot B
White
A
To Next Page
