-22-

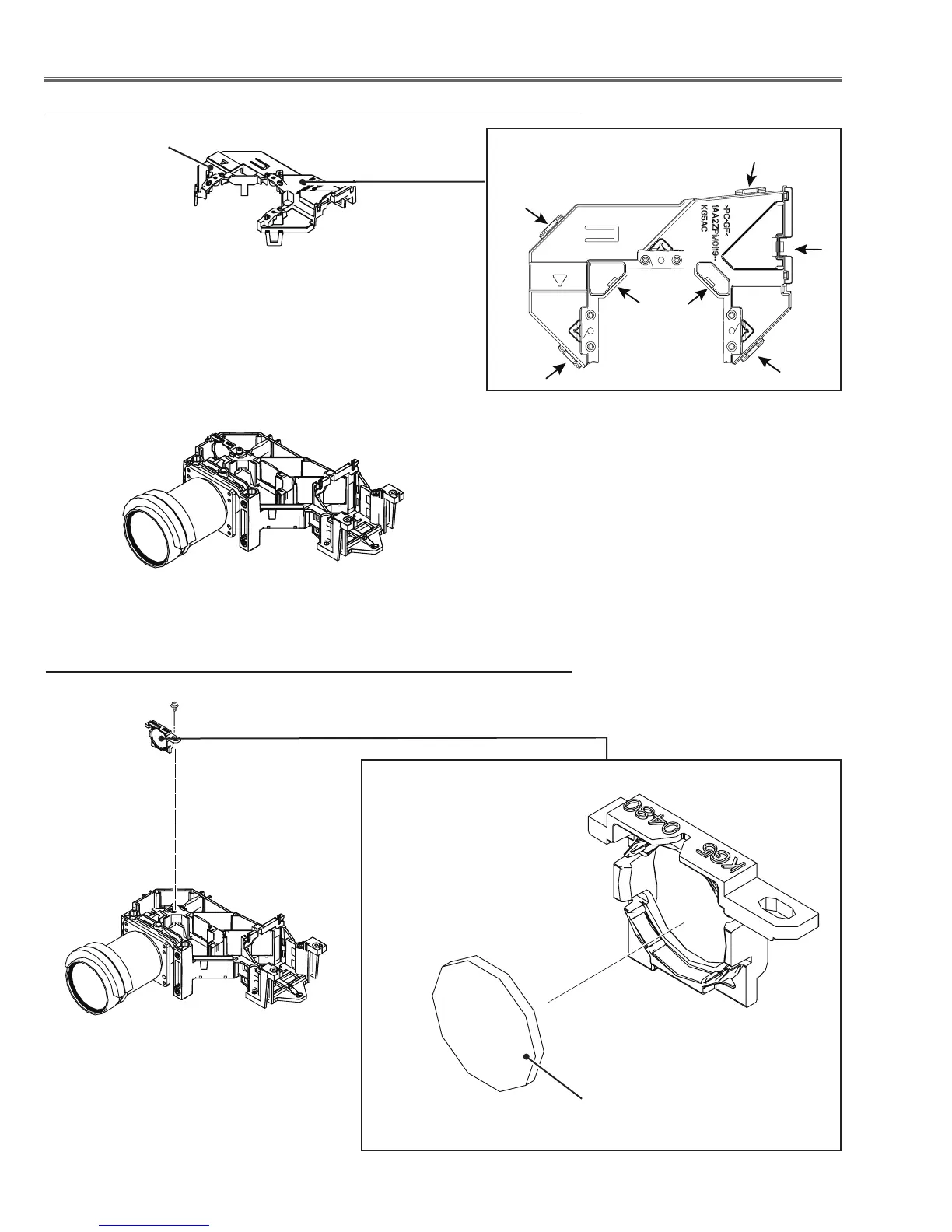

Optical Parts Disassembly

6. Relay lens removal

Relay lens

Relay lens Ass'y

Fig.6

M(2.5x6)

5. Optical unit top removal

Fig.5

Optical top

Unhook 7 hooks to remove the Optical Unit Top.

Service Manual1
Table of Contents2
Contents2
Safety Instructions3
- Safety Precautions3
- Product Safety Notice3
- Service Personnel Warning3
Specifications4
Circuit Protections5
- Thermal Switch5
- Lamp Cover Switch5
- Fuse5
- Warning Temperature and Power Failure Protection6
Maintenance7
- Replace the Filters7
- Resetting the Filter Counter7
- Cleaning8
- Cleaning the Projection Lens8
- Cleaning the Projector Cabinet8
Lamp Replacement9
- How to Check Lamp Used Time10
- Warning Message on the Non-Standard Lamp Used10
Security Function Notice11
- Resetting Procedure11
Standby Mode Notice12
Mechanical Disassembly13
Optical Parts Disassembly19
- Projection Lens Removal20
- Optical Unit Top Removal22
- Locations and Directions23
Adjustments24
- Adjustments after Parts Replacement24
- Note on Main Board Replacement24
Optical Adjustments25
- Contrast Adjustment25
- Optical Center Adjustment26
Electrical Adjustments29
- Service Adjustment Menu Operation29
- Circuit Adjustments30
- Test Points and Locations34
- Service Adjustment Data Table35
Chassis Block Diagrams52
- Chassis over View52
- System Control53
- Lamp Control54
- Audio Circuit55
- Power Supply & Protection Circuit56
- Fan Control Circuit57
Troubleshooting58
- Indicators and Projector Condition58
- No Power59
- No Picture60
- No Sound61
Control Port Functions62
Scaler I/O Port Functions (PW190)62
IC Block Diagrams63
Parts Location Diagrams69
Mechanical Parts List76
Electrical Parts List77
Diagrams & Drawings97
Parts Description and Reading in Schematic Diagram98
Schematic Diagrams99
Printed Wiring Board Drawings105
Note on Soldering110
