Sanyo PLC-XU4000 Service Manual

-17-
Mechanical Disassembly

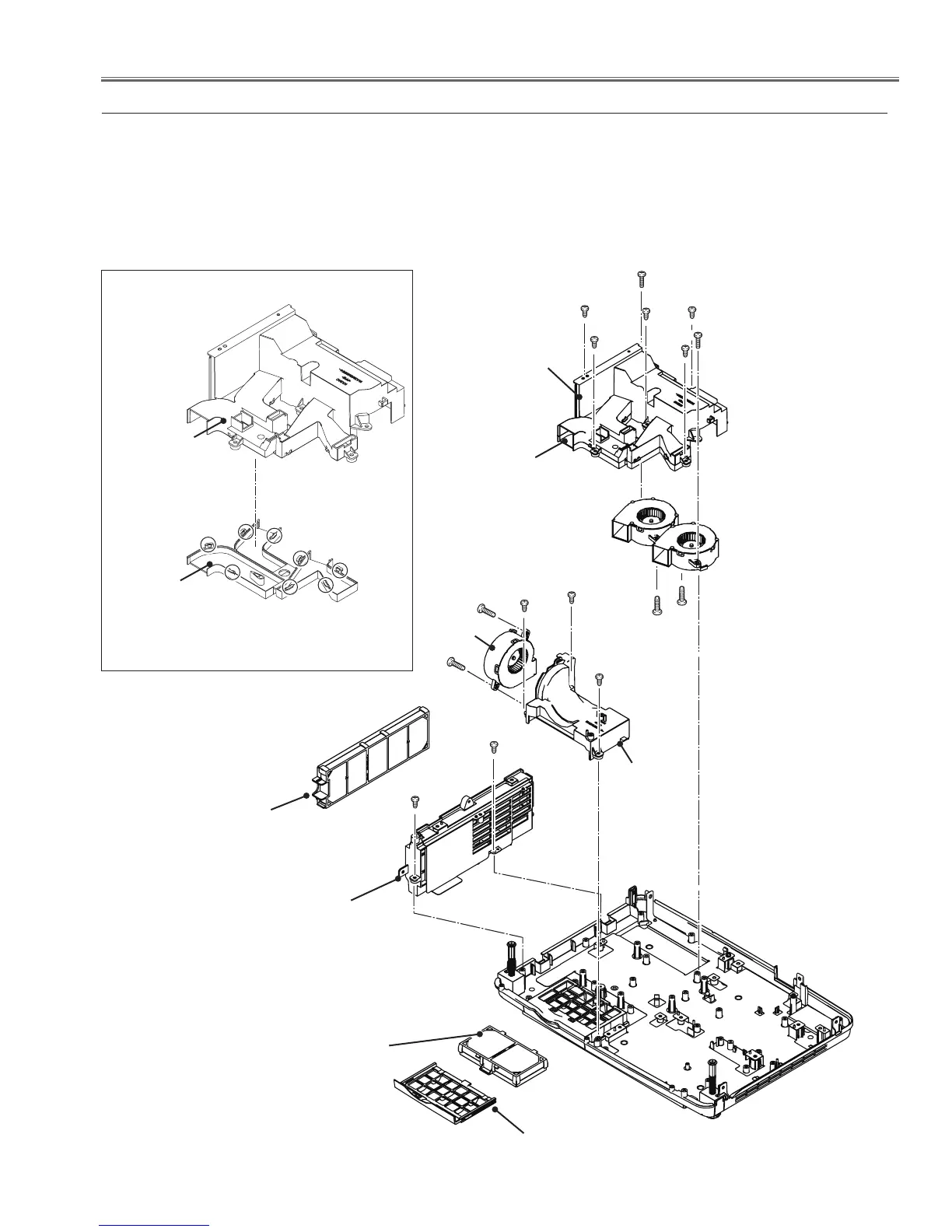

Fig.5
5. Mounting Duct, Fans(FN901, FN902, FN903) and Side Filter removal
Filter Box(side)
1. Remove 5 screws-A (T3x8) and 2 screws-B (T3x12) to remove the Panel Mouting Duct top.
2. Remove 2 screws-C (T3x12) to remove fans (FN902 and FN903). Remove the Panel Mounting
Duct bottom.
3. Remove 3 screws-D (T3x8) to remove the Filter Mounting Duct and remove 2 screws-E(T3x12) to
remove fan (FN901).
4. Take out the Filter Box(side), and then remove 2 screws-F(T3x8) to remove the Side Filter Holder.
5. Take off the Filter Box(bottom) and Filter cover(bottom).
FN901
FN903
Panel Mounting
Duct top
Panel Mounting
Duct bottom
B (T3x12)x2
A (T3x8)x5
Filter cover(bottom)
Side Filter Holder
Filter Box(bottom)
F
A
A
A
B
C
C
D
D
D
E
E
F
FN902
Filter
Mounting
Duct
Panel Mounting
Duct top
Panel Mounting
Duct bottom
Hooks
Unhook the 8 hooks to removal the
panel mounting duct top and bottom.
Panel mounting duct top and bottom removal
A
