Sanyo PLV-Z3000 Service Manual

- 20 -

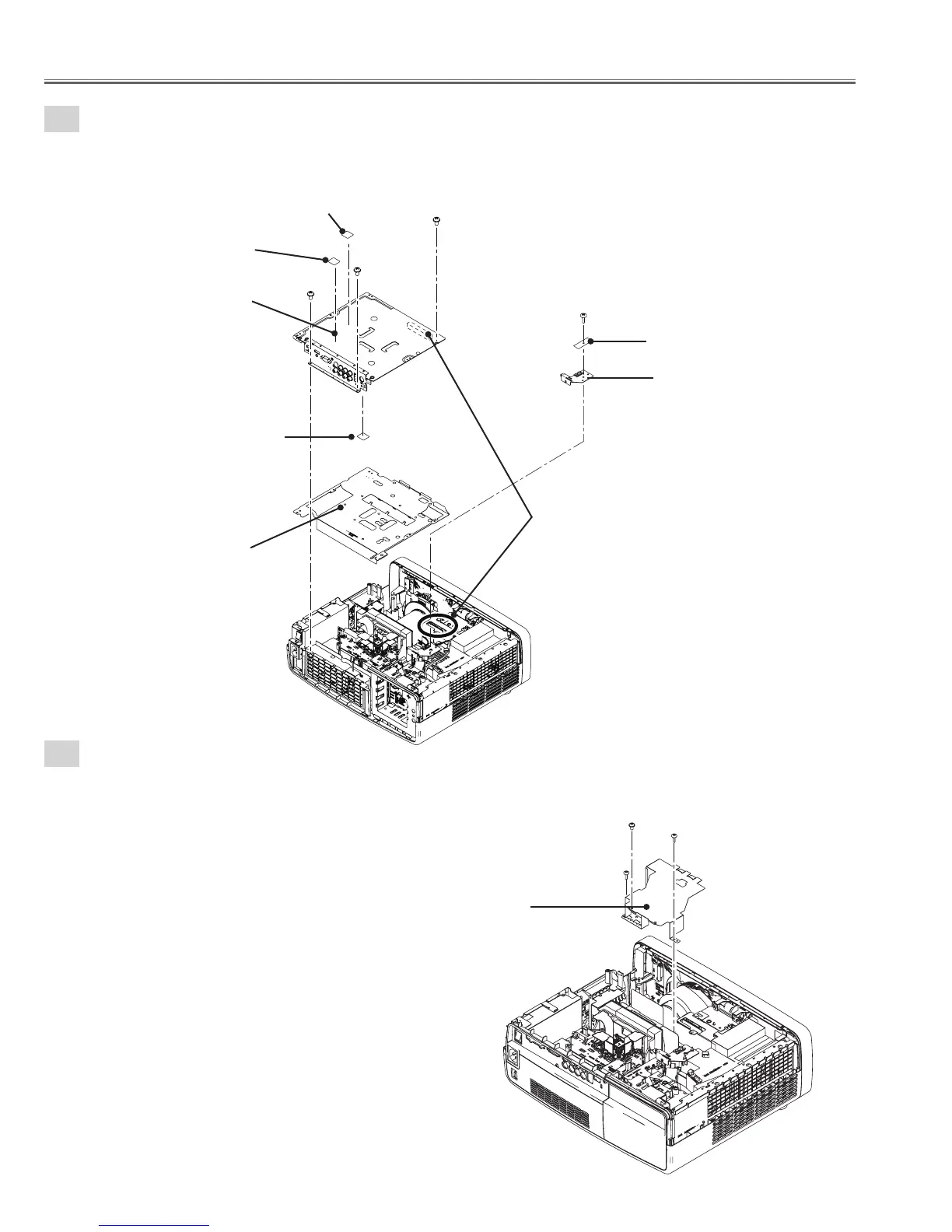

Mechanical disassemblies
6
Main PWB removal.
1. Remove the 3 screws-A (M3x6), remove the Main board and remove the Shield plate (Main board-BTM).
2. Remove the screw-B (T3x8), remove the Filter Net board and remove the Main board holder.
Shield plate
(Main board BTM)
Main board
Caoution;
Be carefull do not damage the
connector
Heat sink sheet (IC4401)
Caoution;
Do not lose the heat sink sheet.
A
A
A
B
Heat sink sheet (IC5201)
Heat sink sheet (IC301)
Filter Net board
Main board holder
7-1
Cover lens top removal.
1. Remove the screw-A (M3x6), 2 screwS-B (T3x8) and remove the
Shield plate (Cover lens).
A
B
B
Shield plate
(Cover Lens)

Sanyo PLV-Z3000 Specifications

General

Matrix size	0.7 \
Vertical scan range	50 - 100 Hz
Horizontal scan range	15 - 80 kHz
Projection technology	LCD
Contrast ratio (typical)	-
Screen size compatibility	40 - 300 \
Aspect ratio	16:9
RS-232 ports	1
Dimensions (WxDxH)	400 x 146 x 346 mm
Lamp type	UHP
Lamp power	165 W
Light source type	Lamp
Service life of light source	2000 h
Service life of light source (economic mode)	3000 h
Focus	Manual
Focal length range	22.3 - 45.3 mm
Noise level	19 dB
Dot clock scanning frequency	100 MHz
Serial interface type	RS-232
Component video (YPbPr/YCbCr) in	3

Weight and Dimensions

Weight	7500 g
